EMI-SS-2115AM-I datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> EMI-SS-2115AM-I

EMI-SS-2115AM-I: DescriptionElectromechanical Relay, DPST, Latched, 8A (Contact), 300VDC (Contact), AC/DC Output; CategoryMechanical and electronic products relay; File Size321KB，3 Pages; ManufacturerGood Sky Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

EMI-SS-2115AM-I Overview

Electromechanical Relay, DPST, Latched, 8A (Contact), 300VDC (Contact), AC/DC Output

EMI-SS-2115AM-I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Good Sky Electric Co., Ltd.
Reach Compliance Code	unknown
body width	12.6 mm
body height	15.8 mm
Body length or diameter	29 mm
Coil operating voltage (AC)	92 V
Coil release voltage (AC)	17.25 V
Coil resistance	8100 Ω
Maximum coil voltage (AC)	149.5 V
Nominal coil voltage	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated power R load	2000VA@250VAC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Contact (DC) maximum rated power R load	240W@300VDC
Contact (DC) maximum rated R load	8A@300VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	300 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
Insulation resistance	100000000 Ω
Number of terminals	8
operating hours	10 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	29mm x 12.6mm x 15.8mm
Guideline	TUV; UL; VDE
Relay action	LATCHED
Relay style	2 FORM A
Relay function	DPST
release time	5 ms
seal	FLUX-TIGHT
Terminal length	0.0032 inch
Termination type	SOLDER
weight	12.5 g

Preview

Download Datasheet

View All

EMI-2P

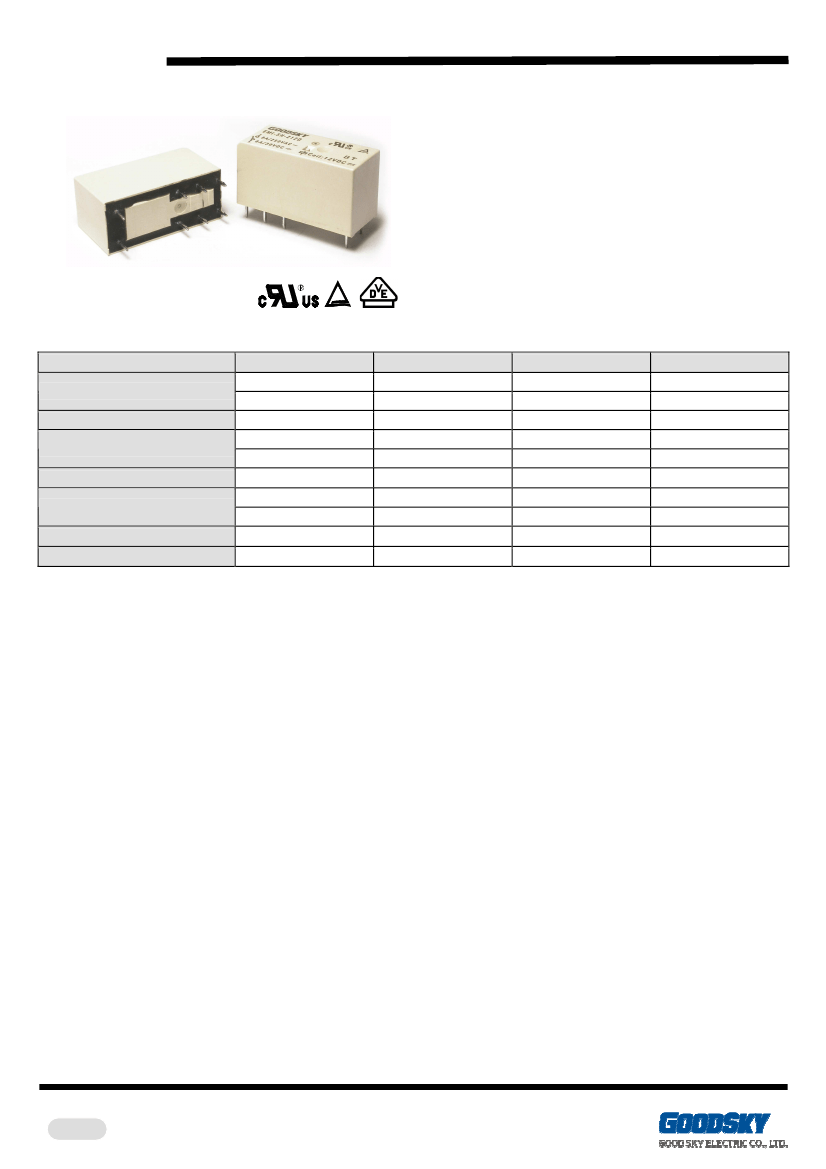

Main Feature

Low power consumption; AC/DC coil available.

Proper insulation distance with 5,000VAC dielectric

strength.

UL Class F insulation available.

In accordance with IEC 60335-1 and IEC 60730-1.

Halogen Free series available.

Comply with RoHS and REACH regulations

Contact Rating

EMI (DM/DB)

8A 250VAC

Rated Load (Resistive)

8A 30VDC

Rated Carrying Current

AC 250V

Max. Allowable Voltage

DC 300V

Max. Allowable Current

2,000VA

Max. Allowable Power Force

240W

Contact Material

Ag Alloy

Contact Form

DPST

Max Allowable Voltage: 300VDC@0.2A

Load Type

EMI (D)

8A 250VAC

8A 30VDC

AC 250V

DC 300V

2,000VA

240W

Ag Alloy

DPDT

EMI (AM/AB)

8A 250VAC

8A 30VDC

AC 250V

DC 300V

2,000VA

240W

Ag Alloy

DPST

EMI (A)

8A 250VAC

8A 30VDC

AC 250V

DC 300V

2,000VA

240W

Ag Alloy

DPDT

Application

Cooking Appliance, Audio Equipment, Domestic Appliance

and Controlling Equipment…etc.

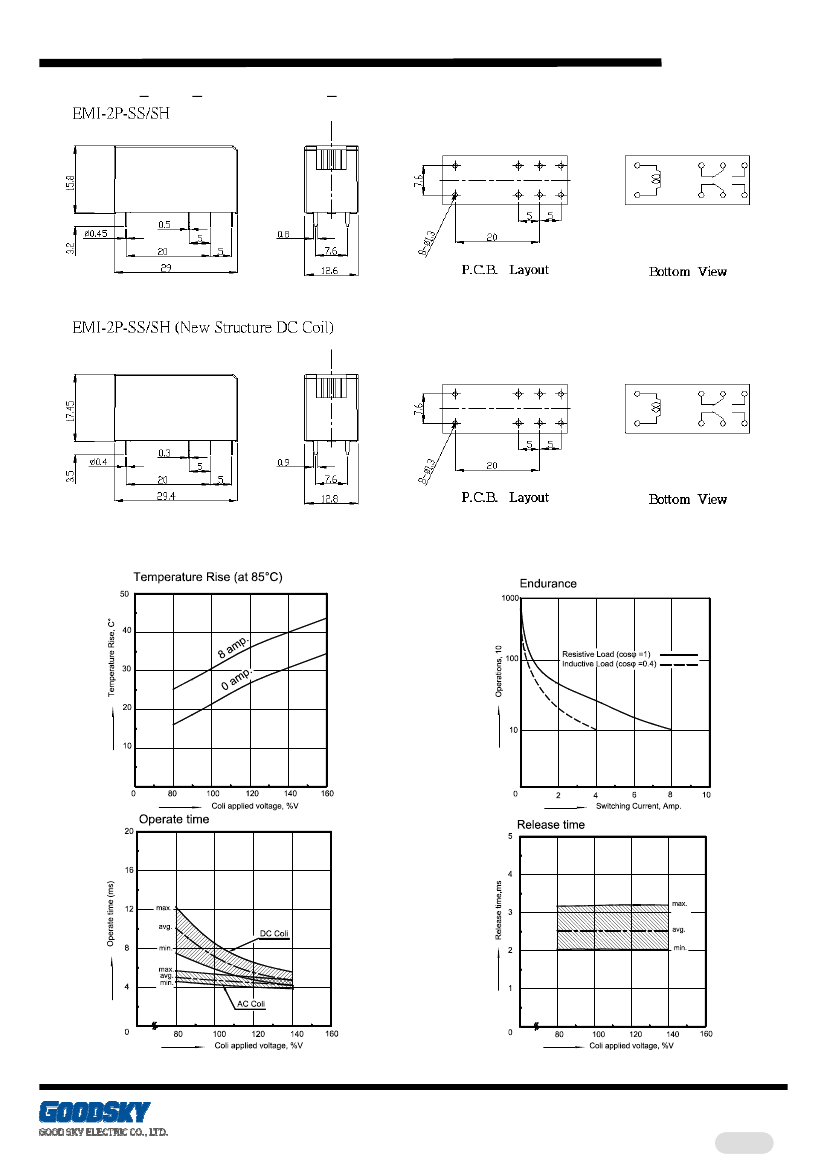

Performance (at Initial Value)

Contact Resistance…….100 mΩ Max.@1A,6VDC

Operate Time……………10 mSec. Max. (DC coil only)

Release Time……………..5 mSec. Max. (DC coil only)

Dielectric Strength:

Between Coil & Contact....... 5,000VAC at 50/60 Hz

for one minute

Between Contacts ............... 1,000VAC at 50/60 Hz

for one minute

Surge Strength: ................... 10,000V (between coil

& contact 1.2x50µSec.)

Insulation Resistance .......... 100MΩ Min at

500VDC

Max. On/Off Switching:

Electrical .............................. 20 Cycles per Minute

Mechanical .......................... 300 Cycles per Minute

Temperature Range ............ -40~+85

°C

Humidity Range ................... 45~85% RH.

Coil Temperature Rise ........ 30

°C

Max.

Vibration:

Endurance ........................... 10 to 55 Hz dual

amplitude width 1.5 mm

Error Operation.................... 10 to 55 Hz dual

amplitude width 1.5 mm

Shock:

Endurance ......................... 1,000 m/S

Error Operation.................... 100 m/S

Life Expectancy:

Electrical .............................. 10 Operations at

Rated Resistive Load

Mechanical .......................... 10 Operations at

No load condition

Weight ................................. About 12.5 g

Accessories & Sockets

PI-50BE ............................... See Page 179

PI-50BE/3 ............................ See Page 179

PI-50-0................................. See Page 181

Safety Standard & File Number

UL & C-UL…………………….E141060

TÜV……………………………R50008958

VDE……………………………40009648

CQC……………………………02001002511
