3.2x1.6mm SMD CHIP LED LAMP
KP-3216SURCK HYPER RED
Features
!
3.2mmx1.6mm SMT LED, 1.1mm THICKNESS.
!
LOW POWER CONSUMPTION.
!
WIDE VIEWING ANGLE.
!
IDEAL FOR BACKLIGHT AND INDICATOR.
!
VARIOUS COLORS AND LENS TYPES AVAILABLE.
!
PACKAGE
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
: 2000PCS / REEL.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0113
APPROVED:J.Lu
REV NO: V.1
CHECKED:
DATE: SEP/07/2001
DRAWN: S. H. CHEN
PAGE: 1 OF 4
Selection Guide
Iv (m c d )
@ 20 m A
Min .
KP-3216SURCK
HYPER RED( InGaAlP )
WATER CLEAR
50
Ty p .
150
V i ew i n g
An g l e
2θ1/2
120°
Par t No .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Ty p .
640
6 30
28
35
1.95
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H y p e r R ed
17 0
30
18 5
5
-40
°
C To +85
°C
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: KDA0113
APPROVED:J.Lu
REV NO: V.1
CHECKED:
DATE: SEP/07/2001
DRAWN: S. H. CHEN
PAGE: 2 OF 4

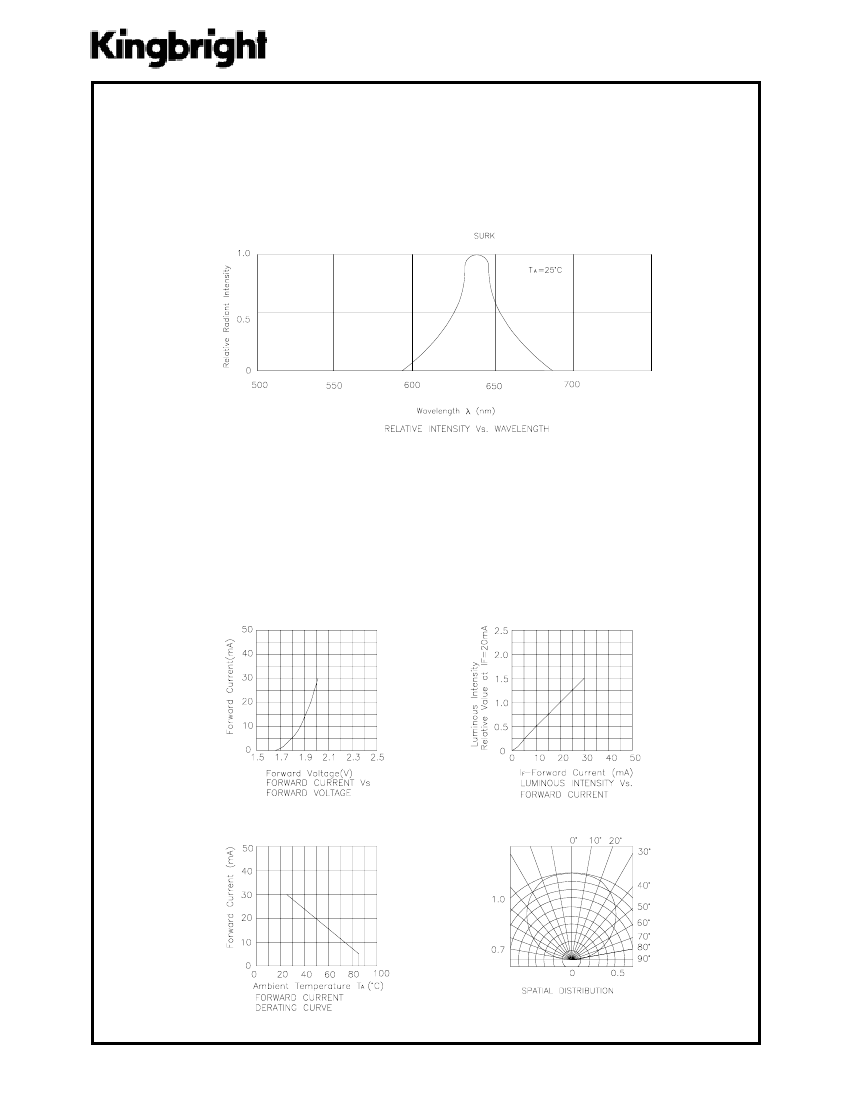

Hyper Red KP-3216SURCK
SPEC NO: KDA0113
APPROVED:J.Lu
REV NO: V.1
CHECKED:
DATE: SEP/07/2001
DRAWN: S. H. CHEN
PAGE: 3 OF 4
KP-3216SURCK

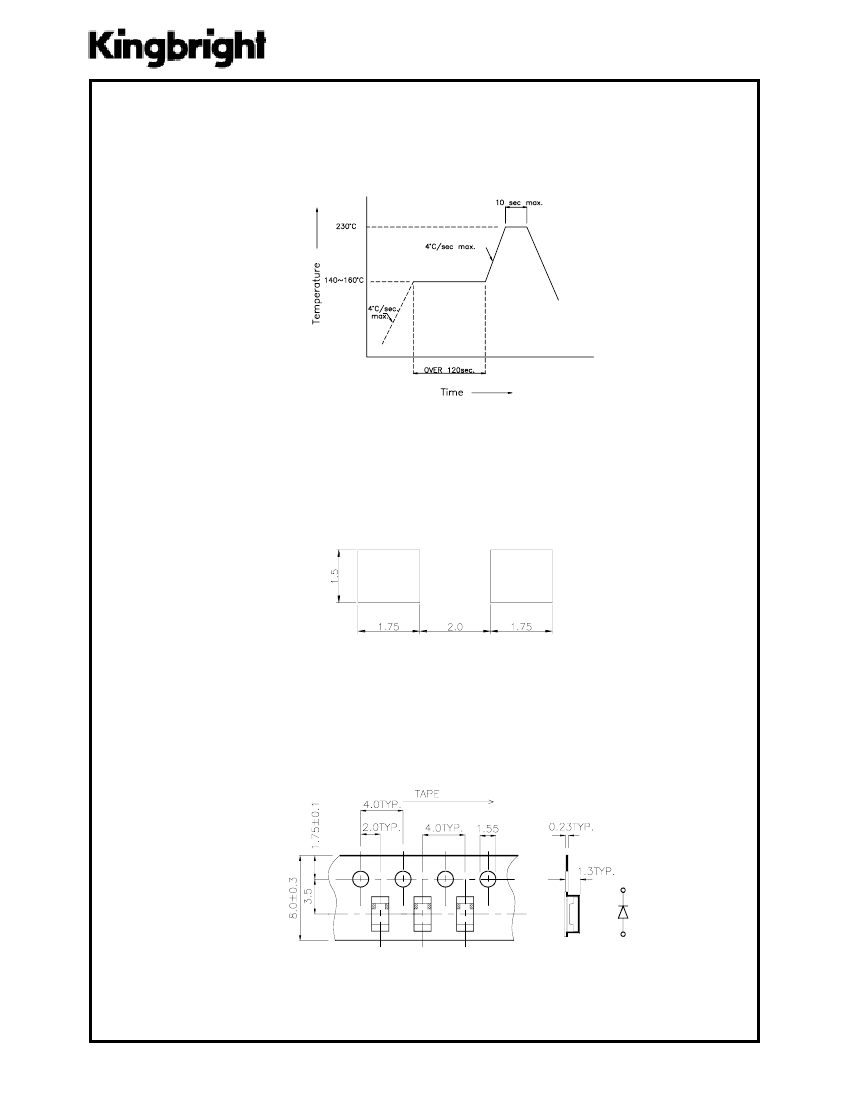

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: KDA0113
APPROVED:J.Lu
REV NO: V.1
CHECKED:
DATE: SEP/07/2001
DRAWN: S. H. CHEN
PAGE: 4 OF 4
