2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Rated To 10 Watts Up To 7.5 GHz
TECHNICAL DATA SHEET
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Rated To 10 Watts Up To 7.5 GHz
Configuration
Design
Connector 1
Connector 2
Fixed, Bidirectional Attenuator
7/16 DIN Male
7/16 DIN Female
PE7040-2
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
Frequency 2
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 7.5
50
2
10
1.45:1
DC to 4
1.25:1
± 0.6
4 to 7.5
1.45:1
± 0.6
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
.
3.48 [88.39]
1.25 [31.75]
Connector 1
Type
Hex Size, in.
Torque, ft-lbs [Nm]
7/16 DIN Male
1 1/4
18.417 [24.97]
Connector 2
Type
7/16 DIN Female
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Rated To 10 Watts Up To 7.5 GHz
PE7040-2
PE7040-2 REV
1
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Rated To 10 Watts Up To 7.5 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE7040-2
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Rated To 10 Watts Up To 7.5 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Rated To 10 Watts Up To 7.5 GHz
PE7040-2
URL:
http://www.pasternack.com/2db-fixed-7-16-male-7-16-female-10-watts-attenuator-pe7040-2-p.aspx
PE7040-2 REV
2
PE7040-2

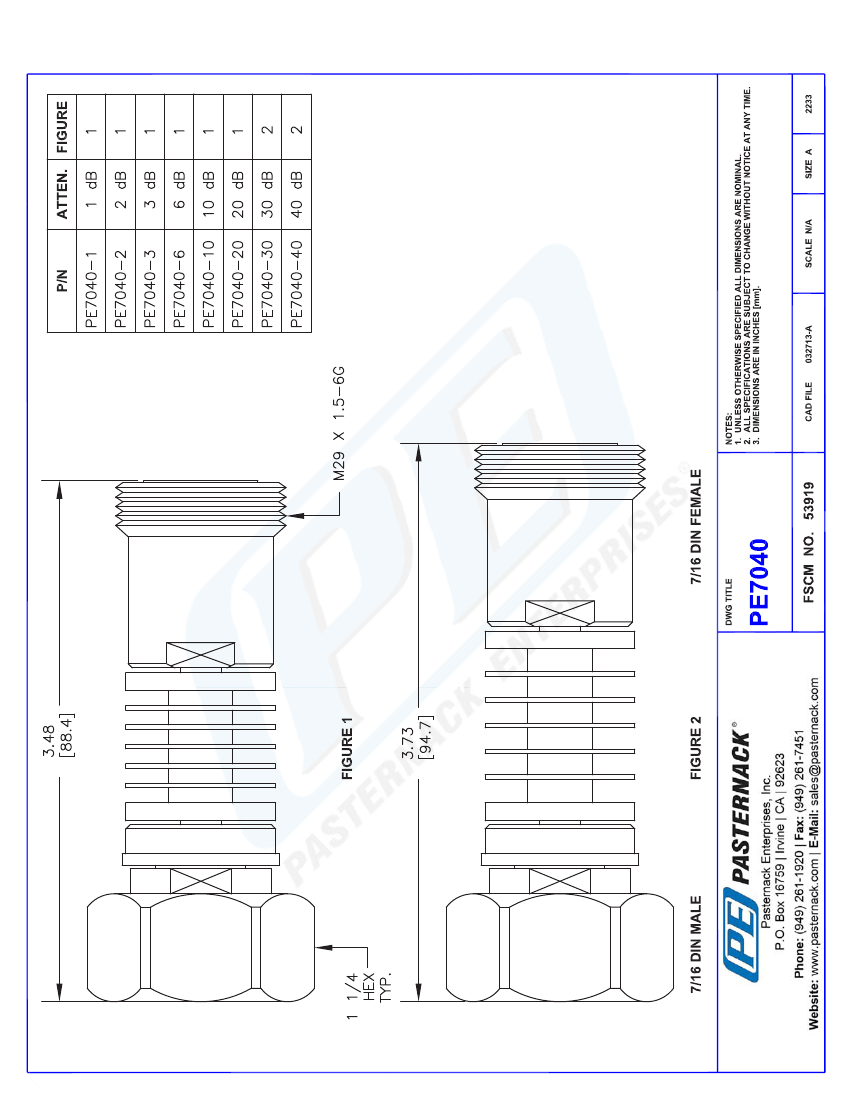

CAD Drawing
2 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Rated To 10 Watts Up To 7.5 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE7040-2 REV
3
