6 dB Fixed Attenuator, TNC Male To TNC
Female Rated To 5 Watts Up To 18 GHz
TECHNICAL DATA SHEET
6 dB Fixed Attenuator, TNC Male To TNC Female Rated To 5 Watts Up To 18 GHz
Configuration
Design
Connector 1
Connector 2
Fixed, Bidirectional Attenuator
TNC Male
TNC Female
PE7052-6
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 18
50
6
5
1.35:1
DC to 18
1.35:1
0.3
Mechanical Specifications
Temperature
Size
Length, in [mm]
Width, in [mm]
.
2.06 [52.32]
0.625 [15.88]
Connector 1
Type
Connector Specification
TNC Male
MIL-STD-348
Connector 2
Type
Connector Specification
TNC Female
MIL-STD-348
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/6db-fixed-tnc-male-tnc-female-5-watts-attenuator-pe7052-6-p.aspx
6 dB Fixed Attenuator, TNC Male To TNC Female Rated To 5 Watts Up To 18 GHz from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
PE7052-6 REV
1
PE7052-6

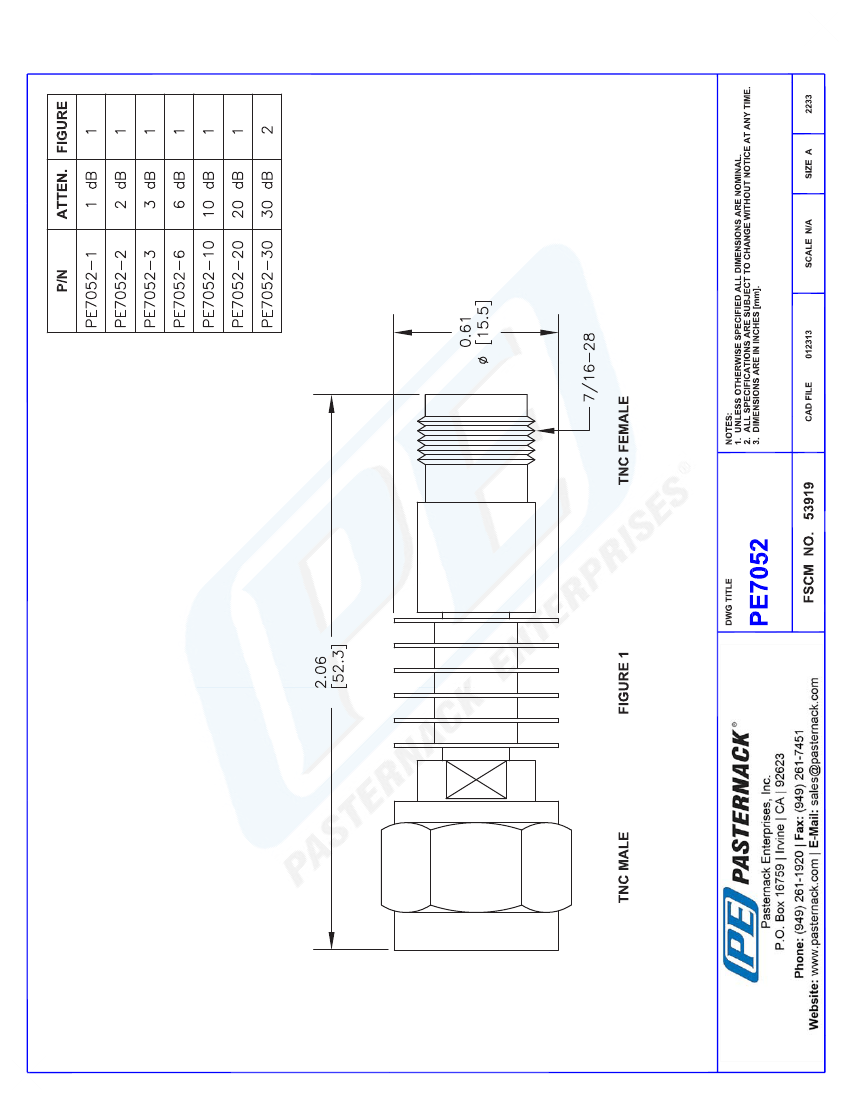

CAD Drawing
6 dB Fixed Attenuator, TNC Male To TNC Female Rated To 5 Watts Up To 18 GHz
© 2012 Pasternack Enterprises All Rights Reserved
PE7052-6 REV
2
