NSD03A20TRRH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> NSD03A20TRRH

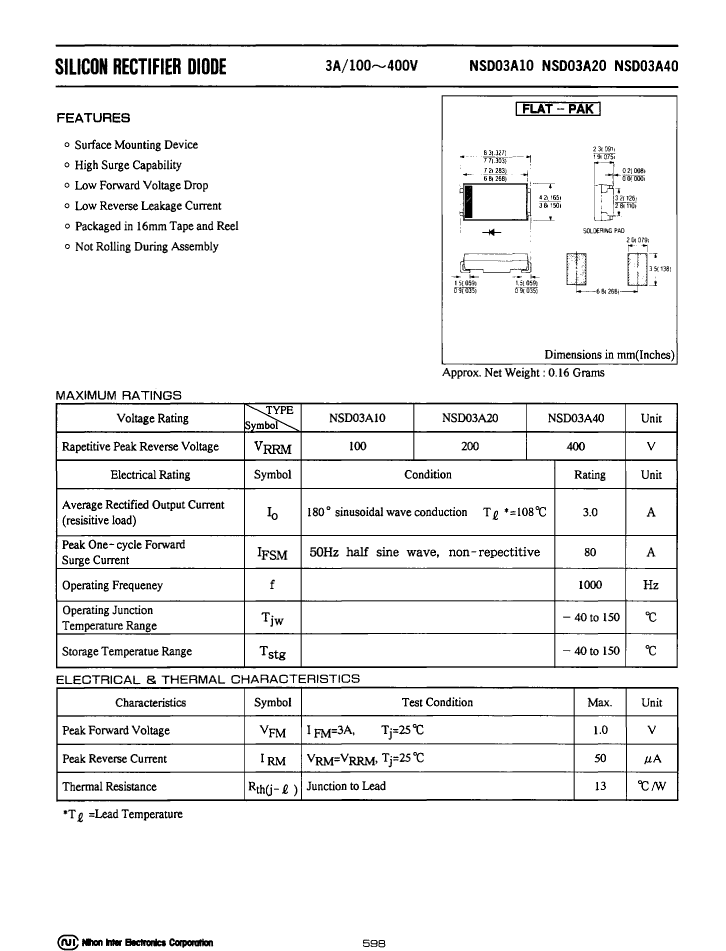

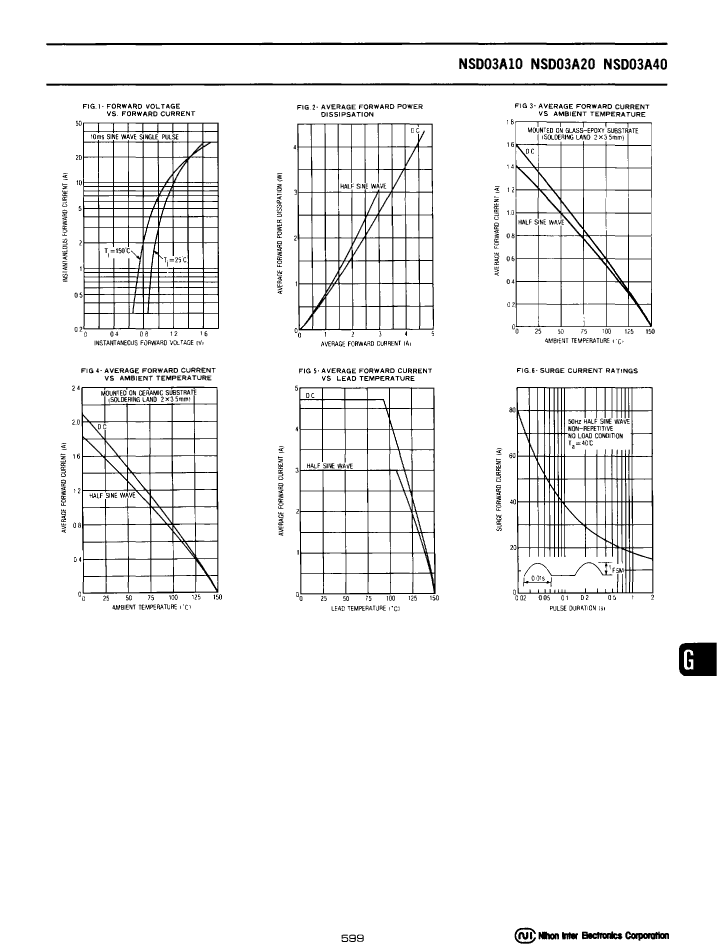

NSD03A20TRRH: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, FLATPAK-2; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

NSD03A20TRRH Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, FLATPAK-2

NSD03A20TRRH Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	50 µA
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

NSD03A20TRRH Related Products

	NSD03A20TRRH	NSD03A10TRLH	NSD03A10TRRH	NSD03A40TRLH	NSD03A40TRRH	NSD03A20TRLH
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, FLATPAK-2	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, FLATPAK-2	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, FLATPAK-2	Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, FLATPAK-2	Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, FLATPAK-2	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, FLATPAK-2
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknow	unknow	unknow	unknow
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A	80 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	100 V	100 V	400 V	400 V	200 V
Maximum reverse current	50 µA	50 µA	50 µA	50 µA	50 µA	50 µA
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
