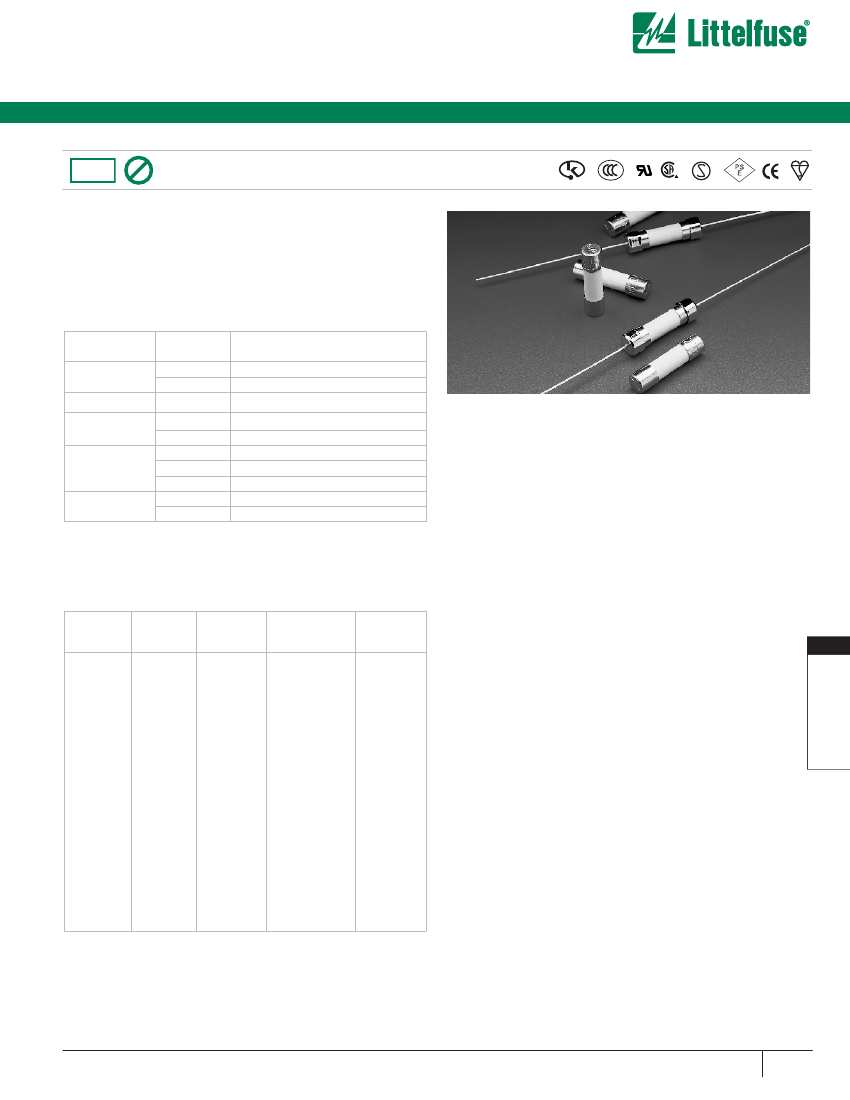

Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Time Lag Fuse (Slo-Blo
®
Fuse) 215P Series
®
®
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses.
• Available in Cartridge and Axial Lead Form.
• Available in ratings of .125 to 12 amperes.
• High breaking capacity.
• RoHS compliant and Lead-Free
• Improved I
2
t
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
400%
Ampere
Rating
.1-6.3
8-12
.1-12
.1-.8
1-12
.1-.8
1– 3.15
4– 6.3
.1-.8
1-12
Opening
Time
60 minutes,
Minimum
30 minutes,
Minimum
30 minutes,
Maximum
.25 sec.,
Min.;
80 sec.
Max.
.75 sec.,
Min.;
80 sec.
Max.
.05 sec.,
Min.;
5 sec.
Max.
.095 sec.,
Min.;
5 sec.
Max.
.150 sec.,
Min.;
5 sec.
Max.
.005 sec.,
Min.;
.15 sec.,
Max.
.010 sec.,
Min.;
.15 sec.,
Max.
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
1000%
cycles –65°C to +125°C)
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
INTERRUPTING RATING:
1500 amperes @ 250VAC,
0.7-0.8 power factor.
PHYSICAL SPECIFICATIONS:
Material:
Body: Ceramic
ORDERING INFORMATION:
Cartridge
Catalog
Number
215.125P
215.160P
215.200P
215.250P
215.315P
215.400P
215.500P
215.630P
215.800P
215
001.P
215
1.25P
215
01.6P
215
002.P
215
02.5P
215
3.15P
215
004.P
215
005.P
215
06.3P
215
008.P
215
010.P
215
012.P
Ampere
Rating
.125
.160
.200
.250
.315
.400
.500
.630
.800
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8
10
12
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold Ohms
7.585
7.100
1.840
1.240
0.880
0.583
1.168
0.720
0.468
0.152
0.107
0.071
0.057
0.039
0.028
0.019
0.015
0.011
0.009
0.007
0.006
Nominal
Melting I
2
t
A
2
Sec.
0.033
0.046
0.341
0.545
0.974
1.324
0.424
0.633
0.974
2.360
4.240
8.120
14.760
32.050
89.970
37.684
80.675
129.022
204.001
351.037
515.500
w w w. l i t t e l f u s e . c o m
427
AXIAL LEAD AND
CARTRIDGE FUSES
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Filler: Sand (500mA – 12A)
Terminal Strength:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
11
Axial Lead and Cartridge Fuses
Designed to IEC Standard
RoHS
Pb
5 x 20 mm
Time Lag Fuse (Slo-Blo ) Fuse 215P Series
®
®
®
Agency Approvals
Agency Approvals
Certificate No.
Cartridge
NBK250702-E10480
NBK250702-E10480
Leaded
NBK250702-E10480
NBK250702-E10480
2002010207007593
2005010207145714
SU05001-2011
SU05001-2012
Pending
Ampere Range
0215
000P
A & C 1A – 5A
E
6.3A – 12A
B & D 1A – 5A
F
6.3A -12A
4A – 6.3A
1A – 3.15A
1A – 3.15A
4A – 10A
12A
20+0.5
5.2+0.1
-0.2
5.1+0.6
5.1+0.6
Certificate No.
Certificate No.
0215.200 XEP
to
0215.800 XEP
40
22.5 MAX
6.0 MAX
0.65
®
Recognised File No. E10480
Guide No.
JDYX2
®
File No.
Acc. Class No.
Licence No.
File No.
029862
LR1422-30
KM41462
606726
403906
501856
0147100
125mA – 12A
0215001.XEP
to
0215012.XEP
40
22.5 MAX
5.8 MAX
200mA – 10A
125mA, 160mA
200mA –
800mA, 8A,10A
1A-3.15A
4A-6.3A
200mA – 8A
10A*
12A*
125mA – 12A
0.65*
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
D
V
E
Licence No.
Licence No.
40013521
40016610

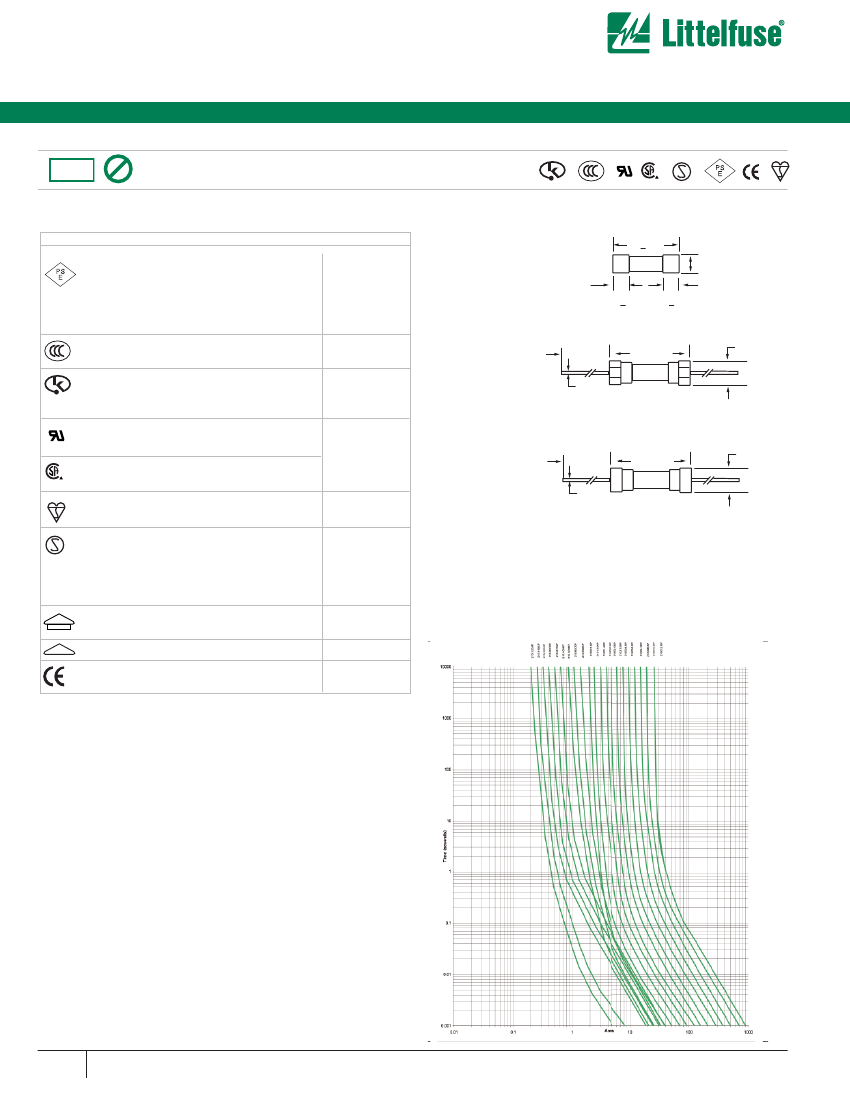

Average Time Current Curves
VDE
*Approval for cartridge versions only
428
w w w. l i t t e l f u s e . c o m
