Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 80V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | SENSITRON |
| Parts packaging code | TO-220AC |
| package instruction | R-PSFM-T2 |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | HIGH RELIABILITY, FREE WHEELING DIODE |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.58 V |
| JEDEC-95 code | TO-220AC |
| JESD-30 code | R-PSFM-T2 |
| Humidity sensitivity level | 1 |
| Maximum non-repetitive peak forward current | 270 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 8 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 80 V |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
• • • ! "#
+
# #
!
!
% & '(&)*+,,---. &

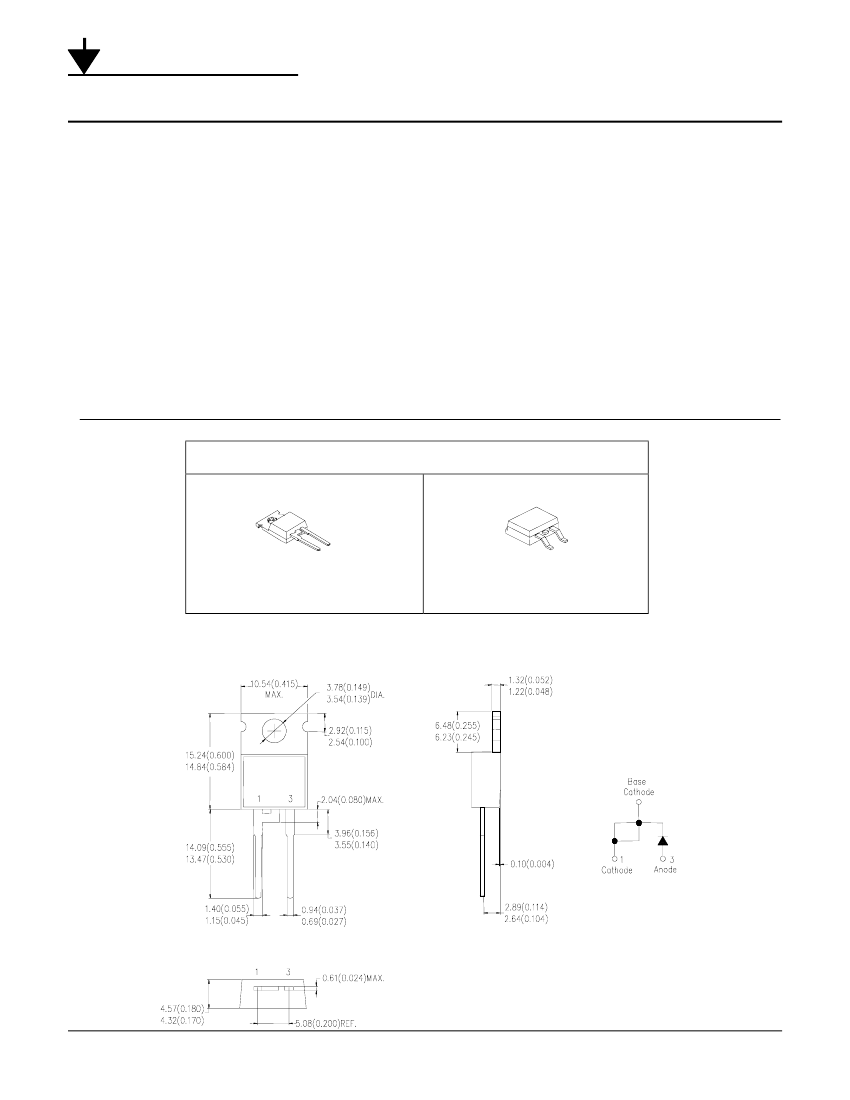

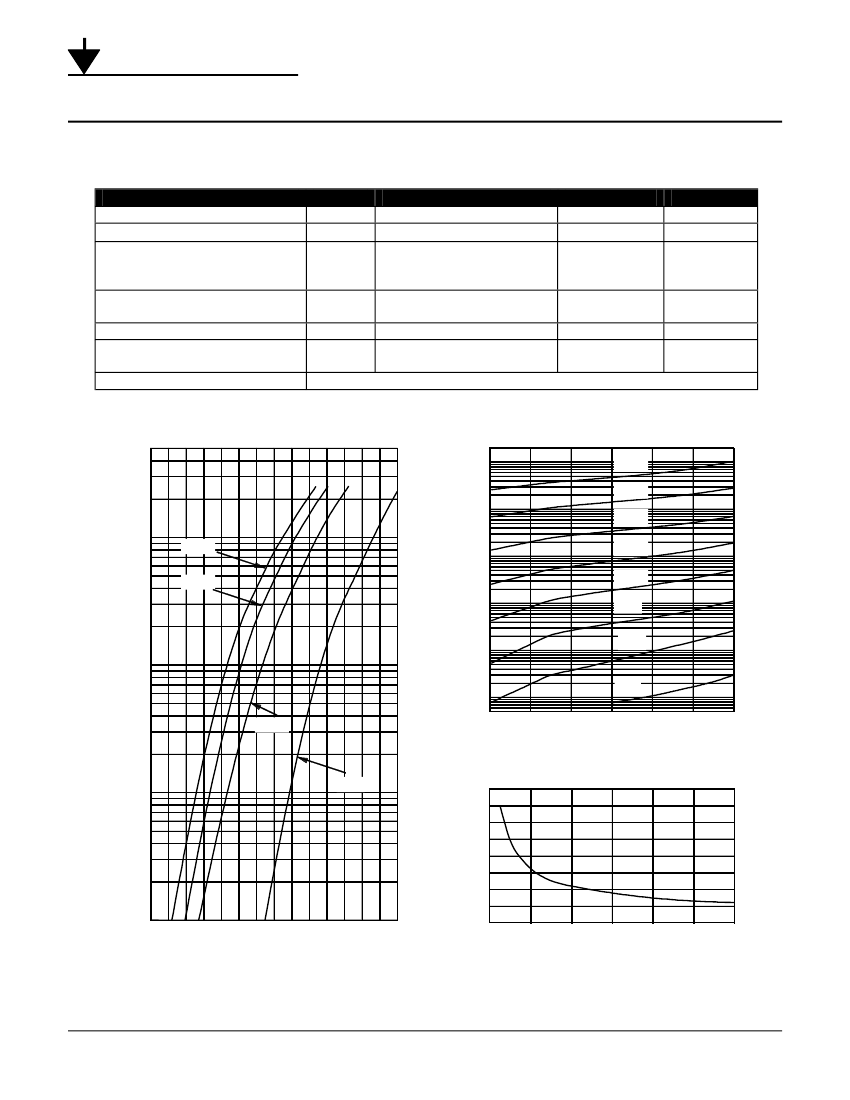

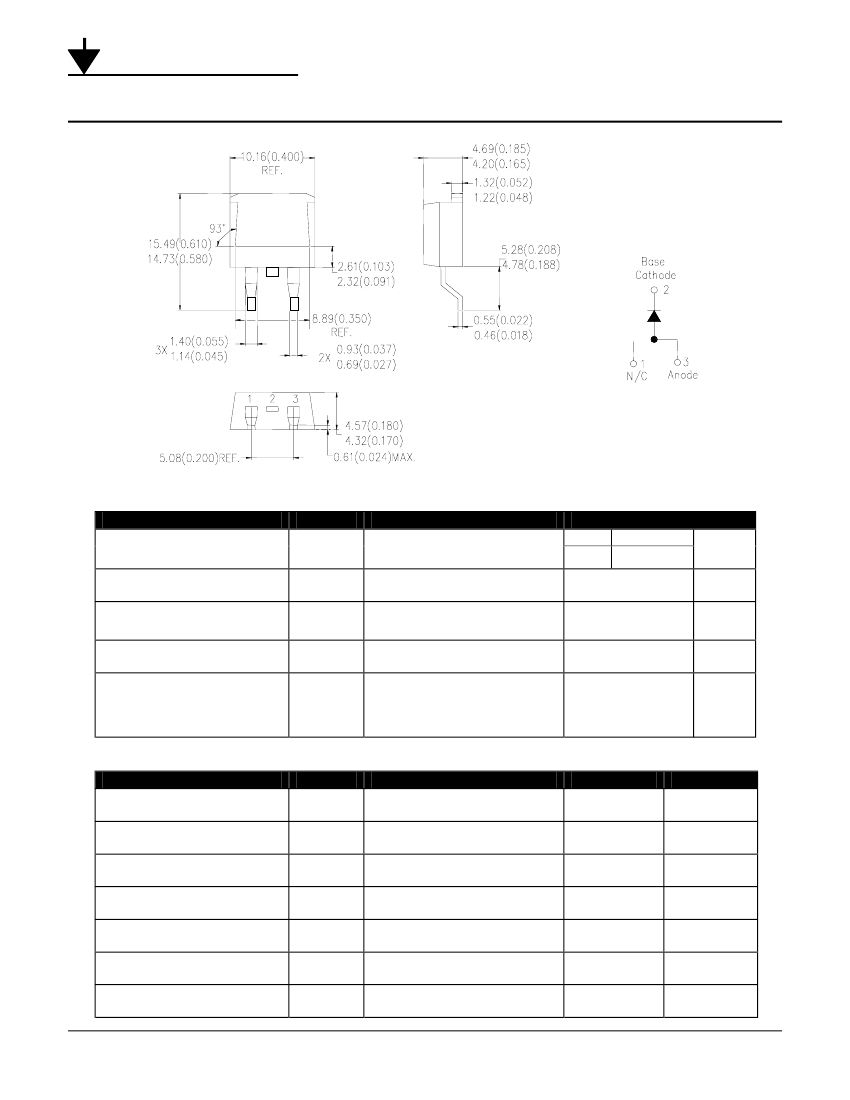

./0•12&%#
%3 &
./0•
| 8TQ080 | 8TQ100-G | 8TQ100 | 8TQ080S | 8TQ080S-G | 8TQ100S | 8TQ100S-G | 8TQ080-G | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 80V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, Silicon, TO-220AC, PLASTIC PACKAGE-2 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 80V V(RRM), Silicon, PLASTIC, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, Silicon, PLASTIC, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, PLASTIC, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, Silicon, PLASTIC, D2PAK-3 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, Silicon, TO-220AC, PLASTIC PACKAGE-2 |
| Is it lead-free? | Contains lead | Lead free | Contains lead | Contains lead | Lead free | Contains lead | Lead free | Lead free |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | conform to | incompatible | conform to | conform to |
| Maker | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON |
| Parts packaging code | TO-220AC | TO-220AC | TO-220AC | TO-263 | TO-263 | TO-263 | TO-263 | TO-220AC |
| package instruction | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSFM-T2 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSFM-T2 |
| Humidity sensitivity level | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum non-repetitive peak forward current | 270 A | 270 A | 270 A | 270 A | 270 A | 270 A | 270 A | 270 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | YES | YES | YES | YES | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
