8EQ045SCX

Description
Rectifier Diode, Schottky, 1 Element, 10A, 45V V(RRM),
CategoryDiscrete semiconductor    diode
File Size138KB,4 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

8EQ045SCX Overview

Rectifier Diode, Schottky, 1 Element, 10A, 45V V(RRM),

8EQ045SCX Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
Reach Compliance Codeunknown
ConfigurationSINGLE
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.84 V
JESD-609 codee0
Maximum non-repetitive peak forward current180 A
Number of components1
Maximum operating temperature150 °C
Maximum output current10 A
Maximum repetitive peak reverse voltage45 V
surface mountYES
technologySCHOTTKY
Terminal surfaceTin/Lead (Sn/Pb)
PD-20350E
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
8EQ045
10A, 45V
Major Ratings and Characteristics
Characteristics
I
F(AV)
V
RRM
I
FSM
@ tp = 8.3ms half-sine
V
F
@ 10Apk, T
J
=125°C
8EQ045
10
45
80
0.58
Units
A
V
A
V
°C
Description/Features
The 8EQ045 Schottky rectifier has been expressly
designed to meet the rigorous requirements of HiRel
environments. It is packaged in the hermetic isolated
LCC-18 ceramic package. The device's forward voltage
drop and reverse leakage current are optimized for the
lowest power loss and the highest circuit efficiency for
typical high frequency switching power supplies and
resonent power converters. Full MIL-PRF-19500 quality
conformance testing is available on source controlled
drawings to TX, TXV and S levels.
Hermetically Sealed
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long
Term Reliability
• Suface Mount
• Lightweight
• ESD Rating: Class 3A per MIL-STD-750, Method 1020
T
J
, T
stg
Operating and storage
-55 to 150
Case Style
PIN LAYOUT
LEGEND
A = ANODE
C = CATHODE
NC = NO CONNECTION

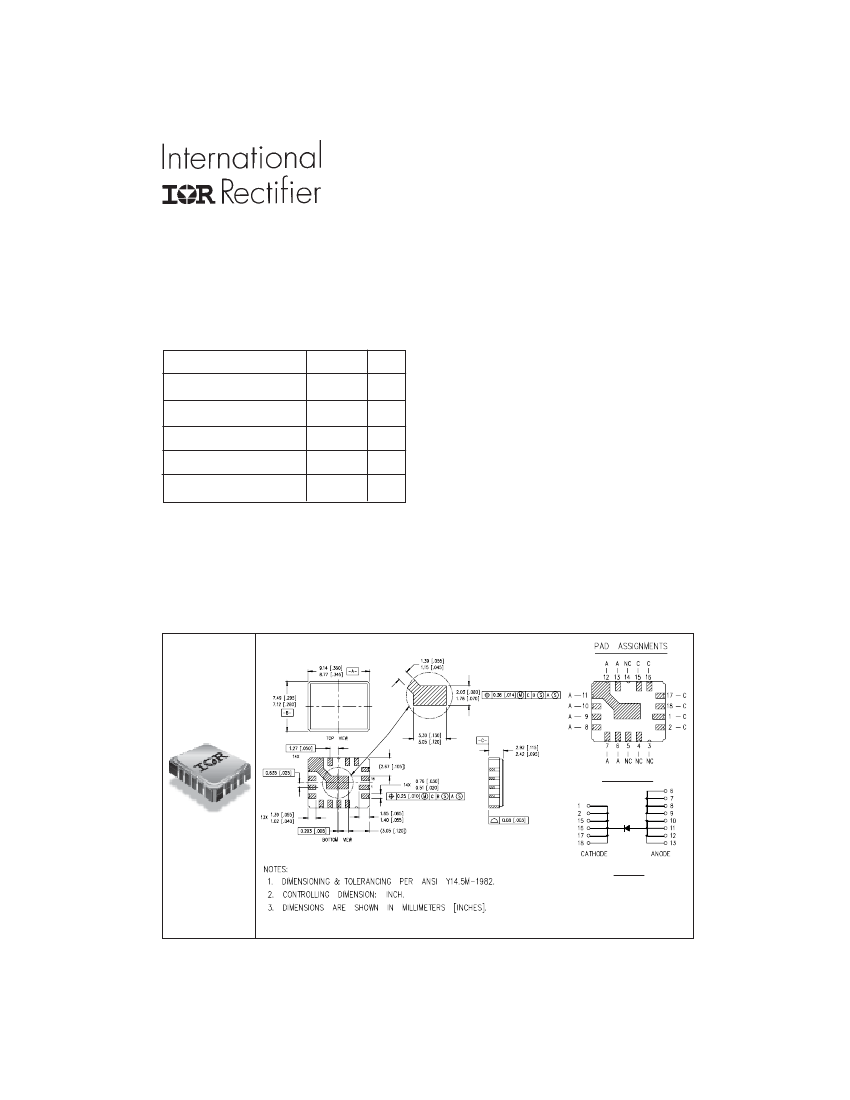

Case Outline and Dimensions - LCC-18
www.irf.com
1
04/27/15

8EQ045SCX Related Products

8EQ045SCX 8EQ045
Description Rectifier Diode, Schottky, 1 Element, 10A, 45V V(RRM), 10 A, 45 V, SILICON, RECTIFIER DIODE
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
Reach Compliance Code unknown unknow
Configuration SINGLE SINGLE
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum non-repetitive peak forward current 180 A 80 A
Number of components 1 1
Maximum operating temperature 150 °C 150 °C
Maximum output current 10 A 10 A
Maximum repetitive peak reverse voltage 45 V 45 V
surface mount YES YES
technology SCHOTTKY SCHOTTKY
