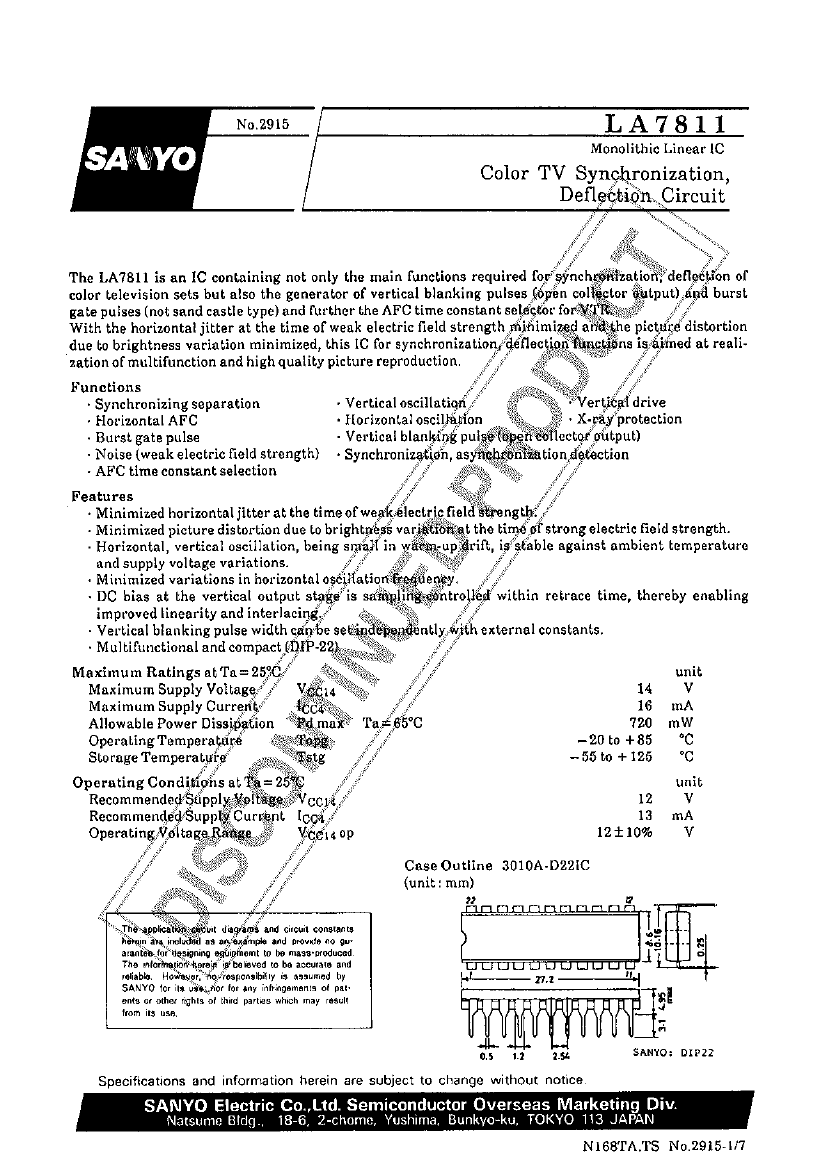

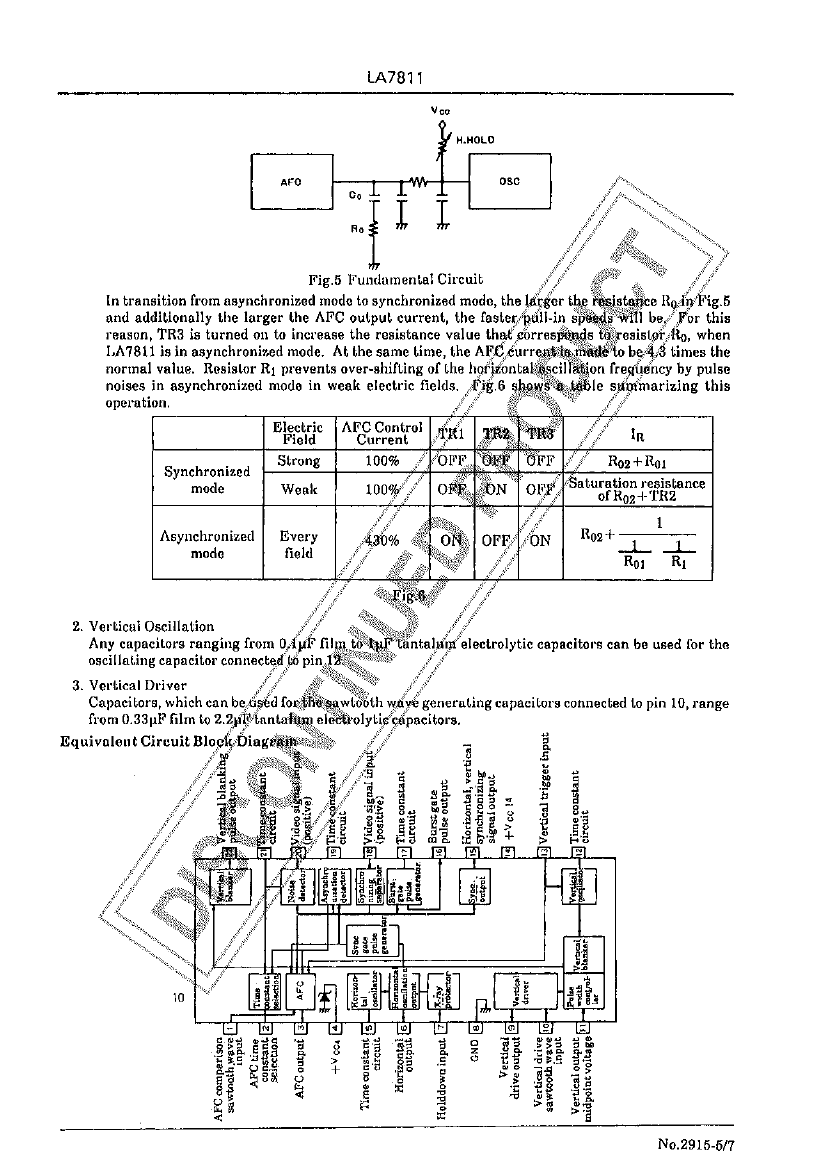

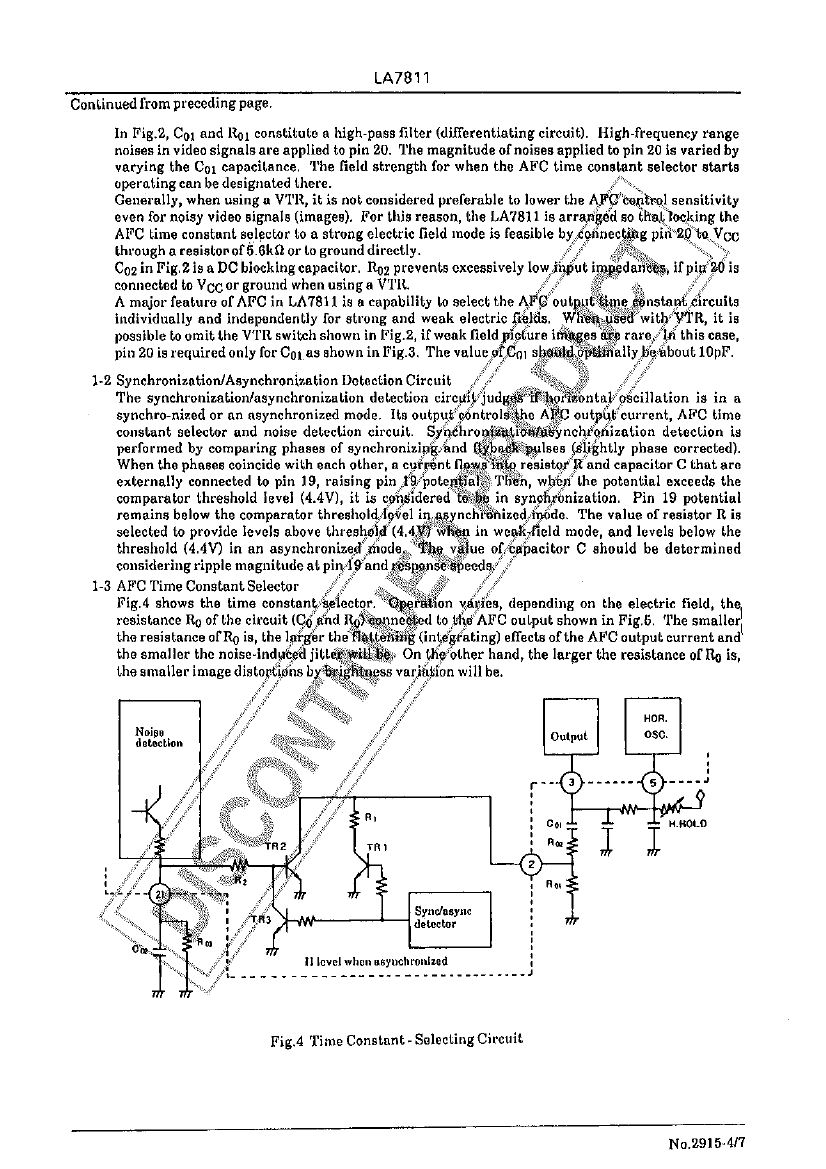

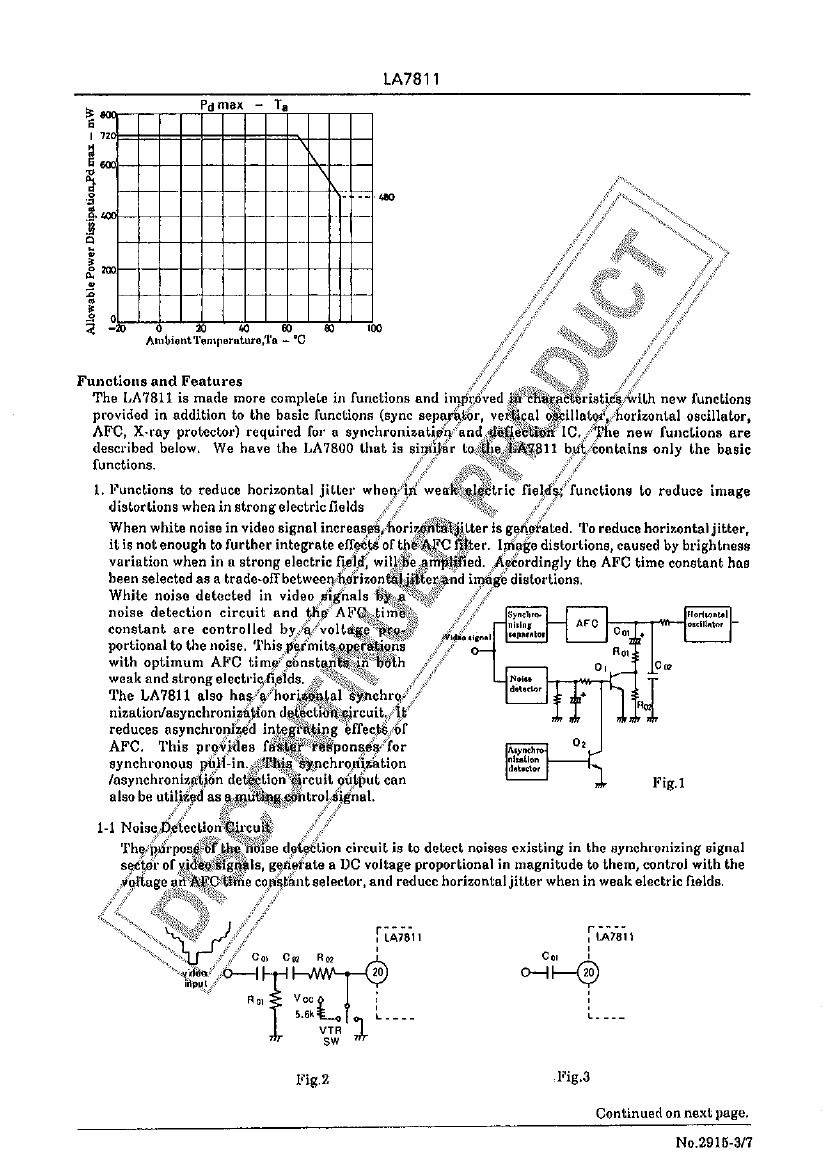

COLOR TV SYNCHRONIZATION DEFLECTION CIRCUIT

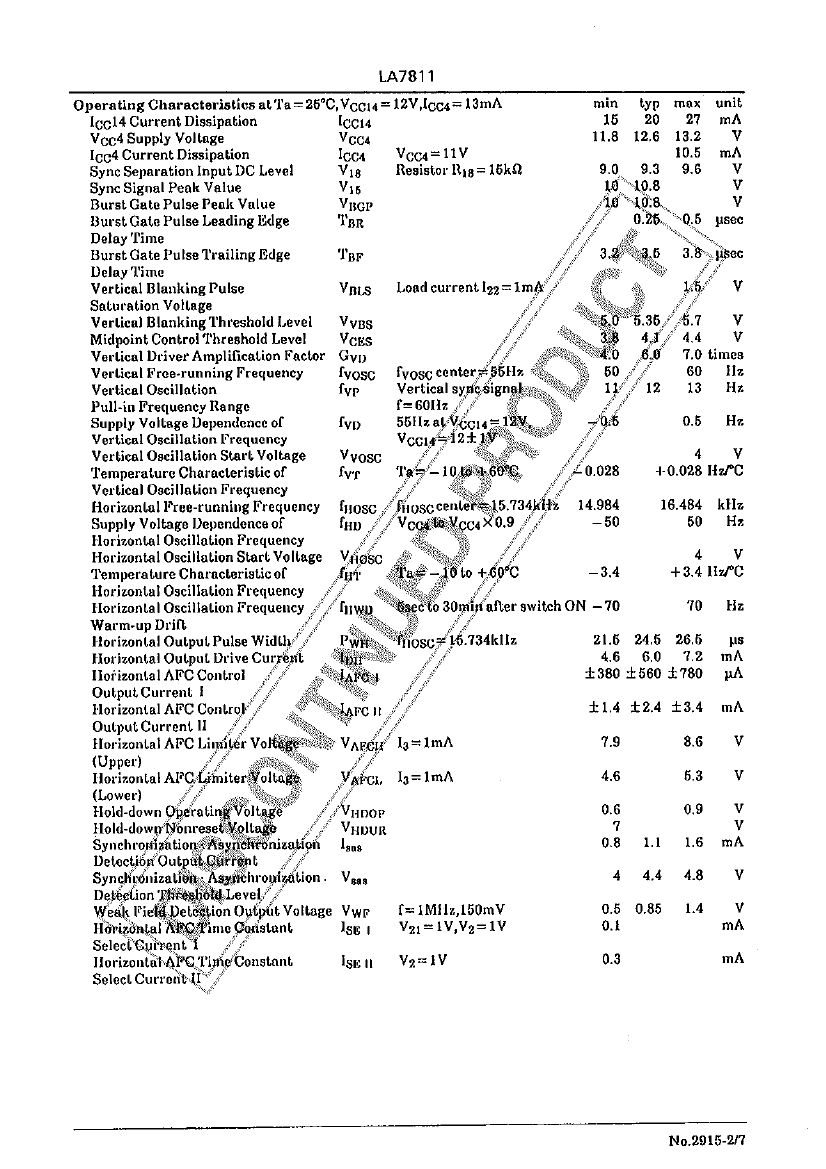

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, DIP22,.4 |
| Contacts | 22 |
| Reach Compliance Code | unknow |
| application | TV |
| Blanking output | YES |
| Commercial integrated circuit types | HORIZ/VERT DEFLECTION IC |
| JESD-30 code | R-PDIP-T22 |
| length | 27.2 mm |
| Number of functions | 1 |
| Number of terminals | 22 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP22,.4 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 12 V |
| Certification status | Not Qualified |
| Maximum seat height | 4.95 mm |
| Maximum slew rate | 27 mA |
| Maximum supply voltage (Vsup) | 13.2 V |
| Minimum supply voltage (Vsup) | 11.8 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 10.16 mm |
| Base Number Matches | 1 |
