ZLW-2B: DescriptionDouble Balanced Mixer, 1MHz Min, 1000MHz Max, 9.5dB Conversion Loss-Max, CASE M21; CategoryWireless rf/communication Radio frequency and microwave; File Size150KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZLW-2B Overview

Double Balanced Mixer, 1MHz Min, 1000MHz Max, 9.5dB Conversion Loss-Max, CASE M21

ZLW-2B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	9.5 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.77

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm) 1 to 1000 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZLW-2

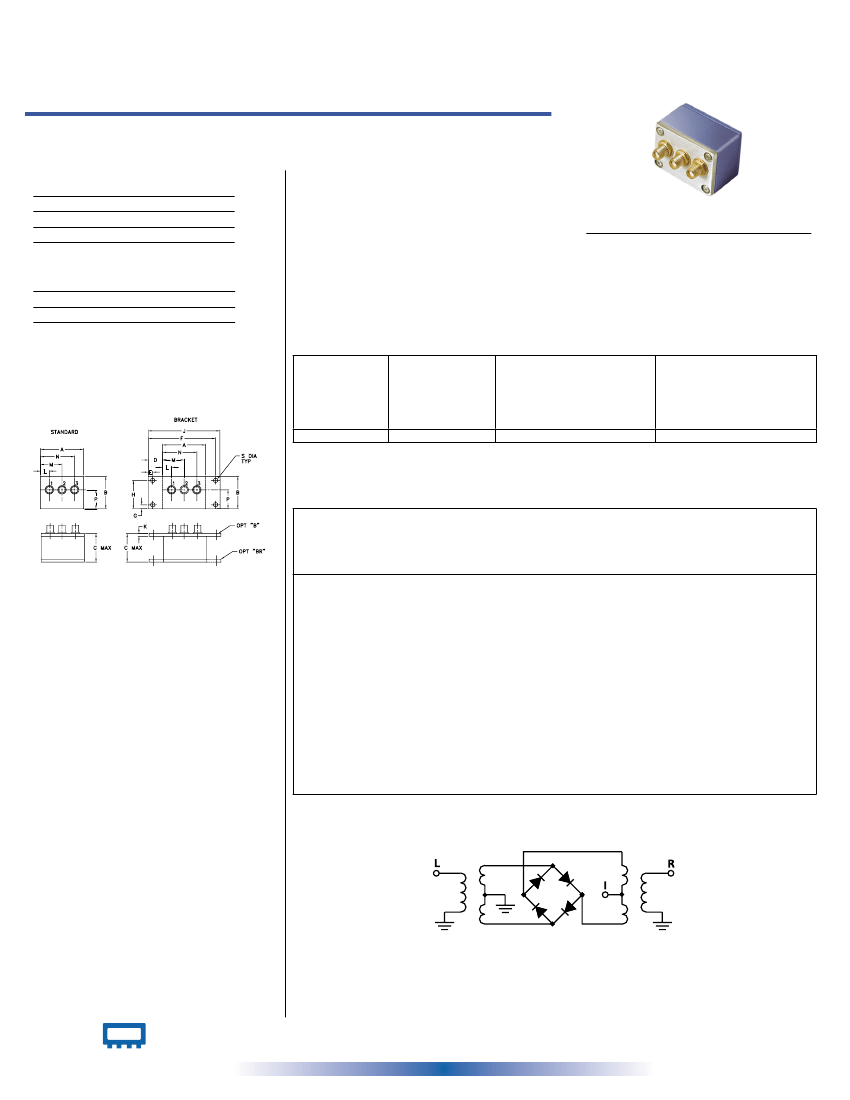

Features

• low conversion loss, 5.68 dB typ.

• high L-R isolation, 40 dB typ., L-I, 40 dB typ.

• wideband, 1 to 1000 MHz

• rugged shielded case

CASE STYLE: M21

Connectors Model

BNC

ZLW-2

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$56.95 ea.

$5.00

$2.50

Qty.

(1-9)

(1+)

Applications

Coaxial Connections

LO

RF

IF

1

3

2

• VHF/UHF

• cellular

• instrumentations

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

1-1000

DC-1000

IF

—

X

5.68

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.08

L

Typ.

55

LO-RF ISOLATION

(dB)

M

Min.

45

Typ.

40

Min.

25

Typ.

35

U

Min.

20

Typ.

50

L

LO-IF ISOLATION

(dB)

M

Min.

40

Typ.

40

Min.

25

Typ.

30

U

Min.

20

Total

Range

Max. Max.

7.5

9.5

1 dB COMP.: +1 dBm typ.

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

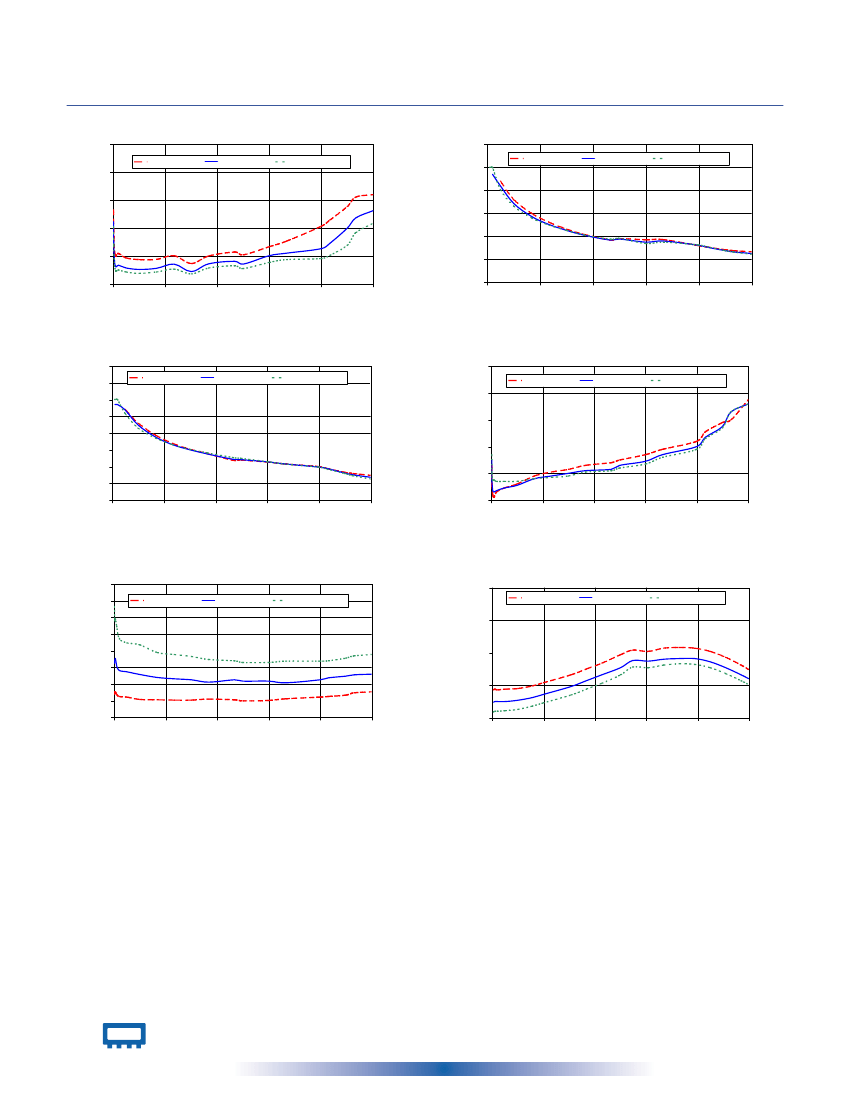

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

31.00

32.00

35.00

40.00

50.00

80.00

70.00

137.34

203.87

270.40

336.94

436.74

470.00

569.81

636.34

769.41

802.68

869.21

902.48

969.00

LO

+7dBm

7.23

6.50

5.80

5.62

5.68

5.58

5.53

5.57

5.72

5.45

5.73

5.82

5.72

6.02

6.11

6.27

6.46

7.00

7.37

7.63

Isolation

L-R

(dB)

LO

+7dBm

>67.00

61.94

54.33

48.65

45.10

42.56

40.45

38.33

38.80

37.43

37.94

36.06

35.22

33.77

33.17

32.49

Isolation

L-I

(dB)

LO

+7dBm

>67.00

63.74

54.76

47.61

43.03

40.00

37.57

34.32

34.10

32.81

31.57

29.67

28.79

26.14

25.03

23.59

VSWR RF

Port

(:1)

LO

+7dBm

1.30

1.15

1.07

1.06

1.07

1.09

1.11

1.16

1.18

1.20

1.22

1.23

1.26

1.29

1.34

1.40

1.47

1.55

1.66

1.72

VSWR LO

Port

(:1)

LO

+7dBm

2.70

2.63

2.77

2.55

2.41

2.37

2.29

2.20

2.16

2.13

2.06

2.13

2.09

2.04

2.13

2.19

2.24

2.28

2.30

RF

1.00

2.00

5.00

10.00

20.00

Outline Dimensions (

inch

)

mm

A

1.50

38.10

J

2.50

63.50

B

1.13

28.70

K

.10

2.54

C

1.00

25.40

L

.31

7.87

D

.50

12.70

M

.75

19.05

E

.155

3.94

N

1.19

30.23

F

2.345

59.56

P

.66

16.76

G

.138

3.51

H

.987

25.07

50.00

100.00

167.34

233.87

300.40

366.94

466.74

500.00

599.81

666.34

799.41

832.68

899.21

932.48

1000.00

S

wt

.150 grams

3.81

40.0

Electrical Schematic

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M93710

ZLW-2

DJ/TD/CP

060627

Page 1 of 2
