ZFY-2B: DescriptionDouble Balanced Mixer, 0.1MHz Min, 1000MHz Max, 9.5dB Conversion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size178KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFY-2B Overview

Double Balanced Mixer, 0.1MHz Min, 1000MHz Max, 9.5dB Conversion Loss-Max, CASE K18

ZFY-2B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BNC
structure	COAXIAL
Maximum frequency conversion loss	9.5 dB
Maximum input power (CW)	25.44 dBm
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.73

Preview

Download Datasheet

View All

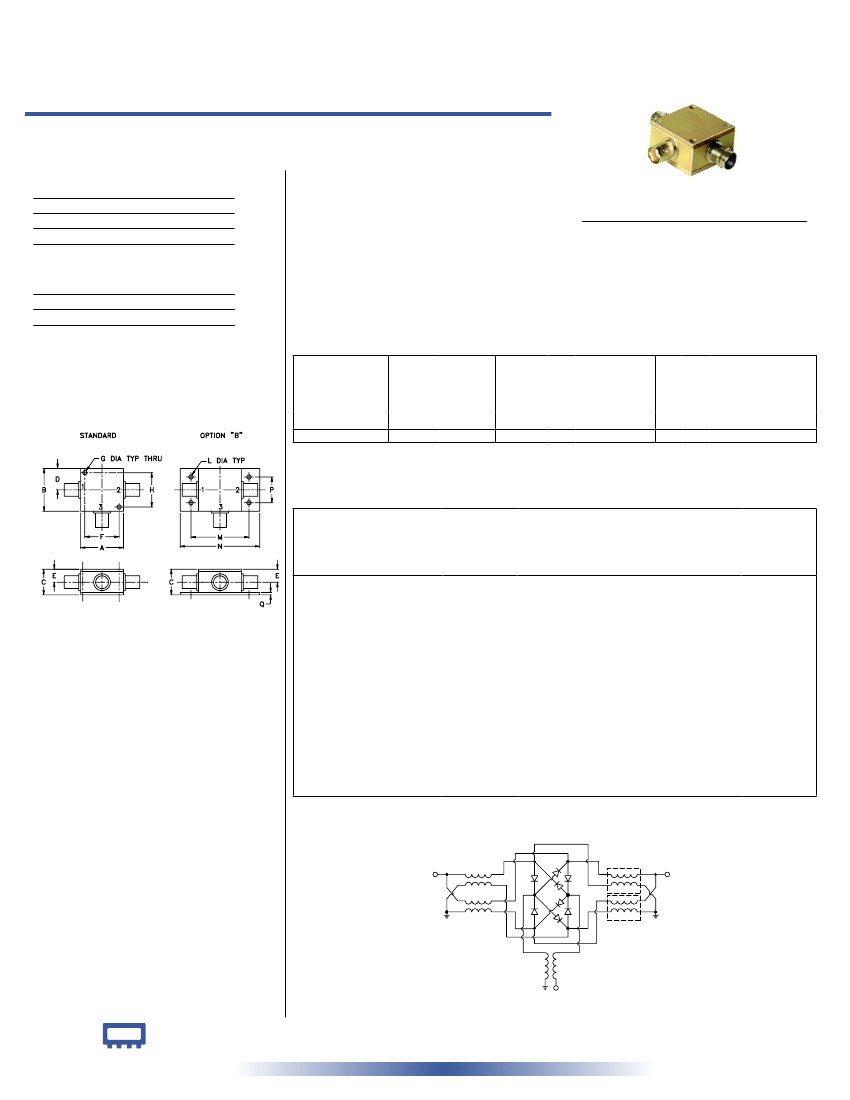

Frequency Mixer

Level 23 (LO Power +23 dBm) 0.1 to 1000 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

350mW

40mA

Coaxial

ZFY-2

Features

• low conversion loss, 5.40 dB typ.

• good L-R & L-I isolation, 40 dB typ.

• rugged shielded case

BNC version shown

CASE STYLE: K18

Connectors Model

BNC

ZFY-2

SMA

ZFY-2-S

BRACKET (OPTION “B”)

Price

$79.95

$84.95

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

LO

RF

IF

1

2

3

Applications

• VHF/UHF

• instrumentation

• cellular

Electrical Speciﬁcations

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

0.1-1000

IF

—

X

0.01-500* 5.40

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.24

Total

Range

Max. Max.

7.5

9.5

L

Typ.

40

LO-RF ISOLATION

(dB)

M

Min.

20

Typ.

40

Min.

30

Typ.

30

U

Min.

25

Typ.

37

L

LO-IF ISOLATION

(dB)

M

Min.

23

Typ.

40

Min.

25

Typ.

25

U

Min.

15

Outline Drawing

1 dB COMP.: +20 dBm typ.

*IF response from 0.1 to 0.01 MHz falls off 3 dB.

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/_]

U = upper range [f

U

/2 to f

U

]

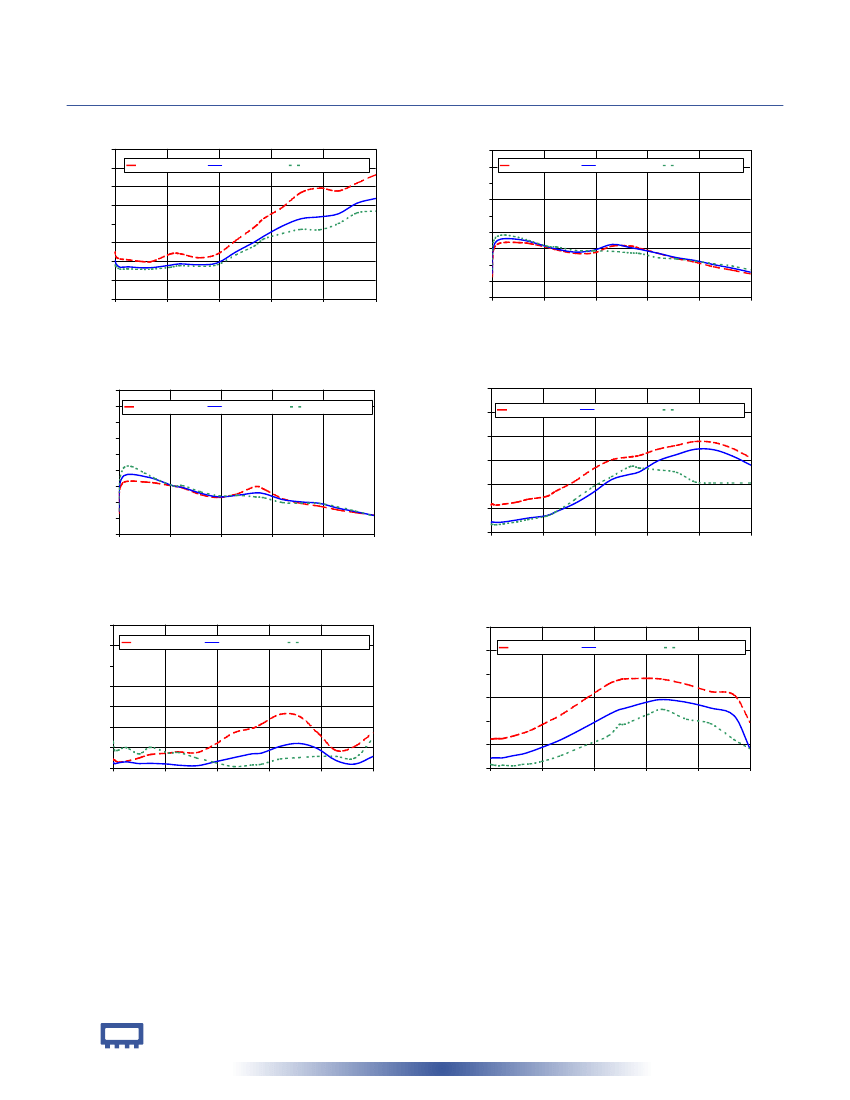

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

30.10

30.50

35.00

50.00

80.00

70.00

112.94

184.37

220.08

291.50

362.92

434.34

505.77

541.48

612.90

684.32

755.74

827.16

898.59

970.00

LO

+23dBm

6.00

6.04

5.85

5.68

5.70

5.65

5.66

5.79

5.86

5.81

5.91

6.50

7.03

7.34

7.88

8.27

8.37

8.53

9.10

9.35

Isolation

L-R

(dB)

LO

+23dBm

24.85

36.68

41.65

44.97

45.99

45.52

44.24

40.93

39.52

37.74

38.90

42.47

40.44

39.42

36.98

34.35

32.57

30.10

27.93

25.45

Isolation

L-I

(dB)

LO

+23dBm

23.85

35.77

42.30

46.33

47.10

45.79

44.02

39.85

38.88

35.22

33.06

34.07

35.52

34.94

31.33

29.91

29.06

26.12

23.81

21.46

VSWR RF

Port

(:1)

LO

+23dBm

1.20

1.21

1.22

1.21

1.22

1.26

1.30

1.35

1.43

1.60

1.83

2.10

2.21

2.26

2.49

2.62

2.73

2.72

2.59

2.40

VSWR LO

Port

(:1)

LO

+23dBm

1.25

1.28

1.21

1.25

1.30

1.22

1.23

1.19

1.14

1.11

1.31

1.51

1.70

1.73

2.06

2.20

1.95

1.37

1.19

1.57

RF

0.10

0.50

5.00

20.00

50.00

100.00

142.94

214.37

250.08

321.50

392.92

464.34

535.77

571.48

642.90

714.32

785.74

857.16

928.59

1000.00

Outline Dimensions (

inch

)

mm

A

1.25

31.75

B

1.25

31.75

C

.75

19.05

D

.63

16.00

E

.38

9.65

F

1.00

25.40

G

.125

3.18

H

1.000

25.40

J

--

K

--

L

.125

3.18

M

1.688

42.88

N

2.18

55.37

P

.75

19.05

Q

wt

.07 grams

70.0

1.78

Electrical Schematic

LO

RF

IF

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M93711

ZFY-2

DJ/TD/CP

060714

Page 1 of 2
