Frequency Synthesizer
50Ω
1690 to 2310 MHz
Features
• Integrated VCO + PLL
• Low phase noise and spurious
• Robust design and construction
• Low operating voltage (VCC VCO=+5V, VCC PLL=+12.5V)
Surface Mount
DSN-2300A-1119+
CASE STYLE: KL942
PRICE: $41.95 ea. QTY (1-9)
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Applications
• Point-to-Point
General Description
The DSN-2300A-1119+ is a Frequency Synthesizer, designed to operate from 1690 to 2310 MHz for Point-
to-Point application. The DSN-2300A-1119+ is packaged in a metal case (size of 1.25" x 1.00" x 0.20") to
shield against unwanted signals and noise. To enhance the robustness of DSN-2300A-1119+, each internal
component is secured to the substrate with chip bonder, thereby eliminating the risk of tombstoning during
subsequent solder reflow operations by the customer.

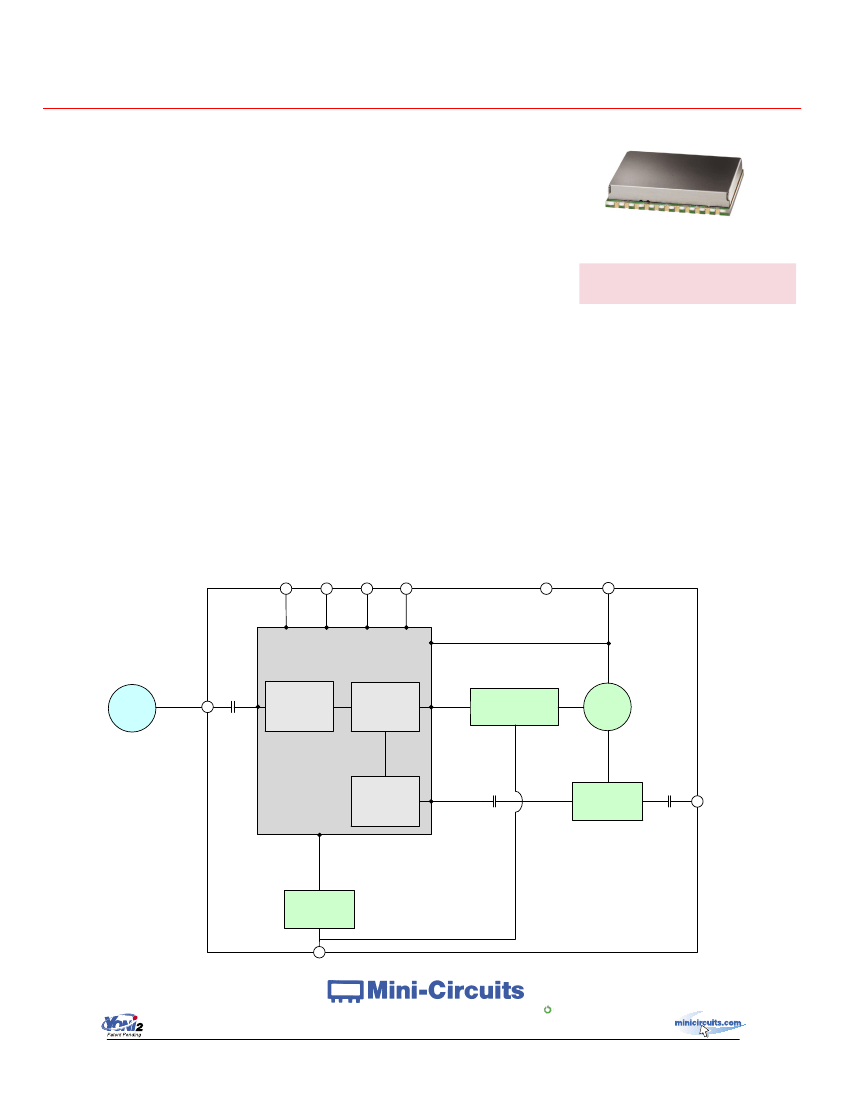

Simplified Schematic
LE
DATA CLOCK LOCK DET
GND
VCC VCO
VP
F
REF
XTAL
REF In
R COUNTER
1/R
Phase
Detector /
Charge Pump
K½
CP
LOOP FILTER
Vt
VCO
(External)
RF Out
PLL
N COUNTER
1/N
RFinA
SPLITTER
VOLTAGE
DIVIDER
VCC PLL
®
RoHS compliant
IF/RF MICROWAVE COMPONENTS
½½½½½½
9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
o
TM
The Design Engineers Search Engine
finds the model you need, Instantly •
For detailed performance specs & shopping online see
Notes: 1. Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet. 2. Electrical specifications and
performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. 3. The parts covered by this specification sheet are subject to Mini-Circuits
standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the
exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. OR
M127257
EDR-7137/1F1
DSN-2300A-1119+
Category-E7
RAV
100615
Page 2 of 11
Frequency Synthesizer
Electrical Specifications
(over operating temperature -33°C to +80°C)
Parameters
Frequency Range
Step Size
Settling Time
Output Power
DSN-2300A-1119+
Test Conditions
-
-
Within ± 1 kHz
Min.
1690
-
-
+2.5
-
-
-
-
-
-
-
-
-
+4.75
+12.25
-
-
-
Typ.
-
250
40
+5.8
-65
-71
-94
-117
-138
-115
-94
-90
-30
+5.00
+12.50
34
14
10
Max.
2310
-
-
+8.5
-
-60
-87
-109
-132
-90
-70
-
-15
+5.25
+12.75
42
21
-
Units
MHz
kHz
mSec
dBm
-
@ 100 Hz offset
@ 1 kHz offset
SSB Phase Noise
@ 10 kHz offset
@ 100 kHz offset
@ 1 MHz offset
Reference Spurious Suppression
Ref. Freq. 10 MHz
Comparison Spurious Suppression
Step Size 250 kHz
Non - Harmonic Spurious Suppression
-
Harmonic Suppression
-
VCO Supply Voltage
+5.00
PLL Supply Voltage
+12.50
VCO Supply Current
-
PLL Supply Current
-
10 (square wave)
Frequency
ensure slew rate (SR) > 50 V/µs
Reference Input
Amplitude
1
(External)
Input impedance
-
Phase Noise @ 1 kHz offset
-
RF Output port Impedance
-
Input high voltage
-
Input Logic Level
Input low voltage
-
Locked
-
Digital Lock Detect
Unlocked
-
Frequency Synthesizer PLL
-
PLL Programming
-
F_Register
-
Register Map @ 2310 MHz
N_Register
-
R_Register
-
dBc/Hz
dBc
V
mA
MHz
-
1
-
V
P-P
-
100
-
KΩ
-
-140
-
dBc/Hz
-
50
-
Ω
2.65
-
-
V
-
-
0.65
V
2.85
-
3.70
V
-
-
0.40
V
ADF4106
3-wire serial 3.3V CMOS
(MSB) 100111111000000000010010 (LSB)
(MSB) 1000010010000001100001 (LSB)
(MSB) 100000000000010100000 (LSB)
Absolute Maximum Ratings
Parameters
Ratings
VCO Supply Voltage
5.8V
PLL Supply Voltage
14.0V
VCO Supply Voltage to PLL Supply Voltage
N.A.
Reference Frequency Voltage
0Vmin, +3.55Vmax
Data, Clock, LE Levels
0Vmin, +3.55Vmax
Operating Temperature
-40°C to +85°C
Storage Temperature
-55°C to +100°C
Permanent damage may occur if any of these limits are exceeded
®
