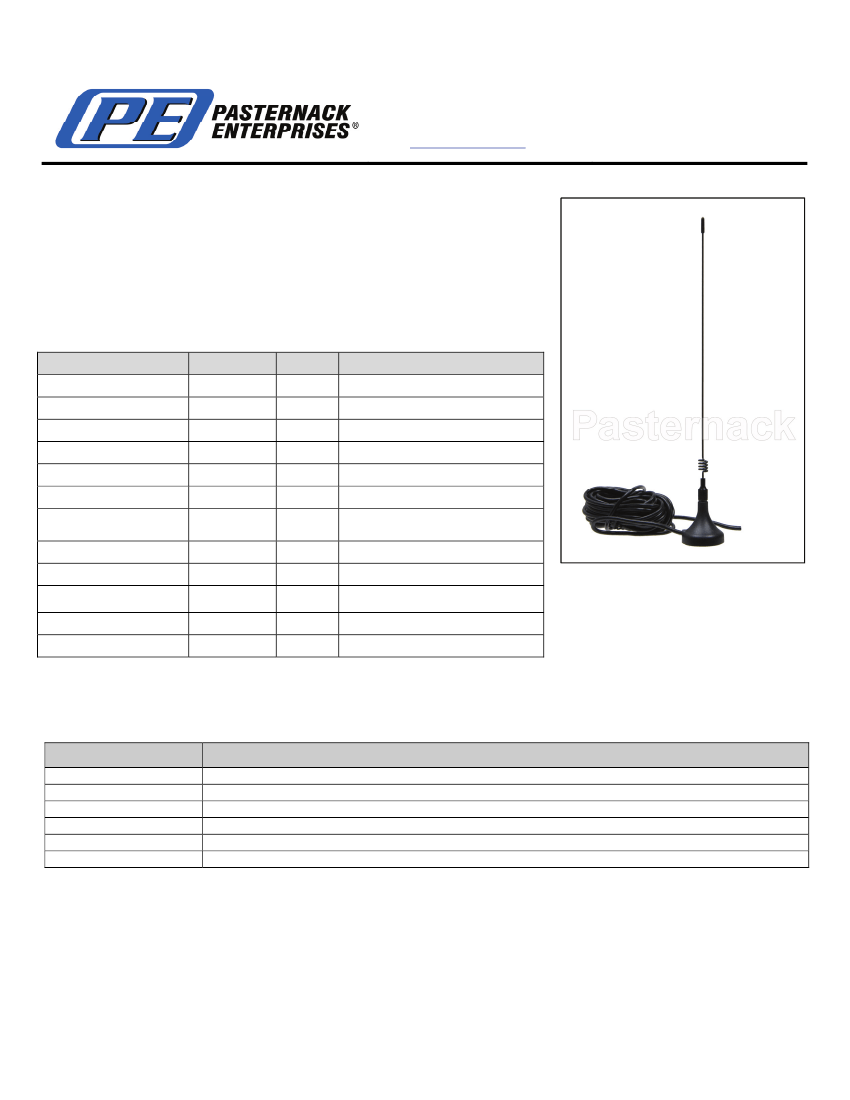

PE51089

Mag Mount Antenna

890-960 &

1710-1880 MHz

3.0 dBi

Product Features

•

890-960 / 1710-1880 MHz

50W power handling

High Gain, 8dBi Omni Radiation Pattern

Mag Mount Antenna with Cable

SMA Male, SMA Female, N Female & TNC Male

(1)

Specifications

Parameter

Band1 Frequency

Band2 Frequency

Impedance

Gain

Polarization

Max Input Pwr

Maximum VSWR

Length

Cable Length

Weight

Lightning Protection

Temperature Range

Value

890-960

1710-1880

Vert

<=2.0

230

-40+60

Units

MHz

Ohms

dBi

ratio

Deg C

Description

Max Gain

Linear Vertical

Watts(Max)

Between Min and Max Freq

Ranges

9.0 inches

16Ft

Grams

DC Ground

Ordering Information

Part Number

PE51089

PE51089-1

PE51089-2

PE51089-3

PE51089-4

Description

890-960 & 1710-1880 MHz 2 Gain dBi Mag Mount Antenna, With connector choices below

PE51089 Terminated with SMA Male

PE51089 Terminated with SMA Female

PE51089 Terminated with N Female

PE51089 Terminated with TNC Male

(1)

(2)

Pasternack reserves the right to change specifications or information without notice.

All specifications "typical"

www.pasternack.com

1 of 1
