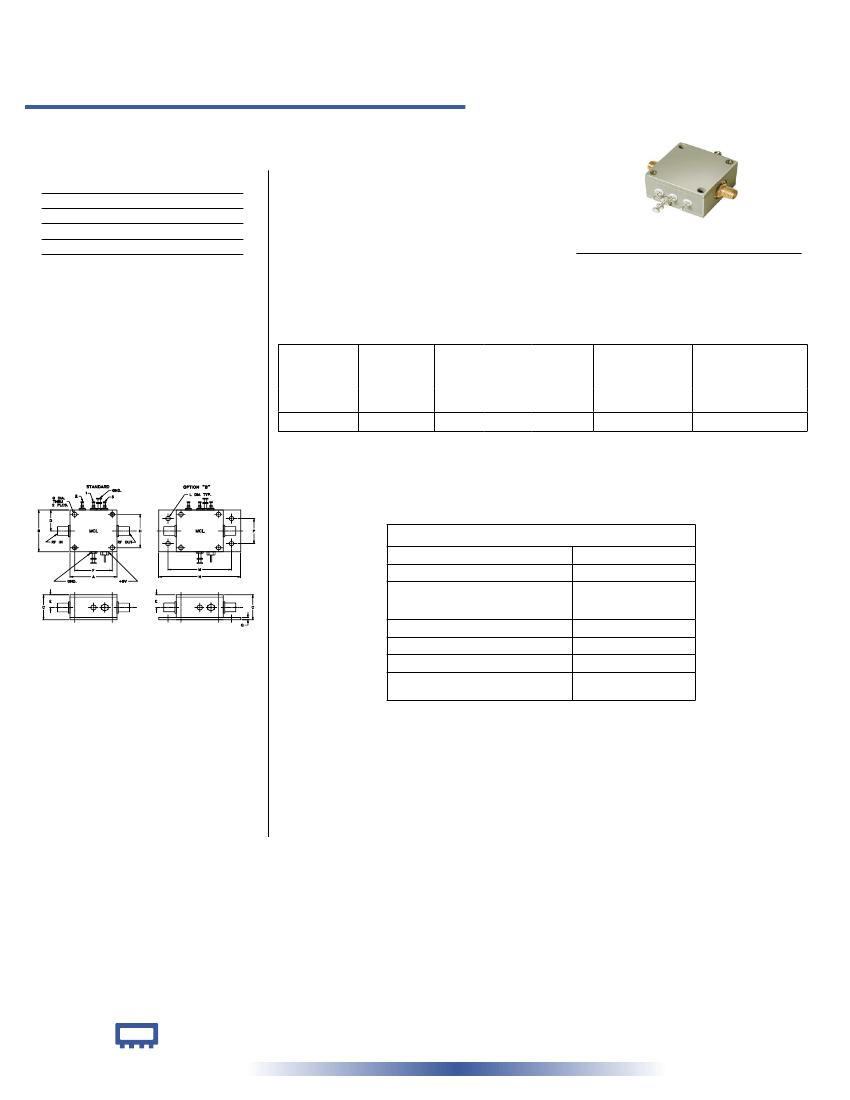

EEWORLDEEWORLDEEWORLD

Part Number

Search

ZFAT-R512

Description
Variable Attenuator, 10MHz Min, 1000MHz Max, METAL, CASE SSS173
CategoryWireless rf/communication    Radio frequency and microwave
File Size205KB,2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

ZFAT-R512 Overview

Variable Attenuator, 10MHz Min, 1000MHz Max, METAL, CASE SSS173

ZFAT-R512 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSMA
Nominal attenuation3.5 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)15.05 dBm
JESD-609 codee0
Maximum operating frequency1000 MHz
Minimum operating frequency10 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesVARIABLE ATTENUATOR
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.6
Precision
Digital Step Attenuator
50Ω
TTL Control, Pin Diode
Maximum Ratings
Operating Temperature
Storage Temperature
Input Power
DC Voltage
TTL
-55°C to 100°C
-55°C to 125°C
15 dBm
5.5 V
5.5V
ZFAT-R512
10 to 1000 MHz
Features
• wideband, 10 to 1000 MHz
• excellent step accuracy, 0.2 dB typ.
• small, shielded metal case
CASE STYLE: SSS173
Connectors
Model
SMA
ZFAT-R512
BRACKET (OPTION “B”)
Price
$89.95
$2.50
Qty.
(1-9)
(1+)
Applications
• base stations
• cellular
• test sets

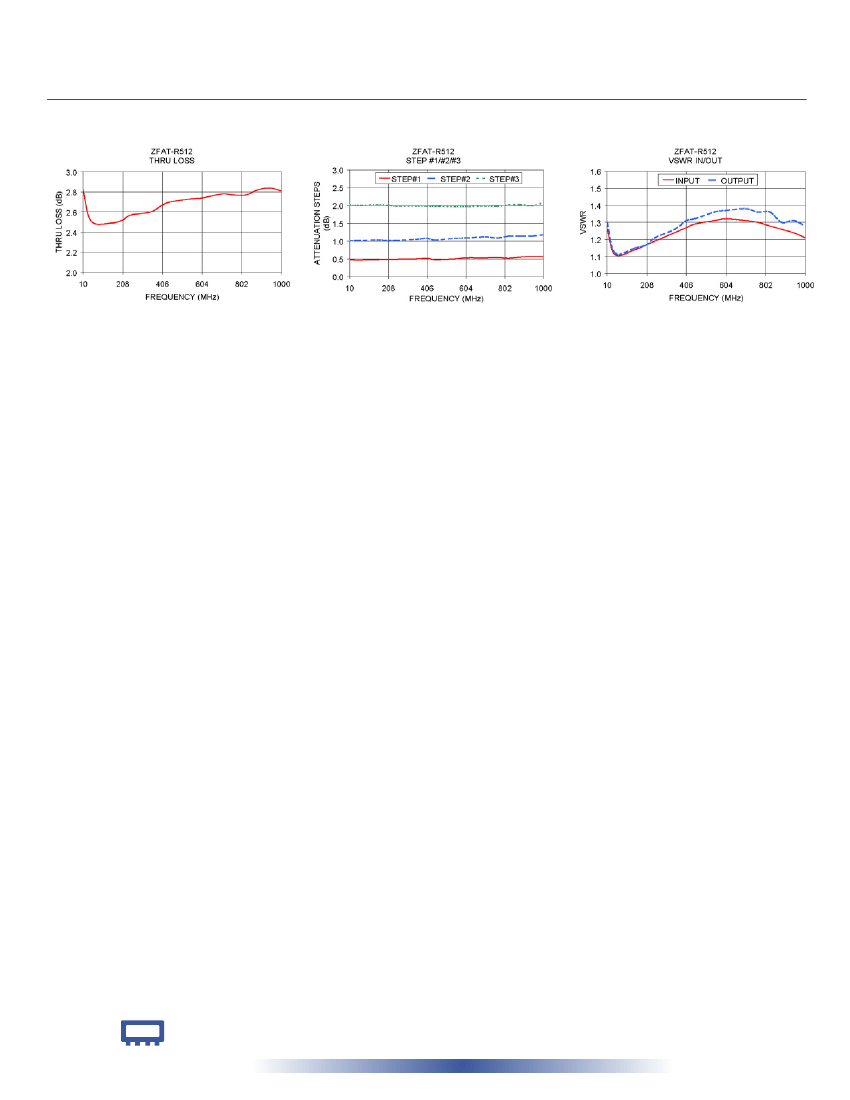

Digital Step Attenuator Electrical Specifications
MODEL
NO.
FREQUENCY
(MHz)
PRIMARY ATTENUATION STEPS
(dB)
@TTL CONTROL PORT
(1,1,1)**
f
L
ZFAT-R512
10
f
U
1000
#1
0.5±0.18
#2
1±0.25
#3
2±0.25
ATTENUATION
(dB)
(0,0,0)
VSWR
(:1)
Nom.
3.5
Max.
4.0
L
1.6
M
1.4
U
1.5
Outline Drawing
L=10 to 100 MHz
M=100 to 500 MHz
** Total attenuation above thru-loss.
1. Step accuracy is specified for basic steps. For combination of steps accuracy is additive.
2. Thru-loss is minimum insertion loss with all attenuation elements bypassed (All TTL controls state are Low)
U=500 to 1000 MHz
Additional Specifications
DC Voltage
DC Current
Switching Time (50% TTL to within specified
accuracy of the next-selected attenuation step,
and to within 0.1 dB of steady-state Thru-Loss)
TTL Input High Threshold
TTL Input Low Threshold
TTL Toggle Rate
1dB Compression
+5V
12mA max.
10µs typ., 15µs max.,
2V min
0.8V max.
50 kHz typ.
0 dBm (10-100 MHz)
+10 dBm (100-1000MHz)
Outline Dimensions (
inch
)
mm
A
1.25
31.75
H
1.000
25.40
B
1.25
31.75
L
.125
3.18
C
.75
19.05
M
1.688
42.88
D
.63
16.00
N
2.18
55.38
E
.38
9.65
P
.75
19.05
F
1.000
25.40
Q
1.78
G
.125
3.18
wt.
75
.07 grams
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. OR
M97802
ZFAT-R512
DJ/VV/CP
051202
Mini-Circuits
ISO 9001 & ISO 14001
Certified

ZFAT-R512 Related Products

ZFAT-R512 ZFAT-R512B
Description Variable Attenuator, 10MHz Min, 1000MHz Max, METAL, CASE SSS173 Variable Attenuator, 10MHz Min, 1000MHz Max, METAL, CASE SSS173
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Maker Mini-Circuits Mini-Circuits
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features SMA SMA
Nominal attenuation 3.5 dB 3.5 dB
Characteristic impedance 50 Ω 50 Ω
structure COAXIAL COAXIAL
Maximum input power (CW) 15.05 dBm 15.05 dBm
JESD-609 code e0 e0
Maximum operating frequency 1000 MHz 1000 MHz
Minimum operating frequency 10 MHz 10 MHz
Maximum operating temperature 100 °C 100 °C
Minimum operating temperature -55 °C -55 °C
RF/Microwave Device Types VARIABLE ATTENUATOR VARIABLE ATTENUATOR
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio 1.6 1.6
