ZAPDJ-2+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZAPDJ-2+

ZAPDJ-2+: DescriptionCombiner, 1000MHz Min, 2000MHz Max, 1.8dB Insertion Loss-Max, CASE F53; CategoryWireless rf/communication Radio frequency and microwave; File Size193KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZAPDJ-2+ Overview

Combiner, 1000MHz Min, 2000MHz Max, 1.8dB Insertion Loss-Max, CASE F53

ZAPDJ-2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	CASE F53
Reach Compliance Code	unknown
Other features	BNC, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.8 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

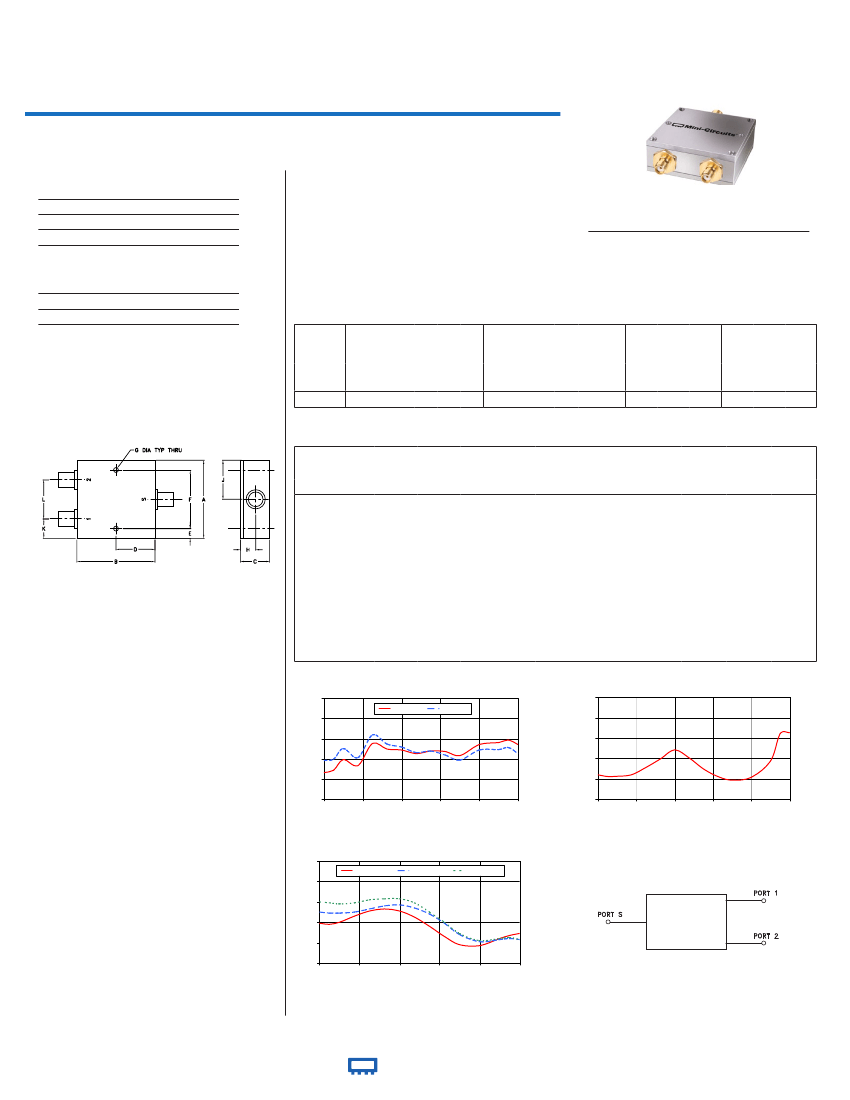

Power Splitter/Combiner

2 Way-180°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

Coaxial

ZAPDJ-2

50Ω

1000 to 2000 MHz

Features

• low insertion loss, 1.3 dB typ.

• good isolation, 22 dB typ.

• excellent amplitude unbalance, 0.8 dB typ.

• rugged shielded case

SMA version shown

CASE STYLE: F53

Connectors

BNC

SMA

N-TYPE

Model

ZAPDJ-2

ZAPDJ-2-S+

ZAPDJ-2-N

Price

$76.95

$81.95

Qty.

(1-9)

Permanent damage may occur if any of these limits are exceeded.

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• GPS

• satellite distribution

• signal processing

FREQ.

RANGE

(MHz)

-f

1000-2000

Electrical Specifications

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.8

Typ. Min.

Typ. Max.

1.3

1.8

Outline Drawing

Frequency

(MHz)

Total Loss

(dB)

S-1

1000.00

1050.00

1100.00

1175.00

1250.00

1325.00

1400.00

1475.00

1550.00

1625.00

3.52

3.57

3.78

3.66

4.10

3.99

3.97

3.90

3.95

3.94

3.86

4.08

4.12

4.17

4.08

Typical Performance Data

Amplitude

Unbalance

(dB)

0.24

0.23

0.22

0.16

0.09

0.06

0.01

0.00

0.07

0.09

0.11

0.14

0.15

0.17

Isolation

(dB)

S-2

3.76

3.79

4.00

3.82

4.27

4.09

4.03

3.92

3.95

3.87

3.77

3.97

3.98

4.02

3.90

Phase

Unbalance

(deg.)

181.64

181.56

181.90

181.57

181.62

178.45

178.65

178.75

178.85

178.83

179.11

179.21

180.54

180.43

180.35

VSWR

27.17

26.67

26.74

27.17

29.31

31.81

34.50

32.19

28.92

26.67

25.57

26.47

31.30

39.34

39.57

1.39

1.38

1.40

1.46

1.51

1.53

1.51

1.45

1.36

1.26

1.18

1.17

1.24

1.27

1.29

ZAPDJ-2

ISOLATION

1.50

1.49

1.50

1.53

1.56

1.57

1.54

1.48

1.39

1.28

1.21

1.23

1.24

1.23

1.60

1.59

1.58

1.59

1.62

1.63

1.59

1.50

1.40

1.29

1.22

1.24

1.25

1.23

Outline Dimensions (

inch

)

2.00

50.80

.39

9.91

2.00

50.80

1.00

25.40

.75

19.05

.50

12.70

1.00

25.40

1.00

25.40

.13

3.30

1.750

44.45

.125

3.18

grams

170.0

TOTAL LOSS (dB)

1700.00

1800.00

1900.00

1950.00

2000.00

1. Total Loss = Insertion Loss + 3dB splitter loss.

ZAPDJ-2

TOTAL LOSS

5.0

S-1(dB)

4.6

4.2

3.8

3.4

3.0

1000

S-2(dB)

ISOLATION (dB)

1000

1200

1400

1600

1800

2000

1200

1400

1600

1800

2000

FREQUENCY (MHz)

2.0

#S-VSWR

1.8

VSWR

1.6

1.4

1.2

1.0

1000

ZAPDJ-2

VSWR

#1-VSWR

#2-VSWR

electrical schematic

1200

1400

1600

1800

2000

FREQUENCY (MHz)

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

REV. B

M143449

ZAPDJ-2

HY/TD/CP/AM

131105
