ZP-860-S Overview

Double Balanced Mixer, 800MHz Min, 1050MHz Max, 7.75dB Conversion Loss-Max, CASE GG60

ZP-860-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	7.75 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Maximum operating frequency	1050 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	3.32

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

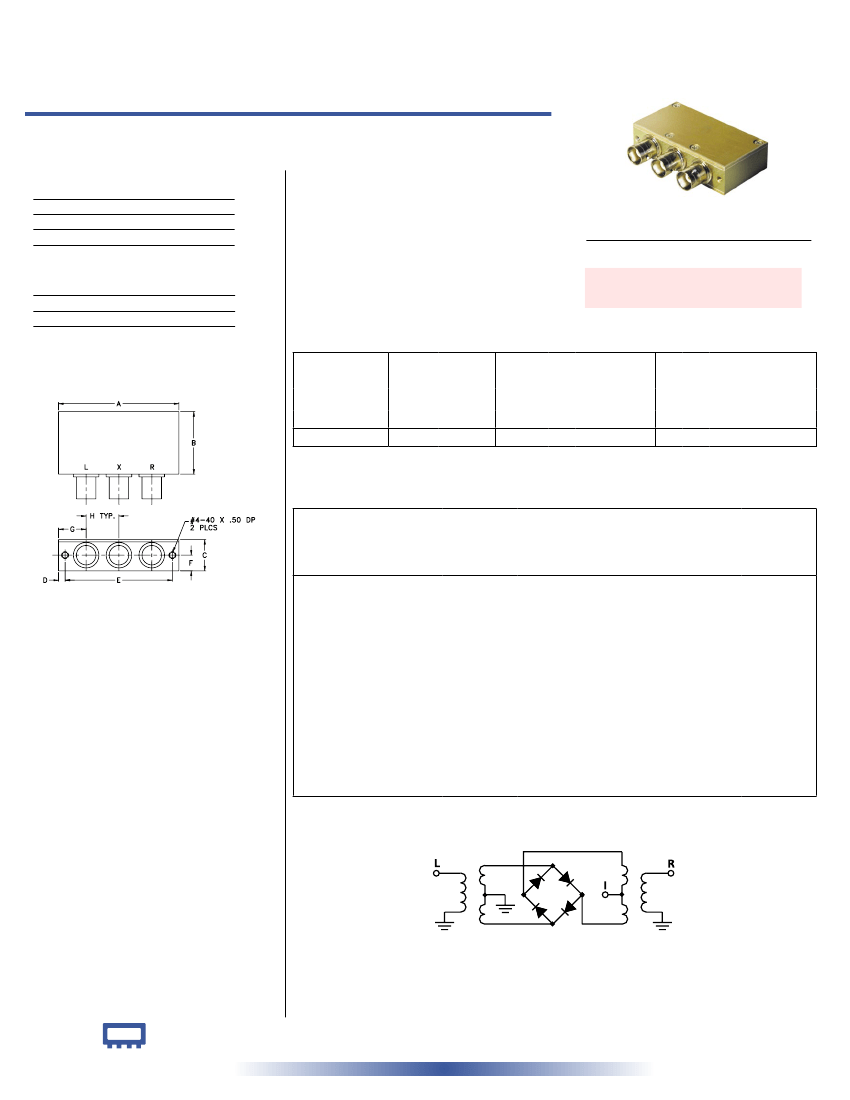

ZP-860+

ZP-860

800 to 1050 MHz

Features

• low conversion loss, 5.6 dB typ.

• good L-R isolation, 35 dB typ.

• rugged shielded case

BNC version shown

CASE STYLE: GG60

Connectors

BNC

SMA

Model

ZP-860-(+)

ZP-860-S(+)

Price

Qty.

$47.95 ea. (1-9)

$52.95 ea. (1-9)

Applications

• UHF

• instrumentation

• cellular

Coaxial Connections

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

800-1050

DC-250

—

5.6

0.24

CONVERSION LOSS

(dB)

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

Total

Range

Max.

7.75

Typ.

Min.

Typ.

Min.

1 dB COMP.: +1 dBm typ.

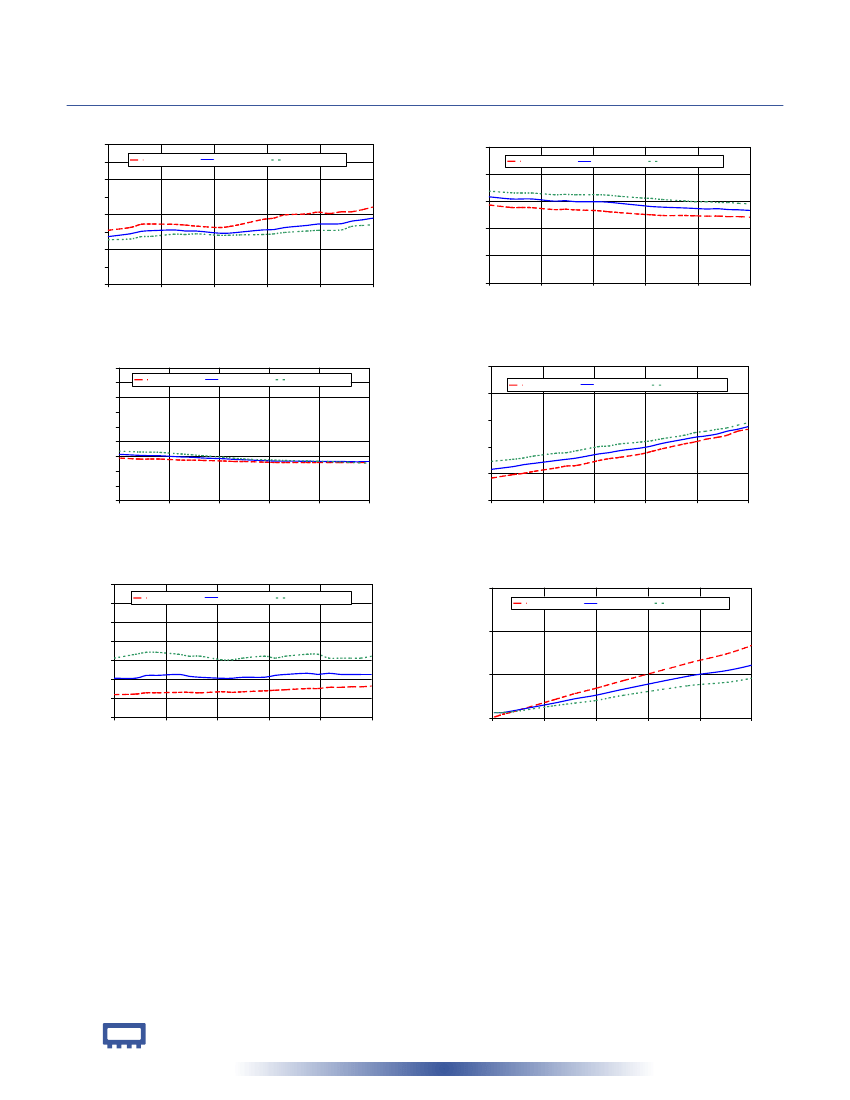

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

830.00

850.83

861.25

871.67

892.50

902.92

913.33

934.17

944.58

955.00

975.83

986.25

996.67

1017.50

1027.92

1038.33

1050.00

1999.17

1009.58

1020.00

+7dBm

5.36

5.44

5.51

5.53

5.55

5.52

5.46

5.49

5.55

5.56

5.62

5.68

5.72

5.73

5.80

5.84

5.89

Isolation

L-R

(dB)

+7dBm

41.60

40.80

40.00

40.20

39.80

39.60

39.20

38.40

38.00

37.80

37.50

37.30

37.10

37.20

36.90

36.80

36.60

Isolation

L-I

(dB)

+7dBm

41.20

40.50

40.30

40.20

39.40

39.20

38.70

38.20

37.80

37.50

36.90

36.60

36.50

36.40

36.30

36.40

36.20

36.10

VSWR RF

Port

(:1)

+7dBm

1.46

1.50

1.53

1.55

1.59

1.61

1.63

1.69

1.71

1.74

1.78

1.81

1.85

1.91

1.94

1.96

1.99

2.03

2.06

2.10

VSWR LO

Port

(:1)

+7dBm

3.06

3.21

3.26

3.16

3.11

3.06

3.11

3.21

3.26

3.32

3.26

3.32

3.26

800.00

820.83

831.25

841.67

862.50

Outline Dimensions (

inch

)

2.31

58.7

1.20

30.5

.60

15.2

.125 2.062

3.2 52.4

.30

7.6

.53

13.5

.63 grams

16.0

75.0

872.92

883.33

904.17

914.58

925.00

945.83

956.25

966.67

987.50

997.92

1008.33

1020.00

1029.17

1039.58

1050.00

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. A

M98898

ZP-860

DJ/TD/CP

060710

Page 1 of 2
