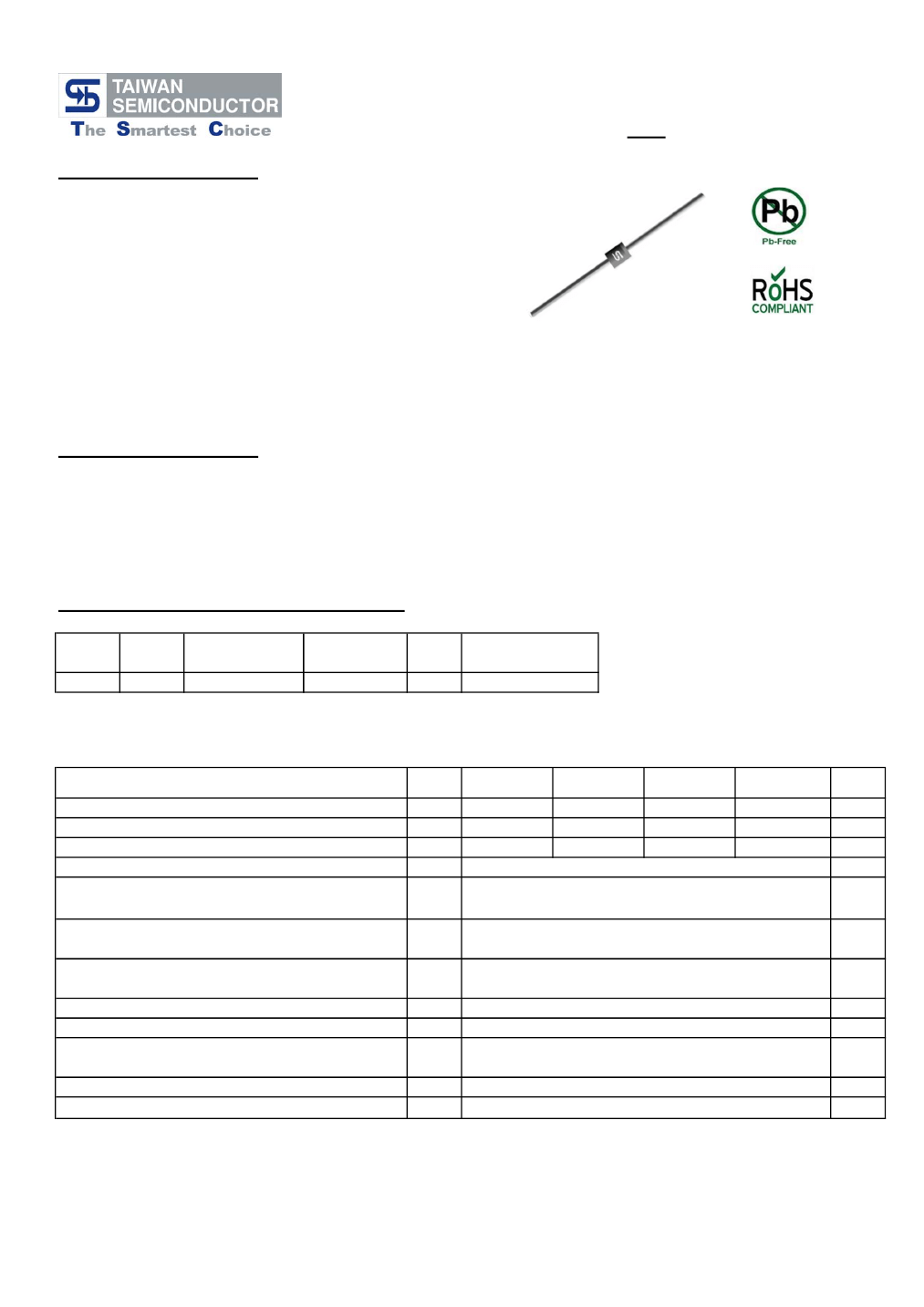

UG06A - UG06D
0.6AMP. Glass Passivated Ultra Fast Rectifiers

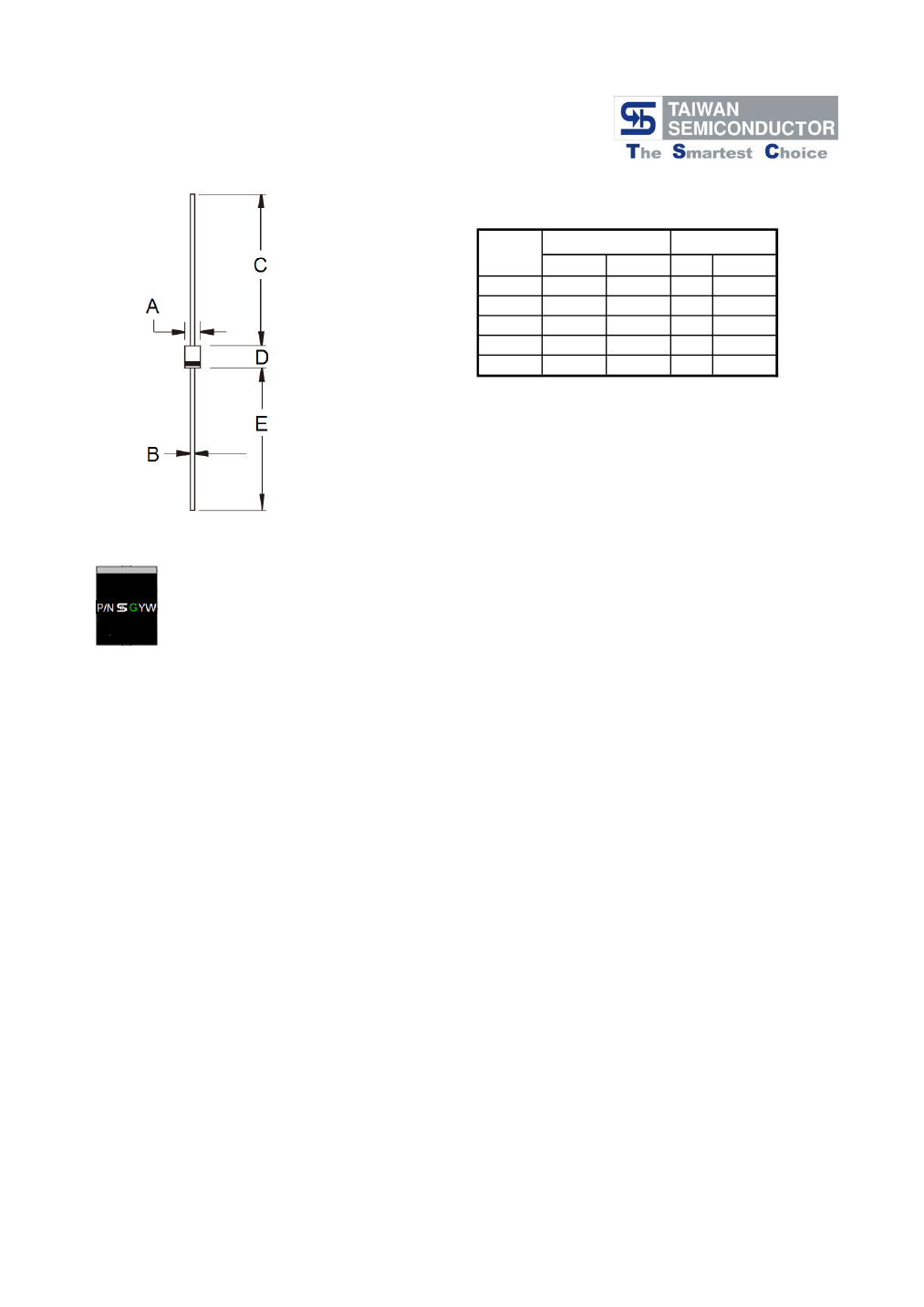

TS-1
Features
Plastic package has Underwrites Laboratories
Flammability Classification 94V-0
ldeally suited for use in very high frequency
switching power supplies, inverters and as free
wheeling diodes
Ulterafast recovery time for high efficiency
Excellent high temperature switching
Glass passivated junction
High temperature soldering guaranteed:
260
o
C/10 seconds/.375",(9.5mm) lead lengths
at 5lbs.,(2.3kg) tension
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Void free molded plastic body over glass
passivated chip iunction
Terminals: Pure tin plated leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denotes cathode
Mounting position: Any
Weight: 0.181 grams

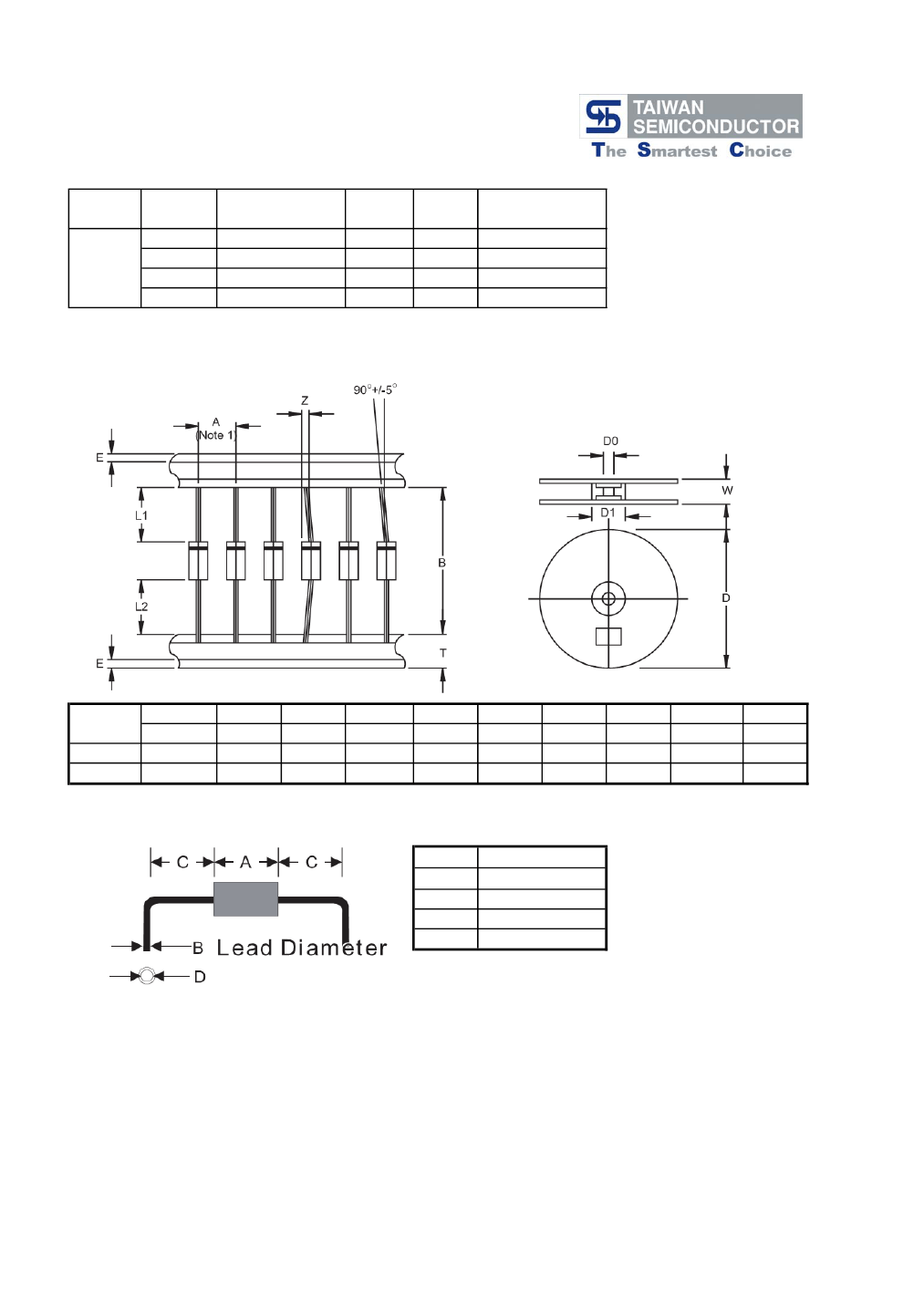

Ordering Information (example)
Part No.
UG06A
Package
TS-1
Packing
3K / AMMO box
INNER
TAPE
26mm
Packing
code
P0
Green Compound
Packing code
P0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 0.6A
Maximum DC Reverse Current at Rated
DC Blocking Voltage
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range T
J
Storage Temperature Range T
STG
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
T
J
T
STG
UG06A
50
25
50
UG06B
100
70
100
0.6
40
0.95
5
150
15
9
97
28
UG06C
150
105
150
UG06D
200
140
200
Units
V
V
V
A
A
V
uA
uA
nS
pF
O
Maximum Reverse Recovery Time (Note 2)
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1MHz and Applied Reverse Voltage of 4.0 Volts D.C.
Version:D13

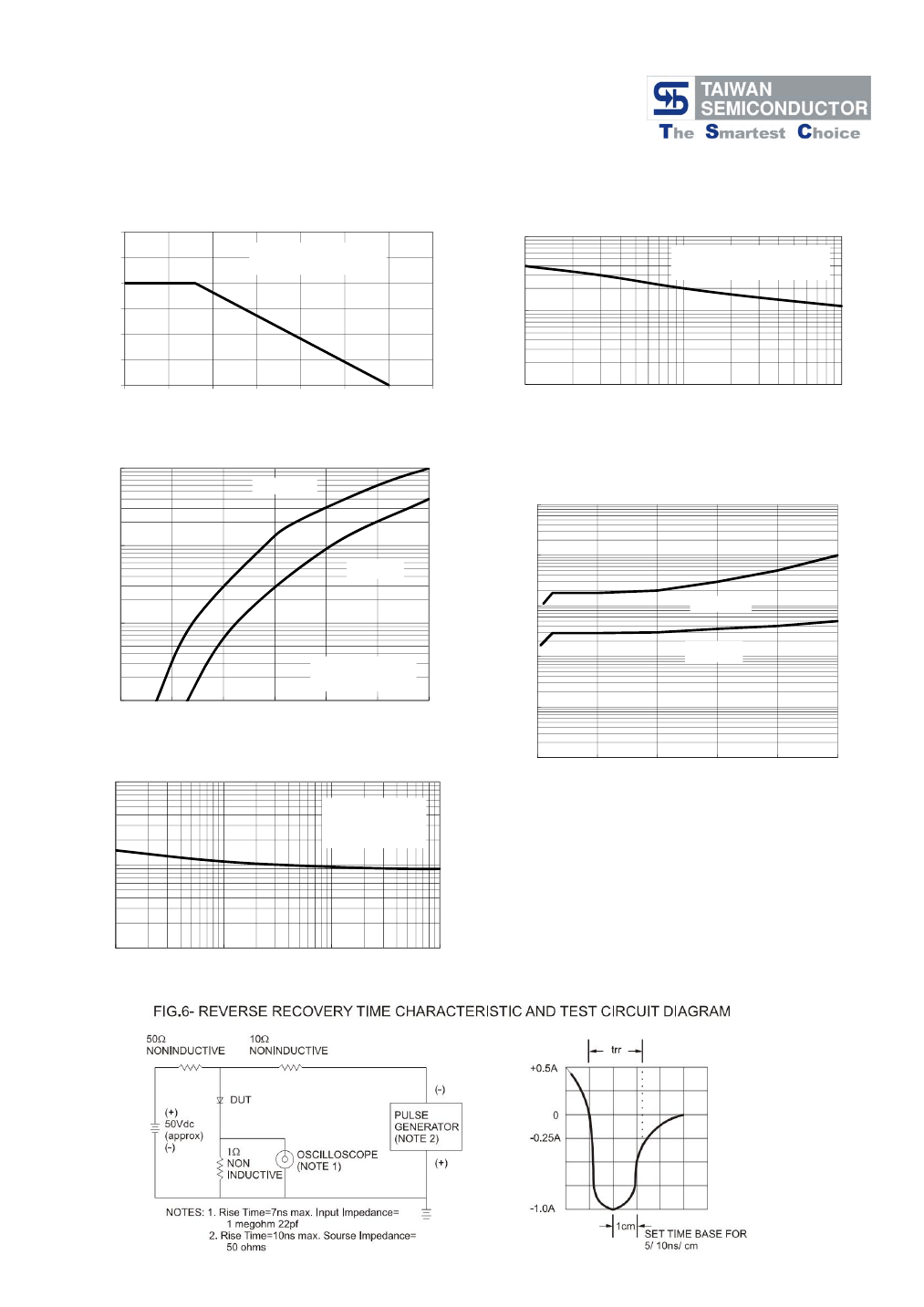

RATINGS AND CHARACTERISTIC CURVES (UG06A THRU UG06D)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD RECTIFIED
CURRENT (A)
FIG. 2- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
100
0.9
0.6
0.45
0.3
0.15
0
0
25
50
75
100
125
150
175
LEAD TEMPERATURE (
o
C)
PEAK FORWARD SURGE
CURRENT (A)
0.75
RESISTIVE OR
INDUCTIVE LOAD
8.3ms Single Half Sin Wave
JEDEC Method
10
1
1
10
100
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
TA=100℃
1000
INSTANTANEOUS REVERSE CURRENT (uA)
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
10
100
TA=50℃
10
TA=100℃
1
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
1.0
1.2
FORWARD VOLTAGE (V)
1.4
1.6
1
TA=50℃
0.1
FIG. 5- TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
TA=25
o
C
f=1.0MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
Version:D13
