UG06A - UG06D
Taiwan Semiconductor
CREAT BY ART

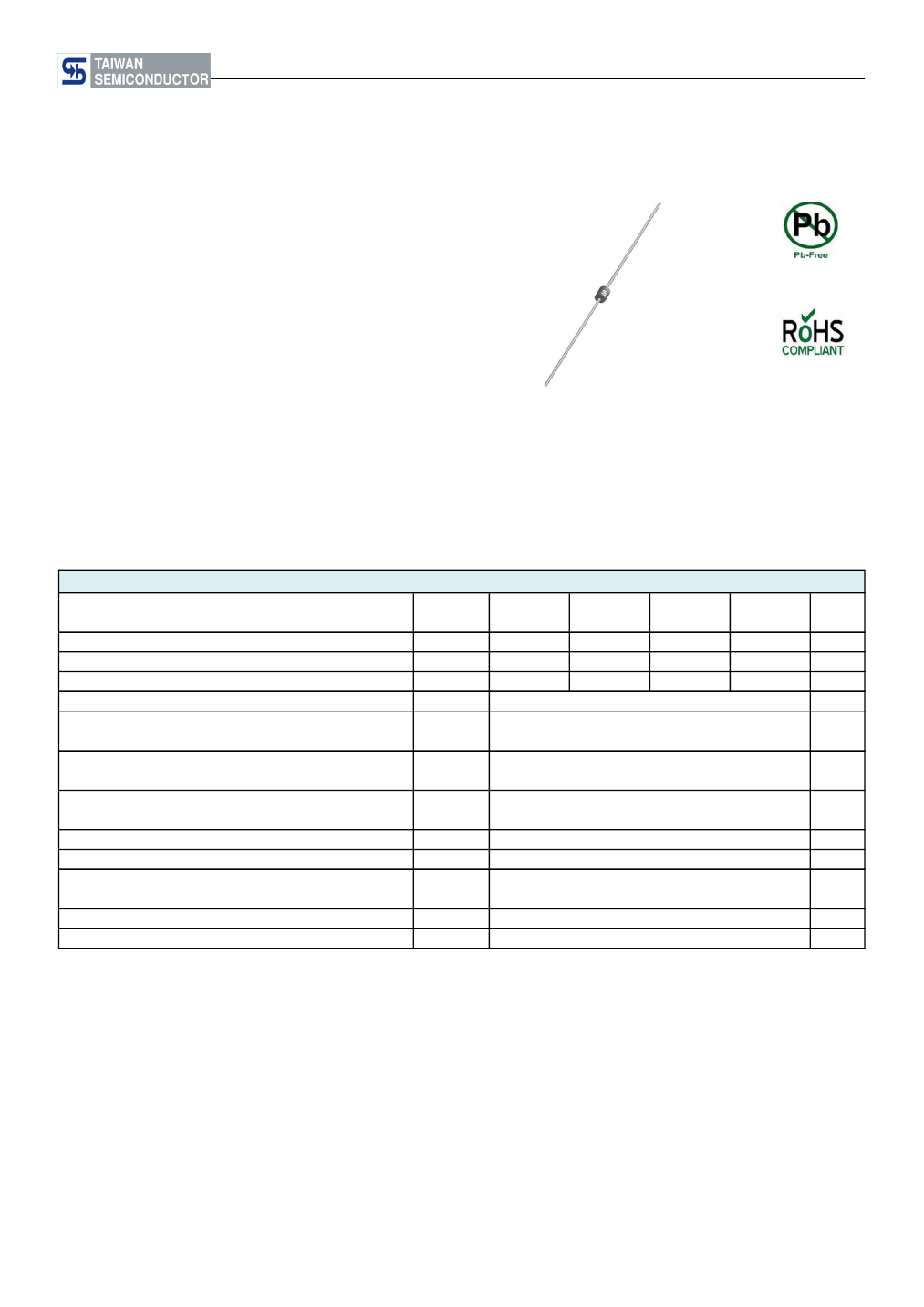

0.6A, 50V - 200V Glass Passivated Ultra Fast Rectifiers
FEATURES
- Glass passivated chip junction
- Ultrafast recovery time for high efficiency
- Excellent high temperature switching
- Ideally suited for use in very high frequency
switching power supplies, inverters and as free
wheeling diodes
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
TS-1
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
0.2g (approximately)
TS-1
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 0.6 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
UG06A
50
25
50
UG06B
100
70
100
0.6
40
0.95
5
150
15
9
28
97
- 55 to +150
- 55 to +150
UG06C
150
105
150
UG06D
200
140
200
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D1407024
Version: F15
UG06A - UG06D
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
UG06x
(Note 1)
PACKING
CODE
A0
H
A1
R0
B0
Note 1: "x" defines voltage from 50V (UG06A) to 200V (UG06D)
*: Optional available
G
PACKING CODE
SUFFIX
(*)
PACKAGE
TS-1
TS-1
TS-1
TS-1
PACKING
3,000 / Ammo box (52mm taping)
3,000 / Ammo box (26mm taping)
5,000 / 13" Paper reel
1,000 / Bulk packing
EXAMPLE
PREFERRED P/N
UG06DHA0G
PART NO.
UG06D
PART NO.
SUFFIX
H
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

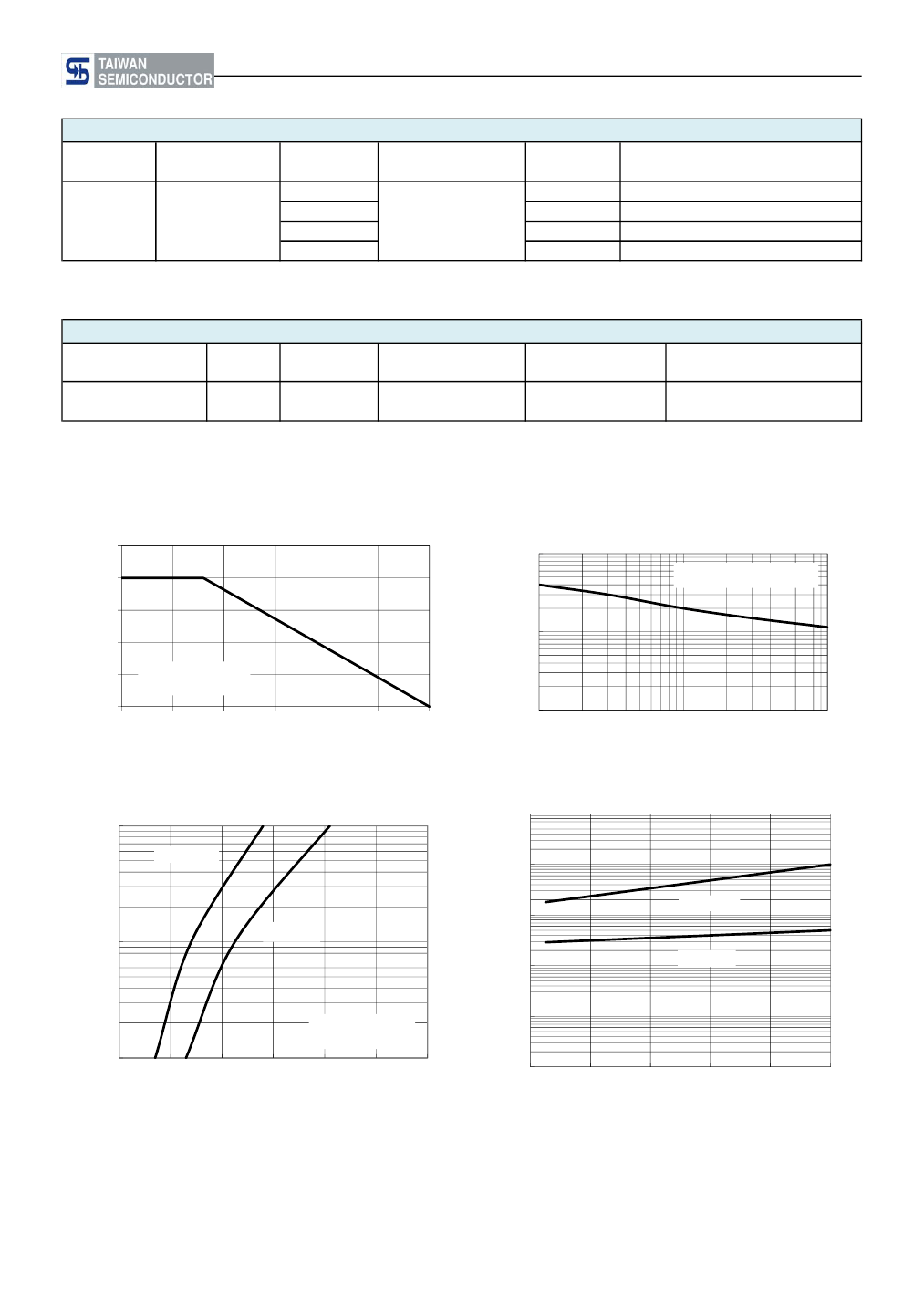

FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD RECTIFIED
CURRENT (A)
FIG. 2 MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
100
0.75
0.6
PEAK FORWARD SURGE
CURRENT (A)
8.3ms Single Half Sin Wave
0.45
0.3
10
0.15
0
0
RESISTIVE OR
INDUCTIVE LOAD
25
50
75
100
(
°
C)
125
150
1
1
10
100
LEAD TEMPERATURE
NUMBER OF CYCLES AT 60 Hz
10
FIG. 3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS FORWARD CURRENT (A)
T
J
=100
°
C
100
10
T
J
=100
°
C
1
T
J
=50
°
C
1
T
J
=50
°
C
Pulse Width=300μs
1% Duty Cycle
0.1
0.4
0.6
0.8
1.0
1.2
FORWARD VOLTAGE (V)
1.4
1.6
0.1
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1407024
Version: F15
UG06A - UG06D
Taiwan Semiconductor
CREAT BY ART

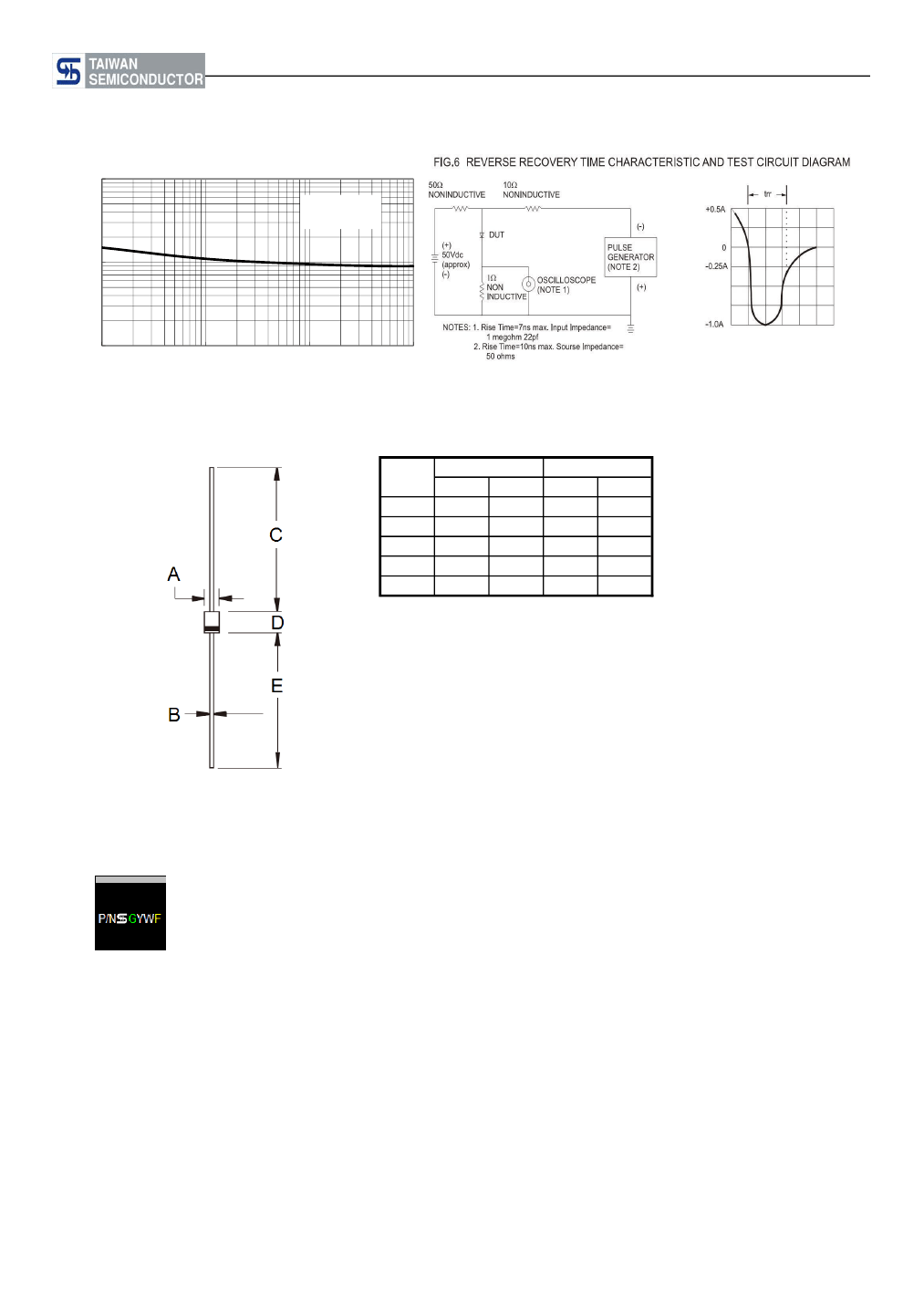

FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
f=1.0MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
TS-1
DIM.
A
B
C
D
E
Unit (mm)
Min
2.00
0.53
25.40
3.00
25.40
Max
2.70
0.64
-
3.30
-
Unit (inch)
Min
0.079
0.021
1.000
0.118
1.000
Max
0.106
0.025
-
0.130
-
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1407024
Version: F15
UG06A - UG06D
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1407024
Version: F15
