DDM-24P7S-1AFN-A191-A197 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DDM-24P7S-1AFN-A191-A197

DDM-24P7S-1AFN-A191-A197: DescriptionD Subminiature Connector, 24 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DDM-24P7S-1AFN-A191-A197 Overview

D Subminiature Connector, 24 Contact(s), Female, Solder Terminal,

DDM-24P7S-1AFN-A191-A197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

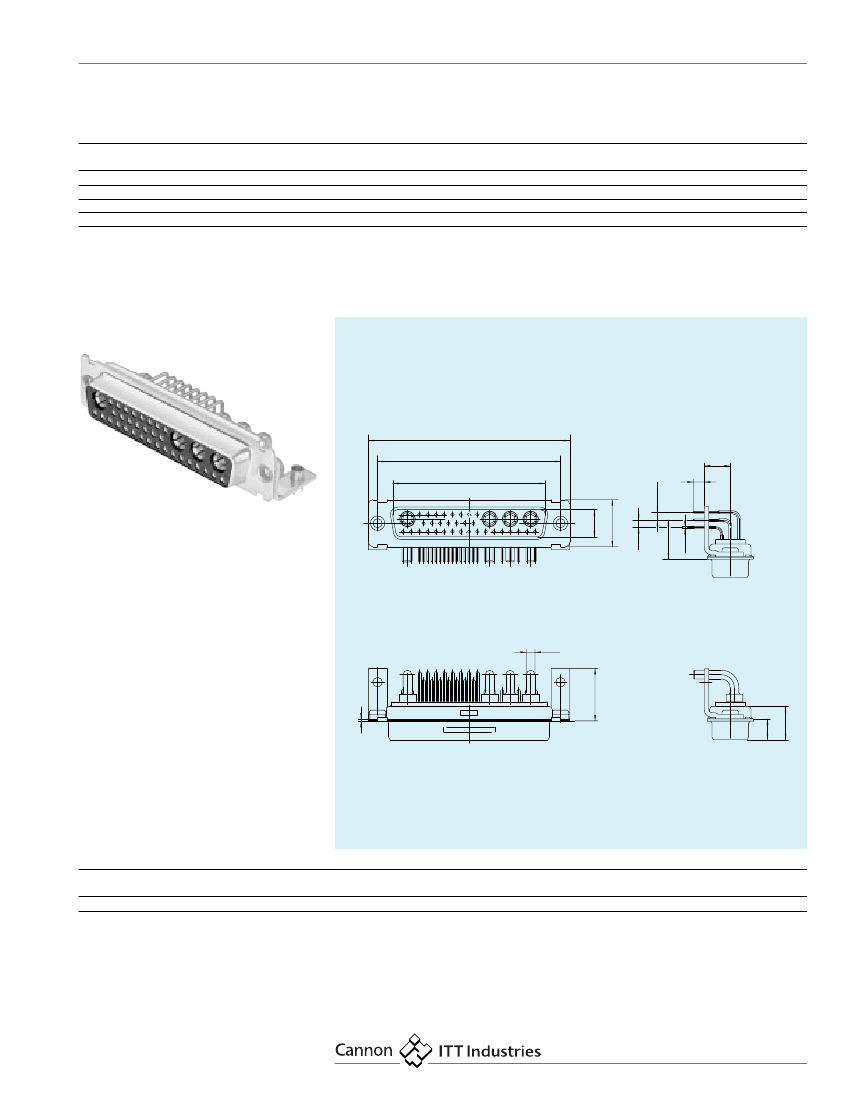

D Subminiature

40 A High power 90° – European footprint, size DD, with metal bracket

Part numbers with metal bracket and

captive nut M3

Shell Layout

size

P/N without pushfit

P/N with pushfit

Combo D

/European Version

Part numbers with metal bracket with

bushing diam. 3,05

P/N without pushfit

P/N with pushfit

Part numbers with metal bracket

with post M3

P/N without pushfit

P/N with pushfit

24W7

36W4

43W2

47W1

DDM-24P7S-1A9N-A191-A197

DDM-36P4S-1A9N-A191-A197

DDM-43P2S-1A9N-A191-A197

DDM-47P1S-1A9N-A191-A197

DDM-24P7S-1A9N-A191-A197-146

DDM-36P4S-1A9N-A191-A197-146

DDM-43P2S-1A9N-A191-A197-146

DDM-47P1S-1A9N-A191-A197-146

DDM-24P7S-1AFN-A191-A197

DDM-36P4S-1AFN-A191-A197

DDM-43P2S-1AFN-A191-A197

DDM-47P1S-1AFN-A191-A197

DDM-24P7S-1AFN-A191-A197-146

DDM-36P4S-1AFN-A191-A197-146

DDM-43P2S-1AFN-A191-A197-146

DDM-47P1S-1AFN-A191-A197-146

DDM-24P7S-1AHN-A191-A197

DDM-36P4S-1AHN-A191-A197

DDM-43P2S-1AHN-A191-A197

DDM-47P1S-1AHN-A191-A197

DDM-24P7S-1AHN-A191-A197-146

DDM-36P4S-1AHN-A191-A197-146

DDM-43P2S-1AHN-A191-A197-146

DDM-47P1S-1AHN-A191-A197-146

For performance class 1 replace A191 with A190.

For performance class 3 delete A191.

For captive nut 4-40 UNC thread replace 1A9N with 1A7N and

1AHN with 1A8N.

For pushfit 90° pcb hole diameter 3,2 mm replace 146

with 162.

Socket

2,54

8,7

3,7

±0,3

±0,15

ITT

CANNON

36W4P

Ø 2,9

17,5

±0,2

13,1

±0,20

Ø 0,6

2,54

For contact cavity arrangements, see page 53.

For pcb hole pattern, see page 72 – 75.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

Dimensions

Shell

size

0,38

0,13

52,4

0,13

0,25

0,2

0,4

66,95

61,1

10,75

15,4

10,9

0,8

6,95

DDM-24P7S-1AFN-A191-A197 Related Products

	DDM-24P7S-1AFN-A191-A197	DDM-24P7S-1AHN-A191-A197-146	DDM-24P7S-1AHN-A191-A197	DDM-43P2S-1AFN-A191-A197-146	DDM-43P2S-1AFN-A191-A197	DDM-43P2S-1AHN-A191-A197-146	DDM-43P2S-1AHN-A191-A197	DDM-43P2S-1A9N-A191-A197-146	DDM-43P2S-1A9N-A191-A197	DDM-24P7S-1AFN-A191-A197-146
Description	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D	5/D	5/D	5/D	5/D	5/D	5/D	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	24	24	43	43	43	43	43	43	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	ITT	-	-	ITT	ITT	ITT	ITT	ITT	ITT	ITT
Manufacturer's serial number	-	-	-	DDM	DDM	DDM	DDM	DDM	DDM	-
