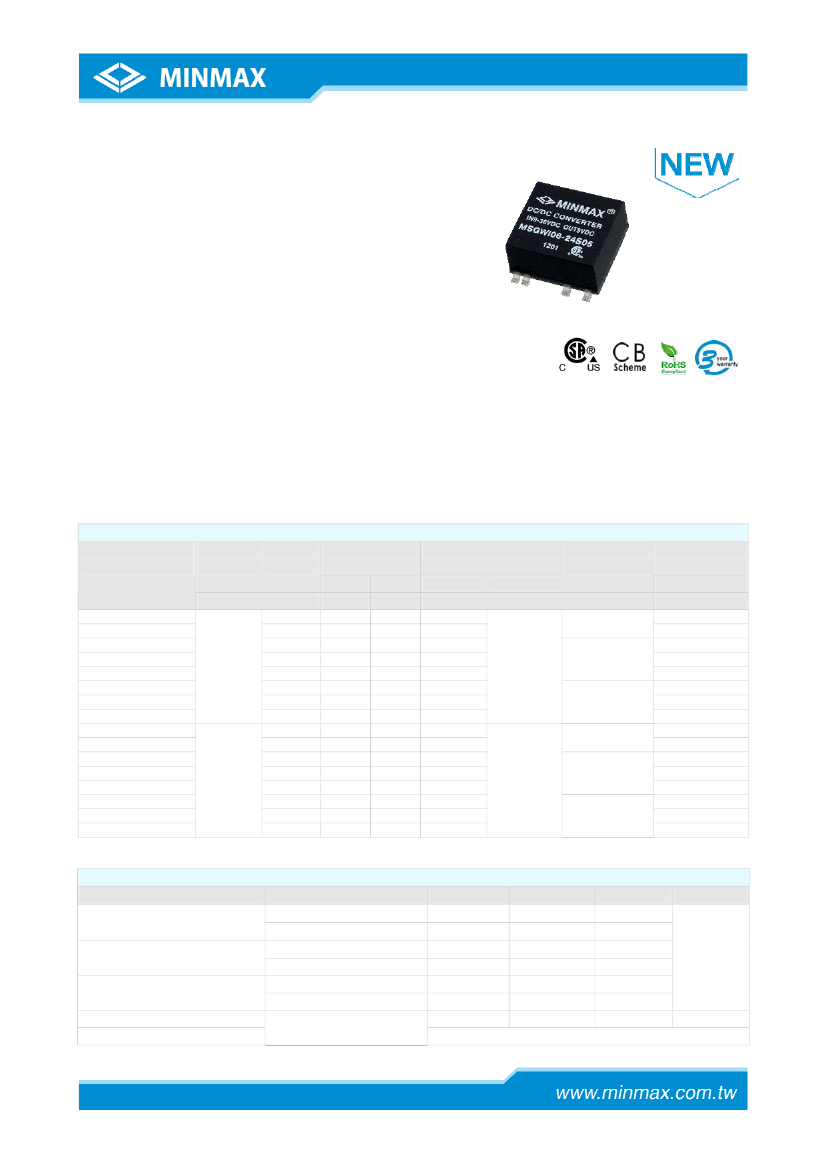

The MINMAX MSGWI06 series is a new range of isolated 6W DC/DC converter modules featuring fully regulated output voltages and ultra-wide 4:1 input
voltage ranges. These products are with a very small footprint occupying just 4.5cm2 (0.7 square in.) on PCB. All models are qualified for lead free reflow
solder processes according IPC J-STD-020D.An excellent efficiency allows an operating temperature range of –40° to +80°C. Further features include
remote On/Off control and over load protection.
The very compact dimensions of these DC/DC converters make them an ideal solution for many space critical applications in battery-powered equipment
and instrumentation.
Model Selection Guide
Model
Number
Input
Voltage
(Range)
VDC
MSGWI06-24S033
MSGWI06-24S05
MSGWI06-24S12
MSGWI06-24S15
MSGWI06-24S24
MSGWI06-24D05
MSGWI06-24D12
MSGWI06-24D15
MSGWI06-48S033
MSGWI06-48S05
MSGWI06-48S12
MSGWI06-48S15
MSGWI06-48S24
MSGWI06-48D05
MSGWI06-48D12
MSGWI06-48D15
VDC
3.3
5
12
15
24
±5
±12
±15
3.3
5
12
15
24
±5
±12
±15
Output
Voltage
Max.
mA
1450
1200
500
400
250
±600
±250
±200
1450
1200
500
400
250
±600
±250
±200
Output
Current
Min.
mA
218
180
75
60
38
±90
±38
±30
218
180
75
60
38
±90
±38
±30
@Max. Load
mA(typ.)
262
316
301
301
301
301
301
301
131
158
151
151
151
151
151
151
@No Load
mA(typ.)
μF
330
100
Input Current
Max. capacitive
Load
Efficiency
(typ.)
@Max. Load
%
76
79
83
83
83
82
83
83
76
79
83
83
83
82
83
83
24
(9 ~ 36)
30
100#
330
100
48
(18 ~ 75)
20
100#
# For each output
Input Specifications
Parameter
Input Surge Voltage (1 sec. max.)
Start-Up Threshold Voltage
Under Voltage Shutdown
Short Circuit Input Power
Conducted EMI
E-mail:sales@minmax.com.tw
Model
24V Input Models
48V Input Models
24V Input Models
48V Input Models
24V Input Models
48V Input Models
All Models
Min.
-0.7
-0.7
---
---
---
---
---
Typ.
---
---
---
---
---
---
---
Max.
50
100
9
18
8.5
17
3000
mW
VDC
Unit
Compliance to EN 55022,class A and FCC part 15,class A
Operating Ambient Temperature Range (See Power Derating Curve)
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for 10Sec.)
Conditions
Natural Convection
Min.
-40
---
-50
---
Free-Air convection
---
Max.
+80
+105
+125
95
260
Unit
℃
℃
℃
% rel. H
℃

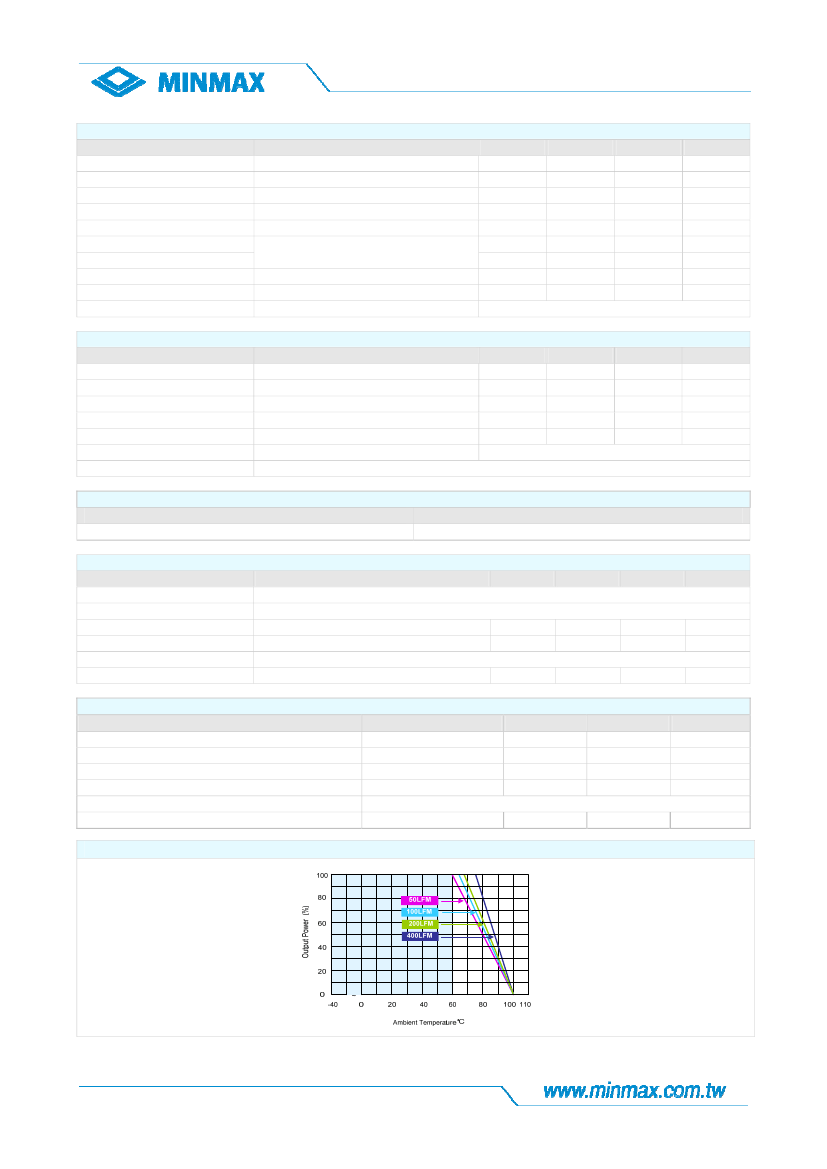

Power Derating Curve
E-mail:sales@minmax.com.tw
Tel:886-6-2923150
2012/07/16 REV:9
Page 2 of 4
®
MSGWI06 SERIES
DC/DC CONVERTER 6W,
SMD Package
Notes
1
2
3
4
5
6
7
8
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%
Ripple & Noise measurement bandwidth is 0-20MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not damage these modules;
however, they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
Other input and output voltage may be available, please contact factory.
It is not recommended to use water-washing process on SMT units.
Specifications are subject to change without notice.
Package Specifications
Mechanical Dimensions
Connecting Pin Patterns
17.78 [0.70]
22.0 [0.87]
2.11
[0.08]
12.7 [0.5]
5.08
[0.2]
5.08 [0.20]
3.0 [0.12]
16
11
9
20.3 [0.8]
1 2
6
8
2.54 [0.10]
1.9 [0.07]
2.54 [0.1]
1.5 [0.06]
10.05 [0.4]
10.2 0.5
[0.4 0.02]
25.4 [1.0]
27.0 [1.06]
S SEATING
PLANE
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
►Pins
±0.05(±0.002)
0.15
[0.01]
0~
4
0.1 S
Pin Connections
Pin
1
2
6
8
9
11
16
Single Output
Remote On/Off
-Vin
NC
NC
+Vout
-Vout
+Vin
NC: No Connection
Dual Output
Remote On/Off
-Vin
Common
-Vout
+Vout
Common
+Vin
Physical Characteristics
Case Size
Case Material
Pin Material
Weight
:
:
:
:
22.0x20.3x10.2 mm (0.87x0.8x0.4 inches)
Non-Conductive Black Plastic (flammability to UL 94V-0 rated)
Phosphor bronze
7.8g
E-mail:sales@minmax.com.tw
Tel:886-6-2923150
2012/07/16 REV:9
Page 3 of 4
®
MSGWI06 SERIES
DC/DC CONVERTER 6W,
SMD Package
Test Setup
Peak-to-Peak Output Noise Measurement Test
Use a Cout 0.47μF ceramic capacitor. Scope measurement should be made by using a BNC socket, measurement bandwidth is 0-20 MHz. Position the load between
50 mm and 75 mm from the DC/DC Converter.
+Vin
Single Output
DC / DC
Converter
-Vin
-Out
+Out
Copper Strip
Cout
Copper Strip
Resistive
Scope
Load
+Vin
Dual Output
DC / DC
Converter
-Vin
+Out
Com.
-Out
Copper Strip
Cout
Copper Strip
Cout
Copper Strip
Scope
Scope
Resistive
Load
Technical Notes
Remote On/Off
Positive logic remote on/off turns the module on during a logic high voltage on the remote on/off pin, and off during a logic low. To turn the power module on and off,
the user must supply a switch to control the voltage between the on/off terminal and the -Vin terminal. The switch can be an open collector or equivalent.
A logic low is -0.7V to 0.8V. A logic high is 2.5V to 50V. he maximum sink current of the switch at on/off terminal during a logic low is -500
μA.
The maximum sink current of the switch at on/off terminal during a logic high is 500μA or open.
Overcurrent Protection
To provide protection in a fault (output overload) condition, the unit is equipped with internal current limiting circuitry and can endure current limiting for an unlimited
duration. At the point of current-limit inception, the unit shifts from voltage control to current control. The unit operates normally once the output current is brought back
into its specified range.
Input Source Impedance
The power module should be connected to a low ac-impedance input source. Highly inductive source impedances can affect the stability of the power module.
In applications where power is supplied over long lines and output loading is high, it may be necessary to use a capacitor at the input to ensure startup.
Capacitor mounted close to the power module helps ensure stability of the unit, it is recommended to use a good quality low Equivalent Series Resistance (ESR <
1.0Ω at 100 KHz) capacitor of a 4.7μF for the 24V input devices and a 2.2μF for the 48V devices.
+
DC Power
Source
-
+
Cin
-Vin
-Out
+Vin
DC / DC
Converter
+Out
Load
Output Ripple Reduction
A good quality low ESR capacitor placed as close as practicable across the load will give the best ripple and noise performance. To reduce output ripple, it is
recommended to use 3.3μF capacitors at the output.
+
DC Power
Source
-
-Vin
+Vin
Single Output
DC / DC
Converter
-Out
+Out
+
DC Power
Source
-
+Vin
+Out
Dual Output
DC / DC
Com.
Converter
Cout
Cout
Load
Load
Cout
Load
-Vin
-Out
Maximum Capacitive Load
The MSGWI06 series has limitation of maximum connected capacitance at the output. The power module may be operated in current limiting mode during start-up,
affecting the ramp-up and the startup time. The maximum capacitance can be found in the data sheet.
Thermal Considerations
Many conditions affect the thermal performance of the power module, such as orientation, airflow over the module and board spacing. To avoid exceeding the
maximum temperature rating of the components inside the power module, the case temperature must be kept below 105℃. The derating curves are determined from
measurements obtained in a test setup.
Position of air velocity
probe and thermocouple
15mm / 0.6in
50mm / 2in
Air Flow
DUT
