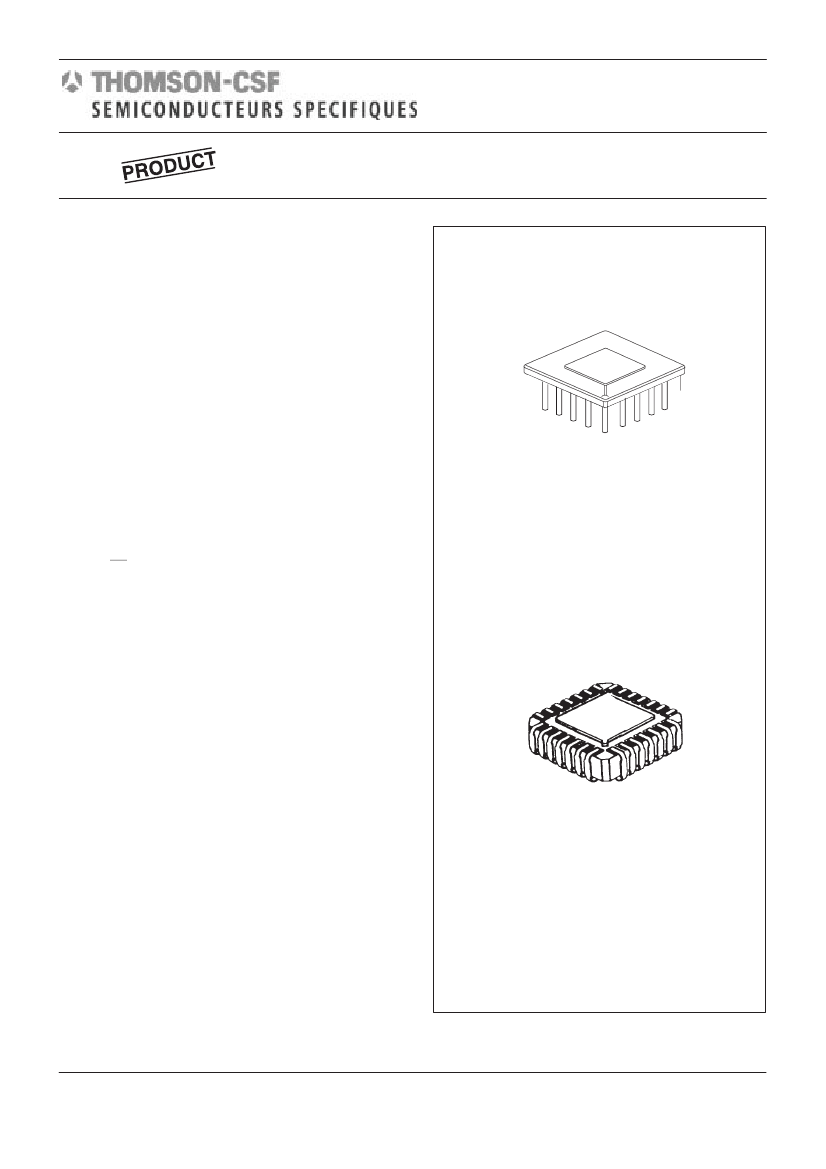

TS88915T

LOW SKEW CMOS PLL CLOCK DRIVER

3-State 70 and 100 MHz Versions

DESCRIPTION

The TS88915T Clock Driver utilizes a phazed–locked loop

(PLL) technology to lock its low skew outputs’ frequency and

phase onto an input reference clock. It is designed to provide

clock distribution for high performance microprocessors such

as TS68040, TSPC603E,TSPC603P,TSPC603R, PCI bridge,

RAM’s, MMU’s...

MAIN FEATURES

Vcc = 5V

5 %

MILITARY TEMPERATURE RANGE

TS68040 FULL COMPATIBLE

FIVE LOW SKEW OUTPUTS

Five Outputs (Q0-Q4) with Output–to–Output skew < 500

ps each being phase end frequency locked to the SYNC

input.

ADDITIONAL OUTPUTS

Three additional outputs are available :

– The 2X_Q output runs twice the system ”Q” frequency.

– The Q/2 output runs at 1/2 the system ”Q” frequency.

– The Q5 output is inverted (180° phase shift).

TWO SELECTABLE CLOCK INPUTS

– Two selectable CLOCK inputs are available for test or

redundancy purposes.

– Test Mode pin (PLL_EN) provided for low frequency test-

ing.

– All outputs can go into high impedance (3-state) for board

test purpose.

INPUT FREQUENCY RANGE FROM 5MHz to 2X_Q

FMAX

THREE INPUT/OUTPUT RATIOS

Input/Output phase–locked frequency ratios of 1:2, 1:1 and

2:1 are available.

LOW PART-TO-PART SKEW

The phase variation from part–to–part between the SYNC

and FEEDBACK inputs is less than 550 ps (derived from the

specification, which defines the part-to-part skew).

CMOS AND TTL COMPATIBLE

– All outputs can drive either CMOS or TTL inputs.

– All inputs are TTL-level compatible.

LOCK Indicator (LOCK) indicated a phase–locked

state.

R Suffix

PGA 29

Ceramic Pin grid array

W suffix

LDCC 28

Leaded Ceramic Chip Carrier

SCREENING / QUALITY

This product is manufactured :

based upon the generic flow of MIL–STD–883.

or according to TCS standard.

April 1999

1/20
