Low PIM N Female to 7/16 DIN Female Adapter Low VSWR
TECHNICAL DATA SHEET
Low PIM N Female to 7/16 DIN Female Adapter Low VSWR
PE91033
• PIM levels <-165 dBc
• Low VSWR levels up to 8GHz
• Tri-metal coating provides a durable surface with good corrosion protection abrasion resistance and superior
electrical contact properties.
• Available in various connector combinations including 7/16 DIN in-series, Type N in-series, and 7/16 DIN to Type N
and SMA between series
• 4-hole flange and bulkhead mount styles available
• Ideal choice for use in portable PIM testing applications
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
N Female
50 Ohms
MIL-STD-348
7/16 DIN Female
50 Ohms
IEC 169-4 (0.232 dia. Enhancement)
Low PIM
Straight
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Group Delay, ps
Dielectric Withstanding Voltage, Vrms
Maximum Passive Intermodulation (2 x 20 Watts), dBc
Frequency 1
Frequency, MHz
VSWR
Return Loss, dB
Frequency 2
Frequency, GHz
VSWR
Return Loss, dB
Frequency 3
Frequency, GHz
VSWR
Return Loss, dB
DC to 8
1.23:1
225
1,000
-165
DC to 1,000
1.04:1
36
1 to 4
1.12:1
25
4 to 8
1.23:1
20
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low PIM N Female to 7/16 DIN Female Adapter Low VSWR PE91033
PE91033 REV A
1
Low PIM N Female to 7/16 DIN Female Adapter Low VSWR
TECHNICAL DATA SHEET
Mechanical Specifications
Temperature
Operating Range,deg C

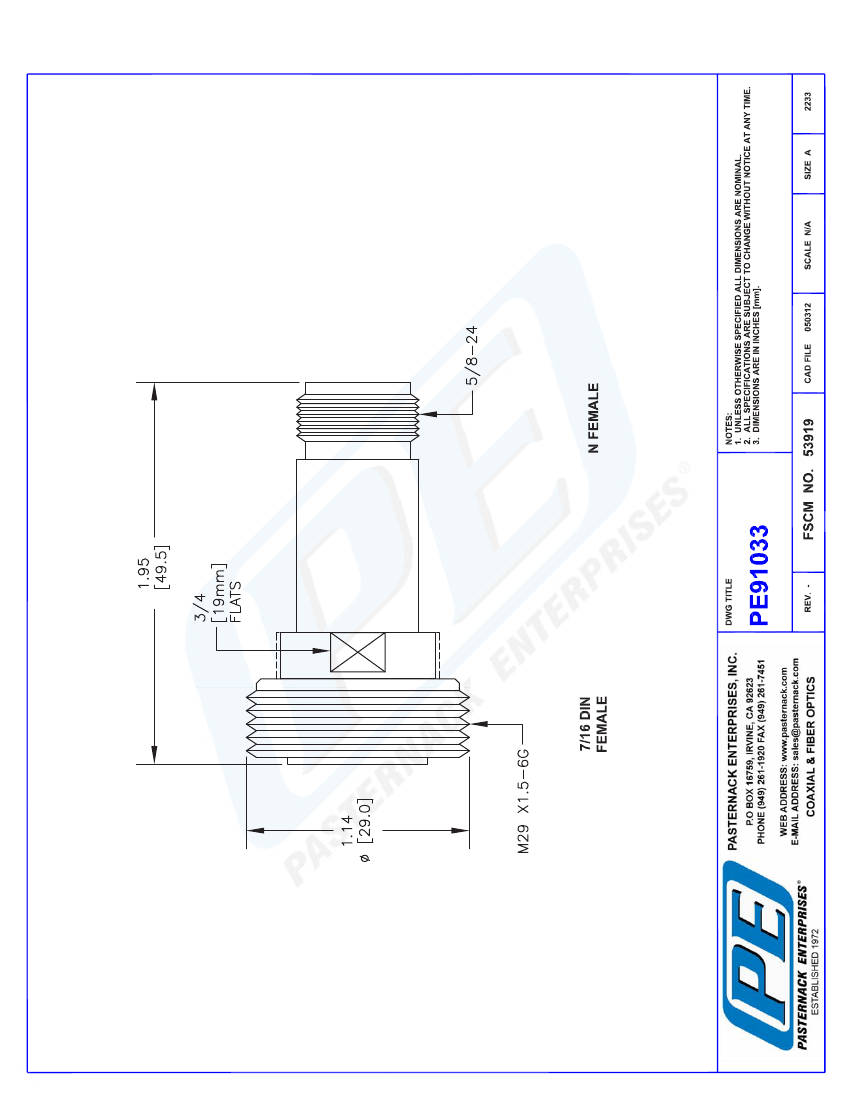

Size
Length, in [mm]
Width/Dia., in [mm]
.
PE91033
-55 to +155
1.95 [49.53]
1.142 [29.01]
0.19 [86.18]
N Female
500
Beryllium Copper, Silver
200 [5] µ in. [µm] minimum
Brass, Tri-Metal
100 [2.54] µ in. [µm] minimum
PTFE
7/16 DIN Female
500
Beryllium Copper, Silver
200 [5] µ in. [µm] minimum
Brass, Tri-Metal
100 [2.54] µ in. [µm] minimum
PTFE
Weight, lbs [g]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Low PIM N Female to 7/16 DIN Female Adapter Low VSWR from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low PIM N Female to 7/16 DIN Female Adapter Low VSWR PE91033
URL: http://www.pasternack.com/n-female-7-16-female-straight-adapter-pe91033-p.aspx
PE91033 REV A
2
