Precision 7/16 DIN Male to 7/16 DIN Male Adapter Low PIM,
Low VSWR
PE91039
7/16 DIN Male to 7/16 DIN Male Low PIM, Low VSWR Precision Adapters
• PIM levels <-165 dBc
• Low VSWR levels up to 8 GHz.
• Tri-metal Albaloy coating
- durable surface with good corrosion protection
- abrasion resistance
- superior electrical contact properties.
• Available is various connector combinations
- 7/16 DIN in-series
- Type N in-series
- 7/16 DIN to Type N and SMA in-between series
• 4-hole flange and bulkhead-mounted styles available
• Ideal choice for use in portable PIM testing
Configuration
Connector 1
Connector 2
Adapter Design
Body Style
7/16 DIN Male
7/16 DIN Male
Precision
Straight
Electrical Specifications
Frequency Range (GHz)
Impedance (Ohms)
VSWR, Max
Dielectric Withstanding Voltage (Vrms)
Passive Intermodulation ((<-) dBc @ 2 x 20 Watts)
Frequency 1
Frequency (GHz)
VSWR
Return Loss (dB)
Frequency 2
Frequency (GHz)
VSWR
Return Loss (dB)
Frequency 3
Frequency (GHz)
VSWR
Return Loss (dB)
DC to 8
50
1.2:1
3500
-165
DC to 1
1.03:1
38
1 to 5
1.08:1
28
5 to 8
1.2:1
21
Click the following link for the additional product information:
Precision 7/16 DIN Male to 7/16 DIN Male Adapter Low PIM, Low VSWR PE91039
Version C - Revision - © 2011 Pasternack Enterprises All Rights Reserved.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
1
Precision 7/16 DIN Male to 7/16 DIN Male Adapter Low PIM,
Low VSWR
PE91039

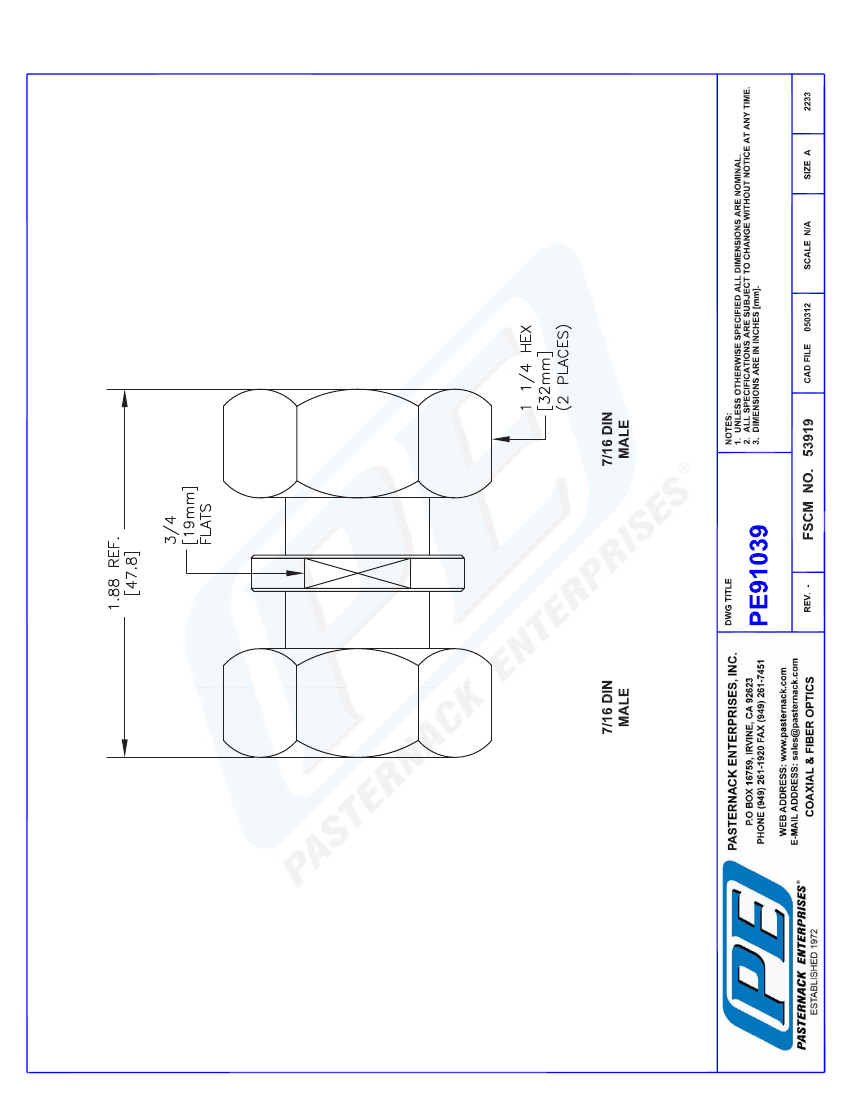

Mechanical Specifications
Temperature Operating Range (deg C)
Weight (lbs)
Length (inches)
Width/Dia. (inches)
Dielectric Type
Connector 1
Hex Size (mm)
Torque (ft-lb)
Mating Cycles
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Connector 2
Hex Size (mm)
Torque (ft-lb)
Mating Cycles
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
-55 to +155
0.35
1.88
1.37
PTFE
7/16 DIN Male
32
18.4
500
Brass, Silver, 5µm
Brass, Tri Metal – Albaloy, 2.54µm
Brass, Tri Metal – Albaloy, 2.54µm
7/16 DIN Male
32
18.4
500
Brass, Silver, 5µm
Brass, Tri Metal – Albaloy, 2.54µm
Brass, Tri Metal – Albaloy, 2.54µm
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes, by exemption
Other Data
URL:
http://www.pasternack.com/7-16-male-7-16-male-straight-adapter-pe91039-p.aspx
Precision 7/16 DIN Male to 7/16 DIN Male Adapter Low PIM, Low VSWR
from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
