SSMA Male to BNC Female Adapter
TECHNICAL DATA SHEET
SSMA Male to BNC Female Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SSMA Male
50 Ohms
MIL-C-39012
BNC Female
50 Ohms
MIL-C-39012
Standard
Straight
PE91046
Mechanical Specifications

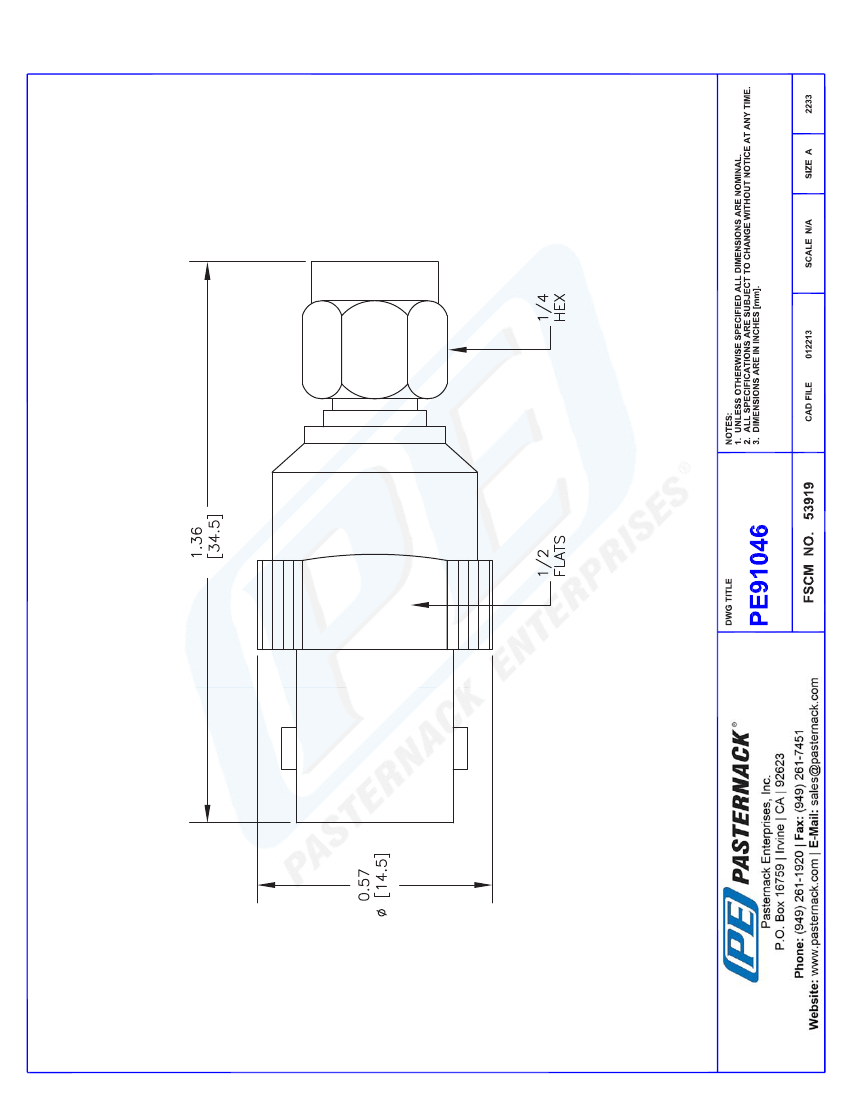

Size
Length, in [mm]
Width/Dia., in [mm]
.
1.36 [34.54]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SSMA Male
Gold
MIL-G-45204
Brass, Nickel
QQ-P-35
Brass, Nickel
QQ-P-35
Teflon
BNC Female
Gold
MIL-G-45204
QQ-P-35
Brass, Nickel
QQ-P-35
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMA Male to BNC Female Adapter PE91046
PE91046 REV
1
SSMA Male to BNC Female Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE91046
URL:
http://www.pasternack.com/ssma-male-bnc-female-straight-adapter-pe91046-p.aspx
SSMA Male to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
