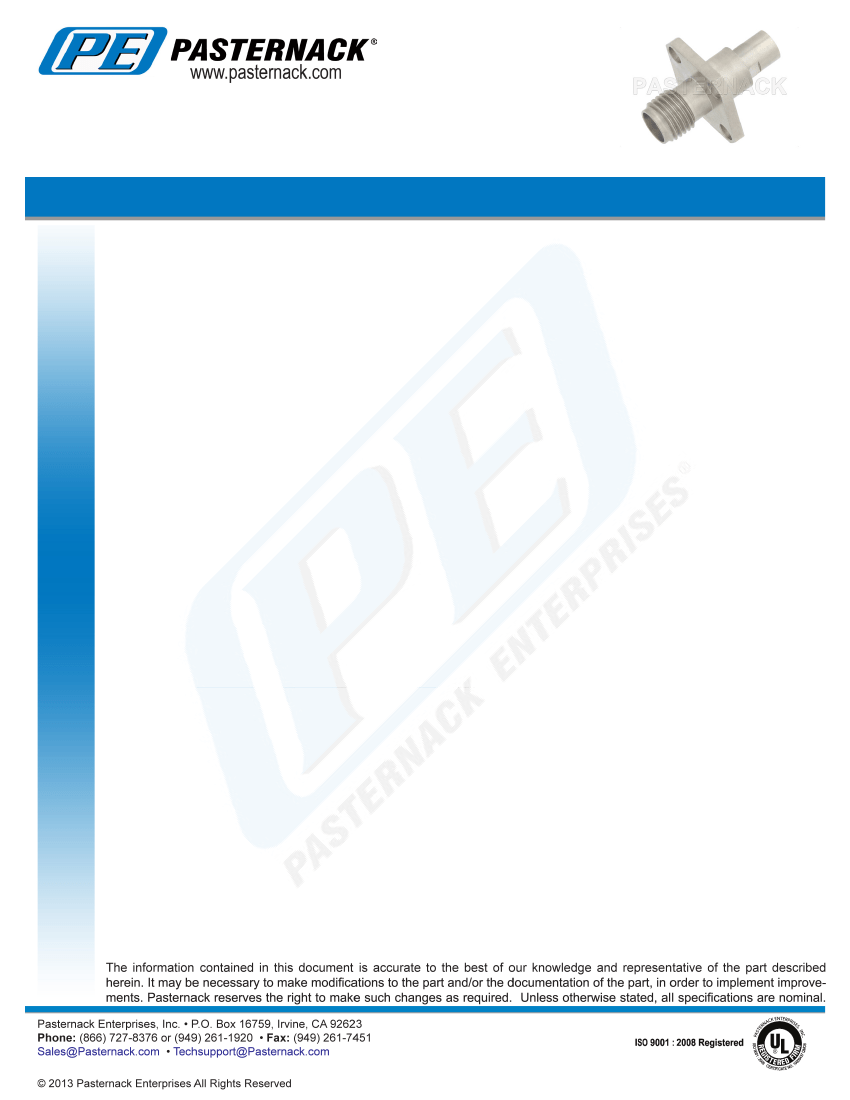

Precision SMA Female to SMP Male 4 Hole
Flange Adapter Full Detent
TECHNICAL DATA SHEET
Precision SMA Female to SMP Male 4 Hole Flange Adapter Full Detent
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
Mount Method
SMA Female
50 Ohms
MIL-STD-348
SMP Male
50 Ohms
DESC94007
Precision
Straight
4 Hole Flange
PE91059
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 26.5
1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C

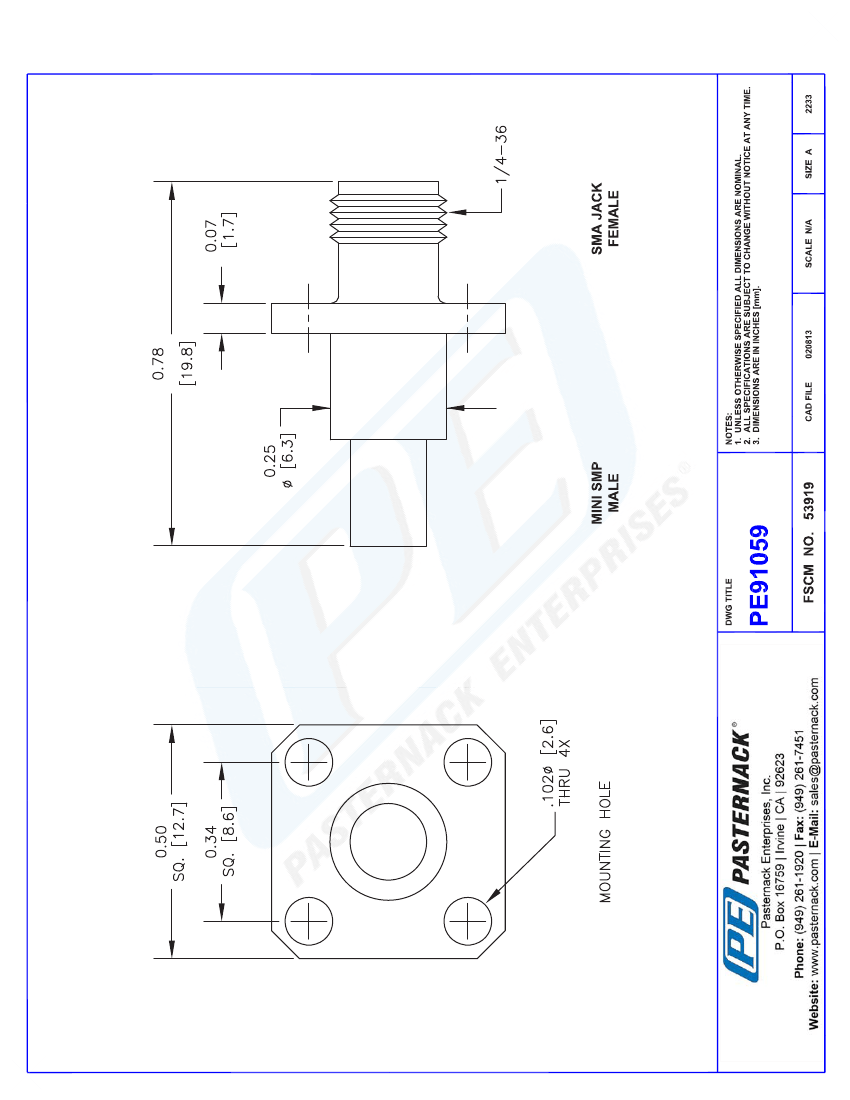

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +125
0.779 [19.79]
0.5 [12.7]
0.5 [12.7]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Female
100
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
SMP Male
100
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Female to SMP Male 4 Hole Flange Adapter Full Detent PE91059
PE91059 REV
1
Precision SMA Female to SMP Male 4
Hole Flange Adapter Full Detent
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE91059
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-smp-male-straight-adapter-pe91059-p.aspx
Precision SMA Female to SMP Male 4 Hole Flange Adapter Full Detent from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
PE91059 REV
2
