ACP-4010_12 Overview

4U Rackmount Chassis for ATX/CEB/EEB Motherboard or Full-size SHB/SBC with Dual System Support

Preview

Download Datasheet

View All

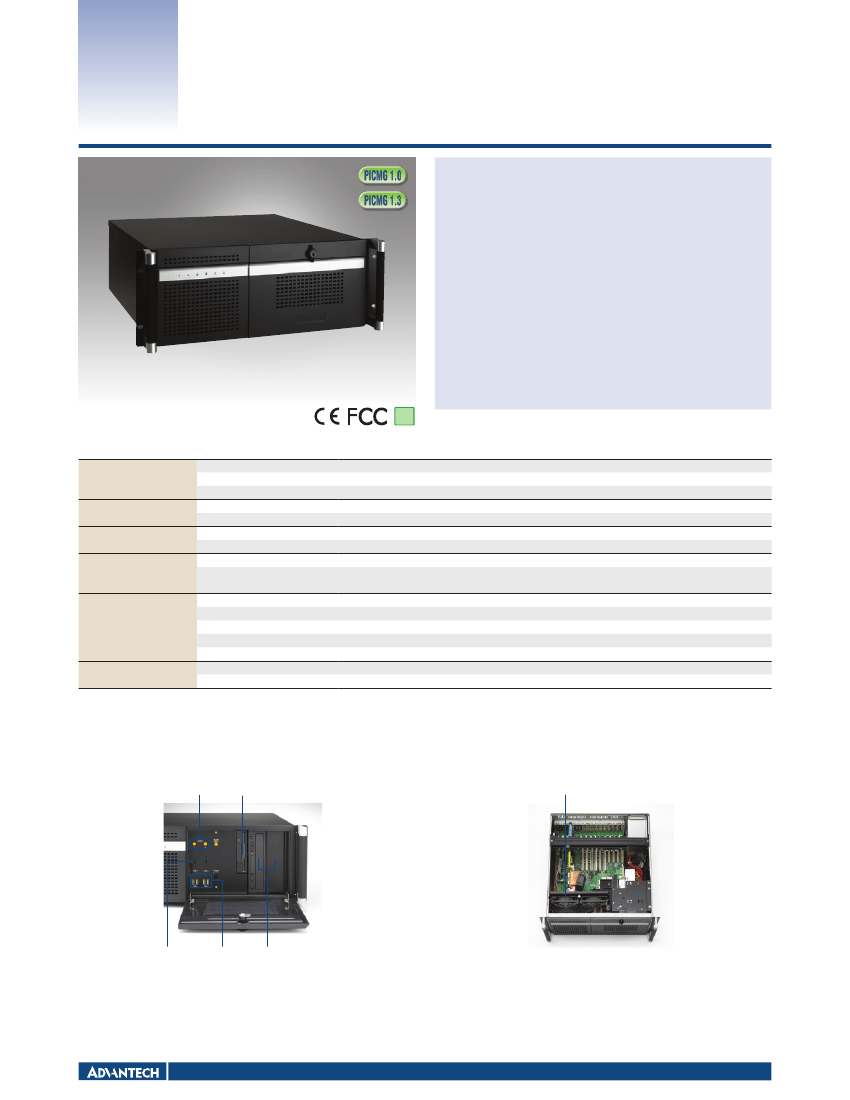

ACP-4010

4U Rackmount Chassis for

ATX/CEB/EEB Motherboard or Full-size

SHB/SBC with Dual System Support

Features

Supports either an ATX/CEB/EEB motherboard or a PICMG backplane with

up to 15 slots

Supports one or two systems in a single chassis

Supports up to two 5.25" and two 3.5" disk drives

LED indicators and alarm notification for system fault detection and network

connection

Lockable front door prevents unauthorized access

RoHS

COMPLIANT

2002/95/EC

Specifications

Front-accessible

Internal

2

-

1

2 (12 cm /85 CFM each)

Cooling

Yes

4

Front I/O Interface

2 (Reserved)

Power, HDD, temperature, fan, LAN1, and LAN2

Miscellaneous

Backplane version: One 9-pin D-Sub opening

Rear Panel

Motherboard version: Five 9-pin D-Sub and one 68-pin SCSI openings

Operating

Non-Operating

Temperature

0 ~ 40° C (32 ~ 104° F)

-20 ~ 60° C (-4 ~ 140° F)

Environment

Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Vibration (5 ~ 500 Hz)

1 Grms

2G

Shock

10 G (with 11 ms duration, half sine wave)

30 G

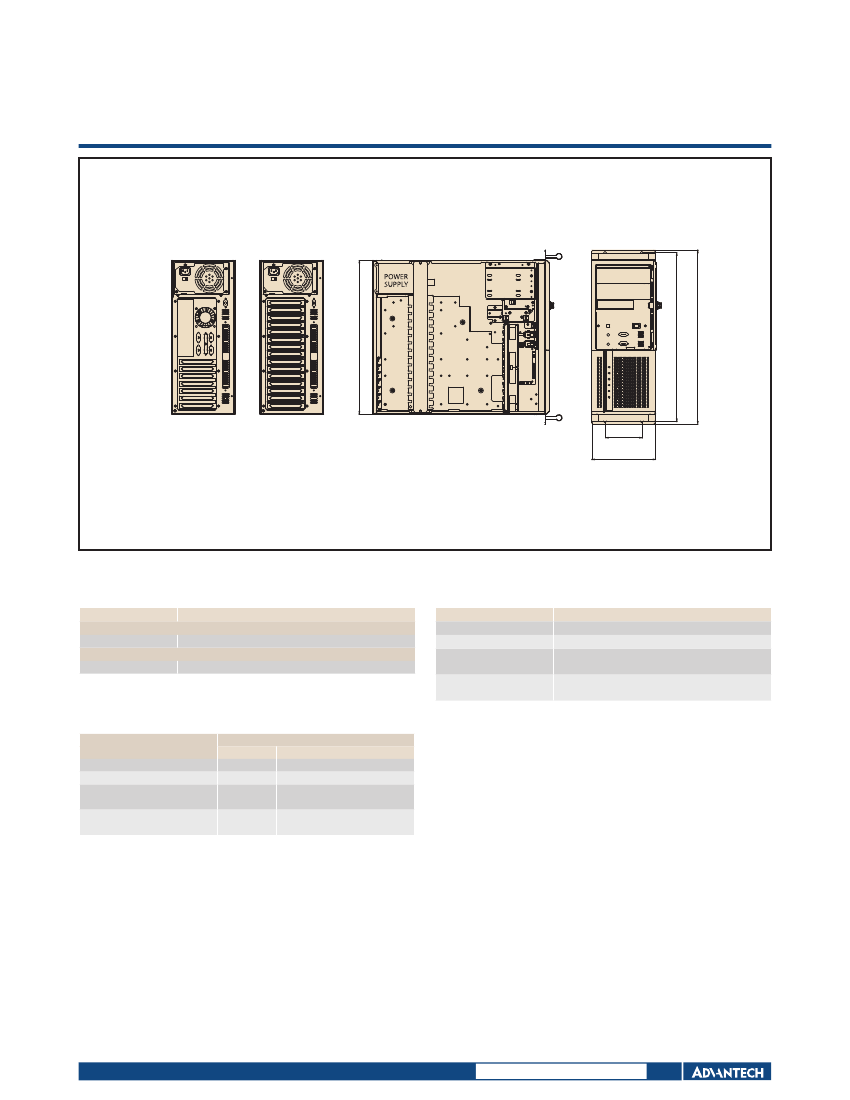

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7.0" x 18.9")

Physical Characteristics

Weight

16.6 kg (36.5 lb) / 17.6 kg (38.7 lb)

*Installation of all 15 full-size cards will sacrifice the two 3.5"disk drive bays for ACP-4010.

*While an EEB motherboard is installed in the chassis, only one 3.5" and two 5.25" disk drive bays are available.

Drive Bay

5.25"

3.5"

Fan

Air Filter

USB

9-pin D-Sub

LED Indicators

Front View

Two reset buttons Two 3.5" drive bays

(int. x 1 & ext. x 1)

for dual systems

Inside View

Easy-to-maintain dual fans

Two 9-pin D-Sub

openings reserved

Four USB Two 5.25"

ports

drive bays

Industrial Computer Chassis

All product specifications are subject to change without notice

Last updated : 20-Jun-2012
