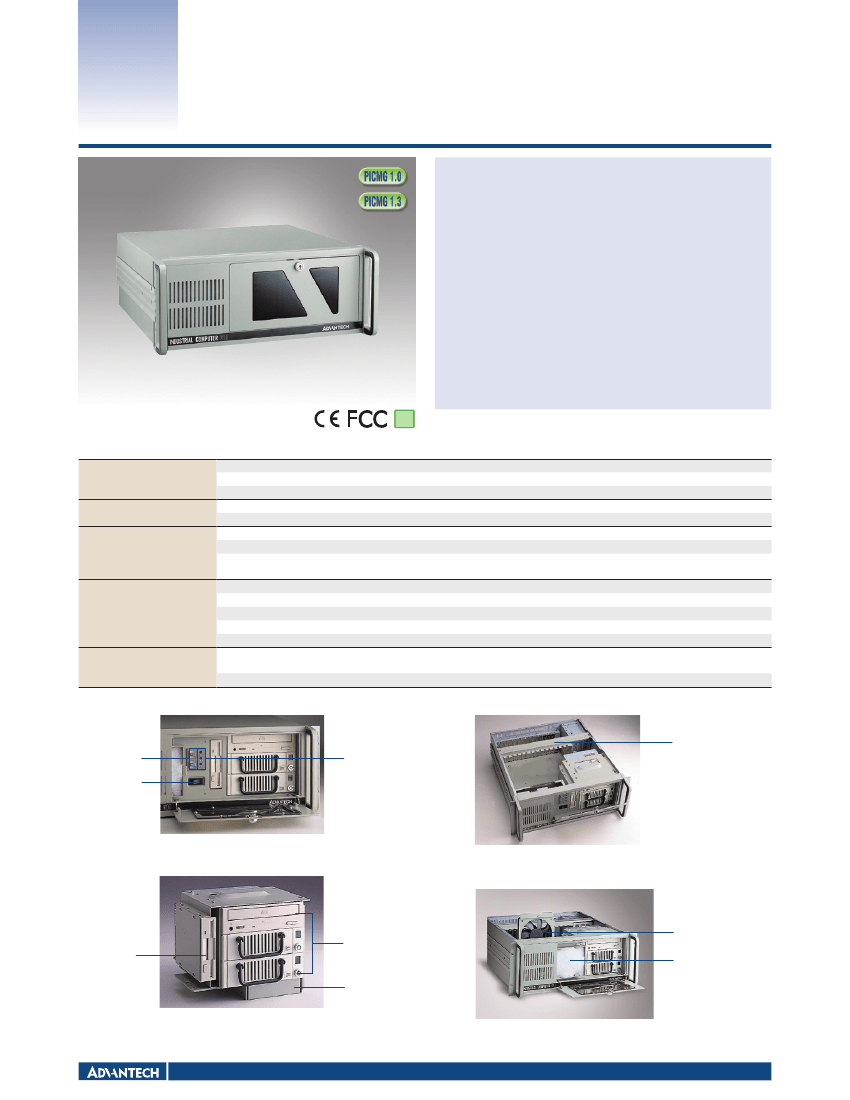

IPC-610-F
Classic 4U 15-Slot Rackmount Chassis
Features
4U rackmount chassis supports up to 15 cards
Shock-resistant disk drive bay design holds up to three 5.25" and two 3.5"
(one front-accessible & one internal) disk drives
Special hold-down clamp design with rubber cushions protects the cards from
shock and vibration
Power and HDD activity notification improves system availability
Front-accessible air filter for easy system maintenance
Lockable front door prevents unauthorized access
300 W / 400 W AC and 300 W DC ATX power supply options
RoHS
COMPLIANT
2002/95/EC
Specifications
Drive Bay
Cooling
Miscellaneous
3.5"
5.25"
Fan
Air Filter
LED Indicators
Control
Rear Panel
Temperature
Humidity
Vibration (5 ~ 500 Hz)
Shock
Dimensions (W x H x D)
Weight
Front-accessible
Internal
1
1
3
-
1 (12 cm / 85 CFM)
Yes
Power, HDD, keyboard lock
Power, system reset and keyboard lock switches
Backplane version: One 9-pin D-Sub opening
Motherboard version: Five 9-pin D-Sub & one 68-pin SCSI openings
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85% @ 40° C, non-condensing
10 ~ 95% @ 40° C, non-condensing
1 Grms
2G
10 G (with 11 ms duration, half sine wave)
30 G
IPC-610BP: 482 x 177 x 449 mm (19" x 7" x 17.8")
IPC-610MB: 482 x 177 x 499 mm (19" x 7" x 19.6")
16.2 kg (35.6 lb)
Environment
Physical Characteristics
System reset
& keyboard
lock switches
Power switch
Hold-down clamp
LED indicators
One 3.5"
drive bay
Three 5.25"
drive bays
(DVD-ROM &
disk trays are
not included)
One internal
3.5" drive bay
One 85 CFM
hot-swappable
cooling fan
Easy-to-replace
fan filter
Industrial Computer Chassis
All product specifications are subject to change without notice
Last updated : 20-Jun-2012
IPC-610-F

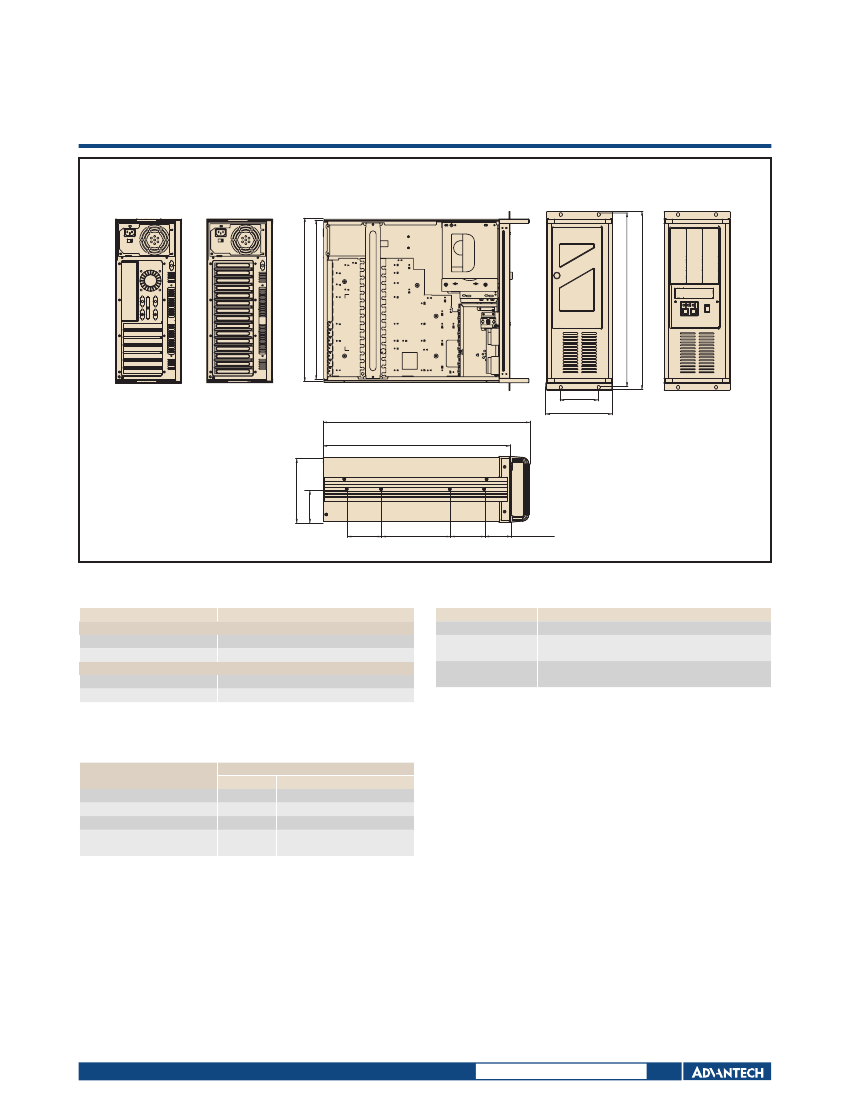

Dimensions
Unit: mm [inch]
437.4 [17.22]
426.4 [16.79]
552.4 [21.75]
502.4 [19.78]
498.9 [19.64]
448.9 [17.67]
171.5 [6.75]
86.8
[3.42]
101.6
[4.00]
177 [6.97]
92
[3.62]
184
[7.24]
92
[3.62]
70 [2.76]
45 [1.78]
Ordering Information
Part Number
Backplane Version
IPC-610BP-00XFCE
IPC-610BP-30FDE
Motherboard Version
IPC-610MB-00XFCE
IPC-610MB-30FDE
Power Supply
Without power supply, with ATX switch
PS8-300ATX-ZBE
Without power supply, with ATX switch
PS8-300ATX-ZBE
Optional Accessories
Part Number
2130006190S000
IDT-3120E
IDT-5230E
Description
Fan filter 120 x 100 x 15 mm
Mobile rack for converting a 3.5" drive bay to dual
2.5" SATA HDD trays
Mobile rack for converting dual 5.25" drive bays to three
3.5" SAS/SATA HDD trays
Power Supply Options
(For detailed power supply specs, please refer to Chapter 6)
Part Number
PS8-300ATX-ZBE (ATX, PFC)
PS8-400ATX-ZE (ATX, PFC)
PS-300ATX-DC48E (ATX)
RPS-300ATX-ZE (ATX, PFC)
(1+1 redundant)
Watts
300 W
400 W
300 W
300 W
Specifications
Input
AC 100 ~ 240 V (full range)
AC 100 ~ 240 V (full range)
DC-48 V
AC 100 ~ 240 V (full range)
Online Download
www.advantech.com/products
479.7 [18.89]
463 [18.23]
