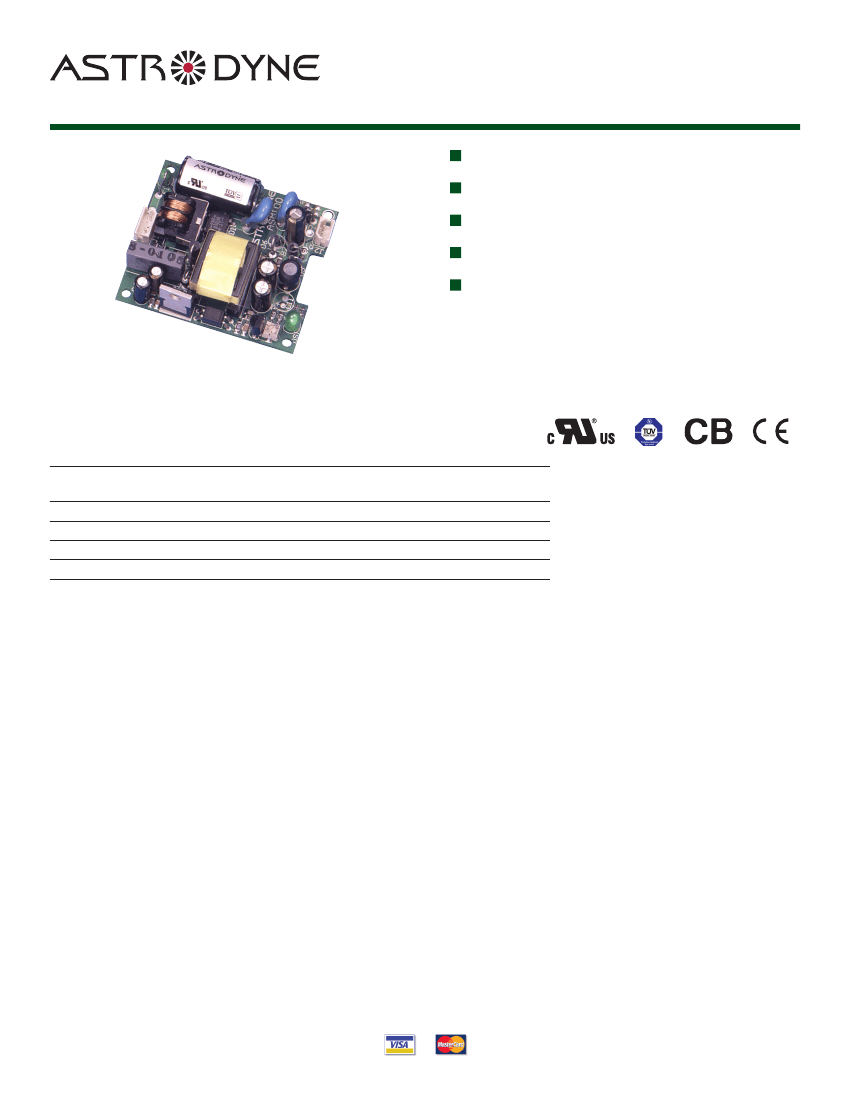

1 0 W U l t r a mi ni ature Op en Fr ame G loba l S wi tc hi ng Power Suppl i es
Universal 85-265VAC Input
Molex Mini Connector I/O
Regulated Outputs
3000V Isolation
asl10
series
Single Output from 3.3 to 24 VDC
2”W x 2.28”L x 0.66”H
Model Number
ASL-0100
ASL-0101
ASL-0102
ASL-0103
ASL-0105
Output Voltage
3.3 VDC
5 VDC
12 VDC
15VDC
24VDC
Output amps (max)
2.5A
2A
0.85A
0.67A
0.42A
(pk)
3.3A
2.6A
1.2A
0.9A
0.6A
Order On-Line!
WWW.asTRODYNE.COM
astrodyne.com
300 Myles standish Blvd., Taunton, Ma 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W U l t r a mi ni ature Op en Fr ame G loba l S wi tc hi ng Power Suppl i es
INPUT sPECIFICaTIONs
Input Voltage Range
Frequency Range
Inrush Current, typ:
85-265 VAC
47-63 Hz
20A @ 100VAC Input
*
40A @ 200VAC Input
*
asl10
2” x 2.28” x 0.66”
Open Frame
1.6oz (44g)
50-37-5033 (Input)
50-37-5023 (Output)
series
PHYsICal sPECIFICaTIONs
Size
Construction
Weight
Connectors: Molex P/N:
OUTPUT sPECIFICaTIONs
ENVIRONMENTal sPECIFICaTIONs
Voltage and Current
Load Regulation
Line Regulation
Cross Regulation (Duals)
Preset Accuracy
DC Voltage Adjust (typ)
Temperature Coefficient
Ripple/Noise
Over Voltage Protection
Over Temp. Protection
Short Circuit Protection
Hold Up Time
See Selection Chart
+/- 3%
(20% to 100% Load)
Singles +/- 0.1~1%, typ
2%
1%
+/- 6% of FS (Primary)
+/-0.03%/°C
100mV Pk-Pk, typ
Clamp, 130-150%
*
Latching, Cool and Repower
Continuous, self-recovering
20 mS, typ
Oper. Temperature
Storage Temperature
Relative Humidity
EMC
MTBF
0 to +50°C(FL) See Derate
-25 to +71°C
*
0 to + 95%, non-cond
*
FCC/A, VDE 0871/A
180,000 Hrs
Mil Std 217, 25°C
OUTPUT DERaTING CURVE
100
90
80
70
Load (%)
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
Ambient Temperature DegC
GENERal sPECIFICaTIONs
Isolation
I/P-O/P:3000VAC
I/P-Ground: 2500VAC
O/P-Ground: 1000VAC
75%~78%, typ
100Khz, (fixed, typical)
UL60950-1, EN60950, IEC60950
Efficiency
Switching Frequency
Safety
All specifications are typical at nominal input, full load, and 25DegC unless
otherwise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.asTRODYNE.COM
300 Myles standish Blvd., Taunton, Ma 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
1 0 W U l t r a mi ni ature Op en Fr ame G loba l S wi tc hi ng Power Suppl i es

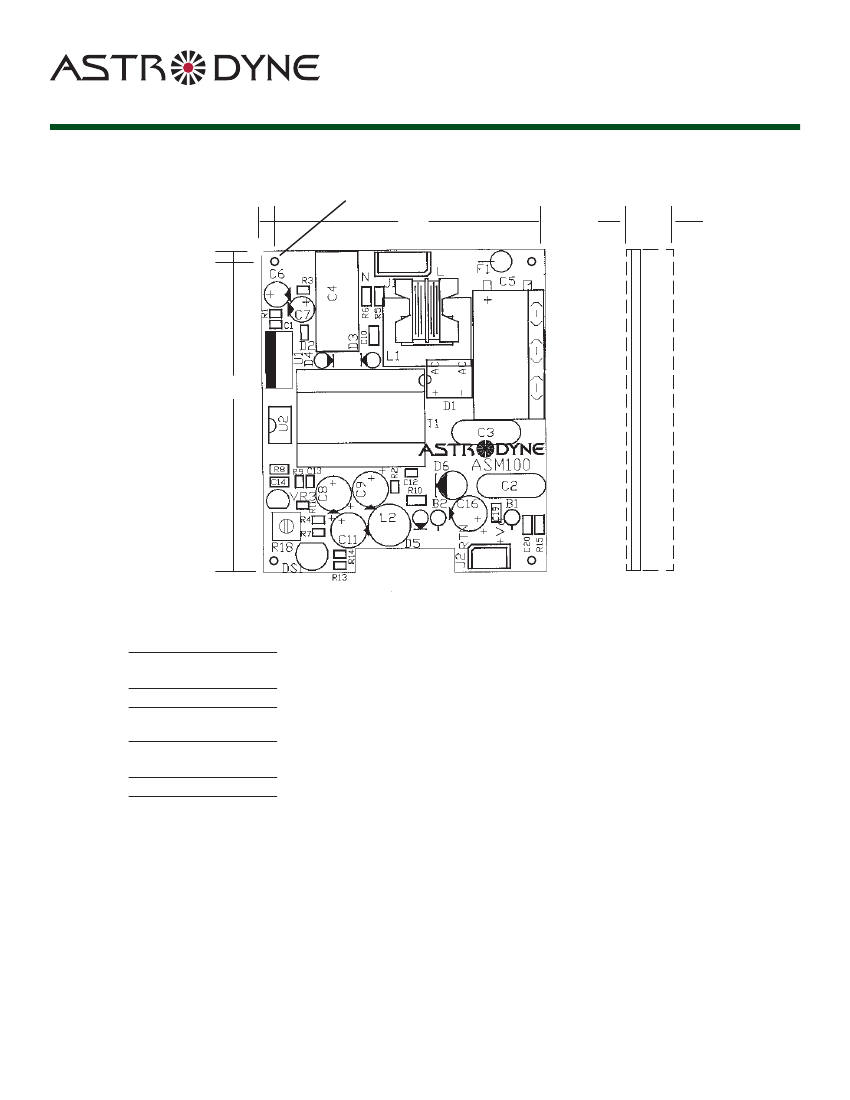

MECHaNICal DIMENsIONs
0.1
0.12” Dia. Mtg Holes (4 plcs)
asl10
series
2.0
0.68
10 Watt
0.1
2.28
J1 (aC Input)
Pin 1
Pin 3
AC Neutral
AC Line
J2 (DC Output)
Pin 1
Pin 3
+Vout
Return
WWW.asTRODYNE.COM
300 Myles standish Blvd., Taunton, Ma 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
