DAT60CH501KHF2K

Description
Ceramic Capacitor, Ceramic, 6000V, -/+60ppm/Cel TC, 0.0005uF
CategoryPassive components    capacitor
File Size139KB,5 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric Compare View All

DAT60CH501KHF2K Overview

Ceramic Capacitor, Ceramic, 6000V, -/+60ppm/Cel TC, 0.0005uF

DAT60CH501KHF2K Parametric

Parameter NameAttribute value
MakerMurata
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance0.0005 µF
Capacitor typeCERAMIC CAPACITOR
diameter60 mm
dielectric materialsCERAMIC
length3 mm
Manufacturer's serial numberDAT60
negative tolerance10%
Number of terminals2
Maximum operating temperature75 °C
Minimum operating temperature-10 °C
Package formFeed-Thru
positive tolerance10%
Rated (AC) voltage (URac)4000 V
Rated (DC) voltage (URdc)6000 V
seriesDAT60
Temperature Coefficient-/+60ppm/Cel ppm/°C
LEADED CAPACITORS, NETWORKS & HV CAPACITORS
HIGH VOLTAGE/POWER CAPACITORS
3.5kV to 42kV
These units are designed for such
applications as high frequency
heating equipment to which high
frequency power or high DC or AC
voltage is applied.
DCT & DAT Series
APPLICATIONS
s
Oscillator matching, coupling or
bypass circuits in broadcast or radio
communication equipment, etc.
s
Oscillators, coupling circuit or bypass
capacitors in industrial or medical high
frequency appliances such as high
frequency heating equipments or
ultra-sonic instruments.
s
Coupling capacitors for transmission
lines and carrier frequency equipment.
FEATURES
s
Small size and high capacitance
s
Linear and reversible temperature
characteristics
s
Very high “Q” and high insulation
resistance from low to high frequencies
s
No performance deterioration after
extended life – excellent humidity and
thermal resistance
s
Low series inductance and operable
to high frequencies
s
Large power capability in small
packages due to low dielectric
loss when high voltage and high
frequency is applied
LEADED CAPACITORS
NETWORKS, AND
HV CAPACITORS

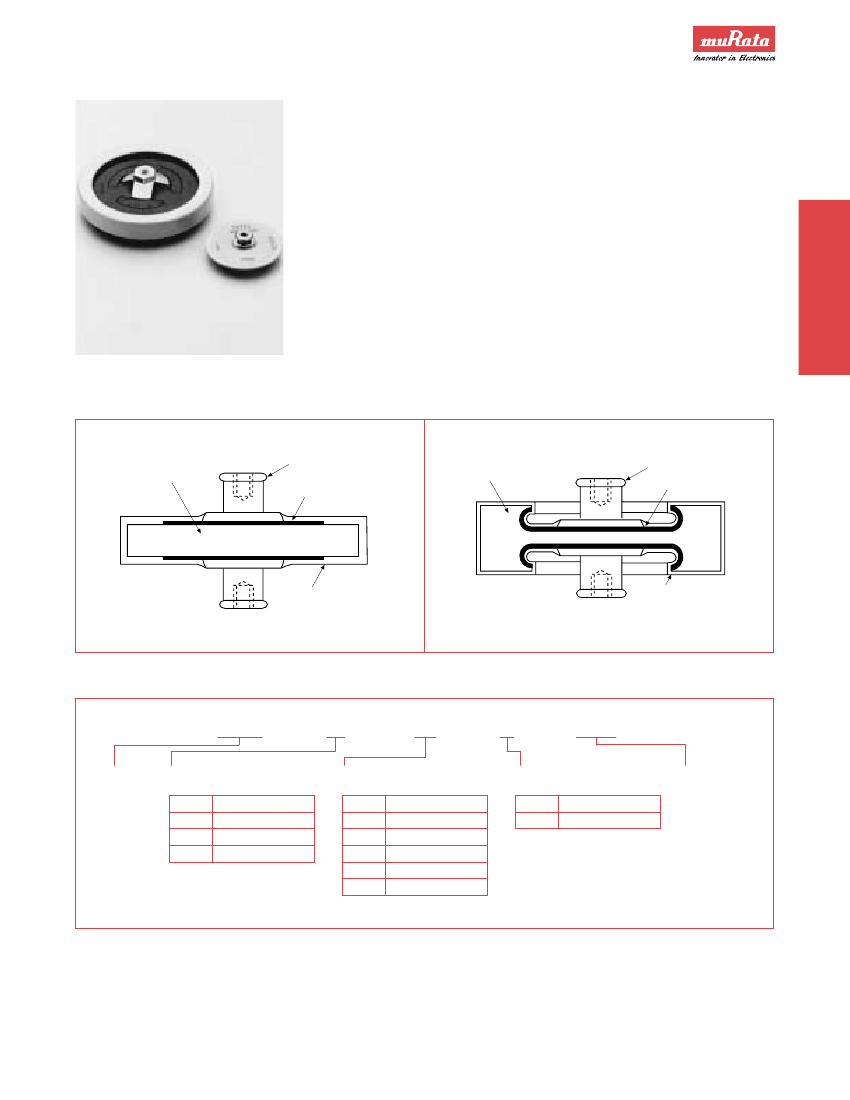

CONSTRUCTION
DAT Series
Terminal
Ceramic
Ceramic
Silver
Electrode
DCT Series
Terminal
Silver
Electrode
Humidity Proof
Insulating Resin
Humidity Proof
Insulating Resin
PART NUMBERING SYSTEM
DCT200
UJ
510
K
HF30K
TYPE
DAT
DCT
TEMPERATURE
CHARACTERISTICS
Code
UJ
CH
AH
Temp. Coeff.
–750 ± 120ppm/°C
0 ± 60ppm/°C
+100 ± 60ppm/°C
CAPACITANCE
Code
500
501
102
202
252
Cap. Value
50pF
500pF
1000pF
2000pF
2500pF
CAPACITANCE
TOLERANCE
Code
K
Cap. Tol.
±10%
RATED
VOLTAGE
CG01-I
109

DAT60CH501KHF2K Related Products

DAT60CH501KHF2K DAT60AH501KHF2K DAT60AH102KHF2K DAT60CH102KHF2K DCT140-3UJ101KHF31.5KV DCT60CH101K DCT60CH101KHF14K DCT140-3ZM101KHF31.5KV DCT140UJ101KHF31.5KV
Description Ceramic Capacitor, Ceramic, 6000V, -/+60ppm/Cel TC, 0.0005uF Ceramic Capacitor, Ceramic, 6000V, 100ppm/Cel TC, 0.0005uF Ceramic Capacitor, Ceramic, 6000V, 100ppm/Cel TC, 0.001uF Ceramic Capacitor, Ceramic, 6000V, -/+60ppm/Cel TC, 0.001uF Ceramic Capacitor, Ceramic, 37000V, -750ppm/Cel TC, 0.0001uF Ceramic Capacitor, Ceramic, 14000V, -/+60ppm/Cel TC, 0.0001uF Ceramic Capacitor, Ceramic, 14000V, -/+60ppm/Cel TC, 0.0001uF Ceramic Capacitor, Ceramic, 37000V, -4700ppm/Cel TC, 0.0001uF Ceramic Capacitor, Ceramic, 37000V, -750ppm/Cel TC, 0.0001uF
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 0.0005 µF 0.0005 µF 0.001 µF 0.001 µF 0.0001 µF 0.0001 µF 0.0001 µF 0.0001 µF 0.0001 µF
Capacitor type CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR
diameter 60 mm 60 mm 60 mm 60 mm 140 mm 60 mm 60 mm 140 mm 140 mm
dielectric materials CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC
length 3 mm 3 mm 3 mm 3 mm 25 mm 16 mm 16 mm 25 mm 25 mm
Manufacturer's serial number DAT60 DAT60 DAT60 DAT60 DCT140 DCT60 DCT60 DCT140 DCT140
negative tolerance 10% 10% 10% 10% 10% 10% 10% 10% 10%
Number of terminals 2 2 2 2 2 2 2 2 2
Maximum operating temperature 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C
Minimum operating temperature -10 °C -10 °C -10 °C -10 °C -10 °C -10 °C -10 °C -10 °C -10 °C
Package form Feed-Thru Feed-Thru Feed-Thru Feed-Thru Feed-Thru Feed-Thru Feed-Thru Feed-Thru Feed-Thru
positive tolerance 10% 10% 10% 10% 10% 10% 10% 10% 10%
Rated (DC) voltage (URdc) 6000 V 6000 V 6000 V 6000 V 37000 V 14000 V 14000 V 37000 V 37000 V
series DAT60 DAT60 DAT60 DAT60 DCT140 DCT60 DCT60 DCT140 DCT140
Temperature Coefficient -/+60ppm/Cel ppm/°C 100ppm/Cel ppm/°C 100ppm/Cel ppm/°C -/+60ppm/Cel ppm/°C -750ppm/Cel ppm/°C -/+60ppm/Cel ppm/°C -/+60ppm/Cel ppm/°C -4700ppm/Cel ppm/°C -750ppm/Cel ppm/°C
Maker Murata Murata Murata Murata Murata - - - -
Rated (AC) voltage (URac) 4000 V 4000 V 4000 V 4000 V 31500 V - - 31500 V 31500 V
Is it Rohs certified? - - - - incompatible incompatible incompatible incompatible incompatible
