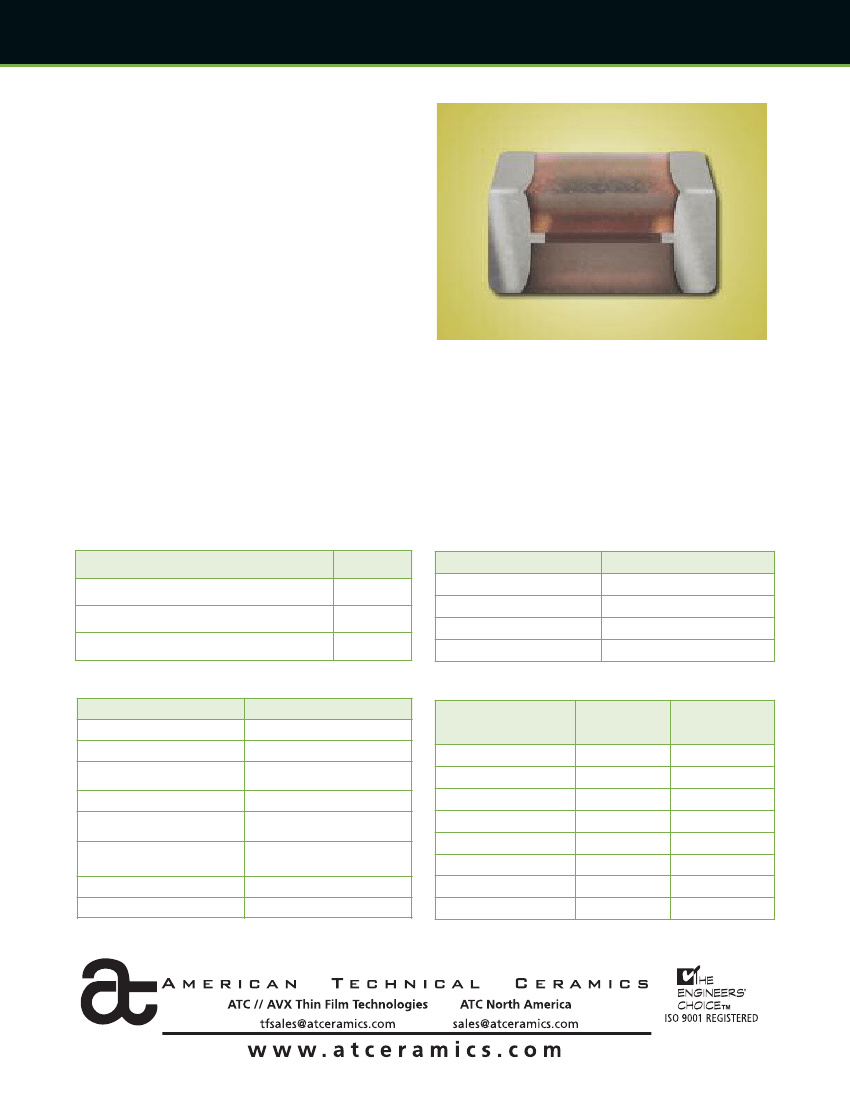

ATC // AVX Thin Film Technologies is pleased to intro-
duce the Resistor Capacitor Network (RCN). This unique
device provides an excellent RC network solution for RF
equalization applications. The RCN is built in a single
EIA package using our unique Glass wafer Sandwich
Flexiterm (GSFT) Technology. It is supplied as a parallel
RC combination network.
Resistor Material
Thin Film Resistors
Typical Sheet Resistivity (ohm/sq)
TCR (ppm/°C, -25 to 125°C)
Stability (Change after 1000 hours @ 125°C)
Capacitor Material
TaN
10 to 100
-100 to -150
1.0%
Material
pF/mm Typical
BDV (v/µm)
DF
TCC (ppm/°C, -25 to 125°C)
SiON
50 to 100
600
≤0.1%
±60
Specifications
RC
Package Size
Design
Termination
Power Rating
Operating
Temperature Range
Tolerance
Resistor Range
Capacitor Range
Kit Values
Detail
EIA 0402
Glass wafer sandwich
Flexiterm® (Ag/Epoxy),
NiSn plated
125 mW
-55°C to +125°C
Resistor: 1-5%;
Capacitor: 5-20%
10 to 50 Ω (typical)
1 to 50 pF (typical)
Part Number
RCNL25R0F00R5KTT
RCNL25R0F01R0KTT
RCNL25R0F02R0KTT
RCNL25R0F03R0KTT
RCNL25R0F04R5KTT
RCNL25R0F05R0KTT
RCNL25R0F06R5KTT
RCNL25R0F11R0KTT
Resistance
(Ohms)
25
25
25
25
25
25
25
25
Capacitance
(pF)
0.5
1.0
2.0
3.0
4.5
5.0
6.5
11
For other RC Combinations consult factory.
ATC # 001-1131
Rev B, 7/14
RC EQUALIZER NETWORK
Mechanical Dimensions
W
Environmental Tests
Reliability Test
Life Test
85/85 Temp./
Humidity Breakdown
Criteria
1000 Hrs. @ 125°C @ 50 mW
1080 Hrs. @ 50 mW
100 cycles @ -40 to 125°C
200 g for 50 seconds (Dage Tester)
L
T
t
t
Thermal Cycle
Terminal (t)
.010 ±.006
(0.25 ±0.15)
inches (mm)
Size (EIA)
0402
Length (L)
Width (W)
.039 ±.004 .020 ±.004
(1.00 ±0.10) (0.50 ±0.10)
Thickness (T)
.020 ±.004
(0.50 ±0.10)
Termination Strength
ATC Part Number Code
ATC RCN
Series
Case Size - 0402
Resistance Value (Ω)
3 significant digits
R= decimal point
Resistance
Tolerance
F= 1%
L
25R0
F
50R0
J
T
T
Packaging: T = Tape & Reel
Termination
T = NiSn Plated
Capacitance Tolerance
J=5%, K=10%, M=20%
Capacitance Value (pF)
3 significant digits
R= decimal point
The above part number code refers to an RCN, Case Size L, 25 Ohms, F (1%) resistance tolerance,
50 pF, J (5%) capacitance tolerance, T termination, with tape and reel packaging
ATC accepts orders for our parts using designations
with
or
without
the “ATC” prefix. Both methods of defining the part number are equivalent, i.e., part numbers referenced with the “ATC”
prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are free to use either in specifying or procuring parts from American Technical Ceramics.
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. A 10/03). Copies of these
terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which may
result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
