U1ZA220: DescriptionSurface Mount Zener Diodes, Diodes, Single, 0.05, 220V, 0.5mA, 1000mW, -; CategoryDiscrete semiconductor; File Size212KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

U1ZA220 Overview

Surface Mount Zener Diodes, Diodes, Single, 0.05, 220V, 0.5mA, 1000mW, -

U1ZA220 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
Configuration	Single
Tolerance	0.05
VZ (V) nom.	220
Condition1_IT (mA)	0.5
PD (mW) max	1000
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Pin	-
Package Outlines	SMA

Preview

Download Datasheet

View All

Production specification

Zener Diodes

Features



Silicon planar power ,zener diodes

For use in stabilizing and clipping circuits with high

power rating.

suffix "A" for ±5% tolerance.

U1ZA5.1--U1ZA390

Mechanical Data

Case: SMA molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Solder plated, solderable per MIL- STD-202,Method 208

Polarity: Color band denotes cathode end

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Parameter

Power dissipation at Tamb=25°C

Maximum instantaneous forward voltage

Junction temperature

Storage temperature range

Symbol

Ptot

Value

1.0

1.15

-40---+150

Units

°C

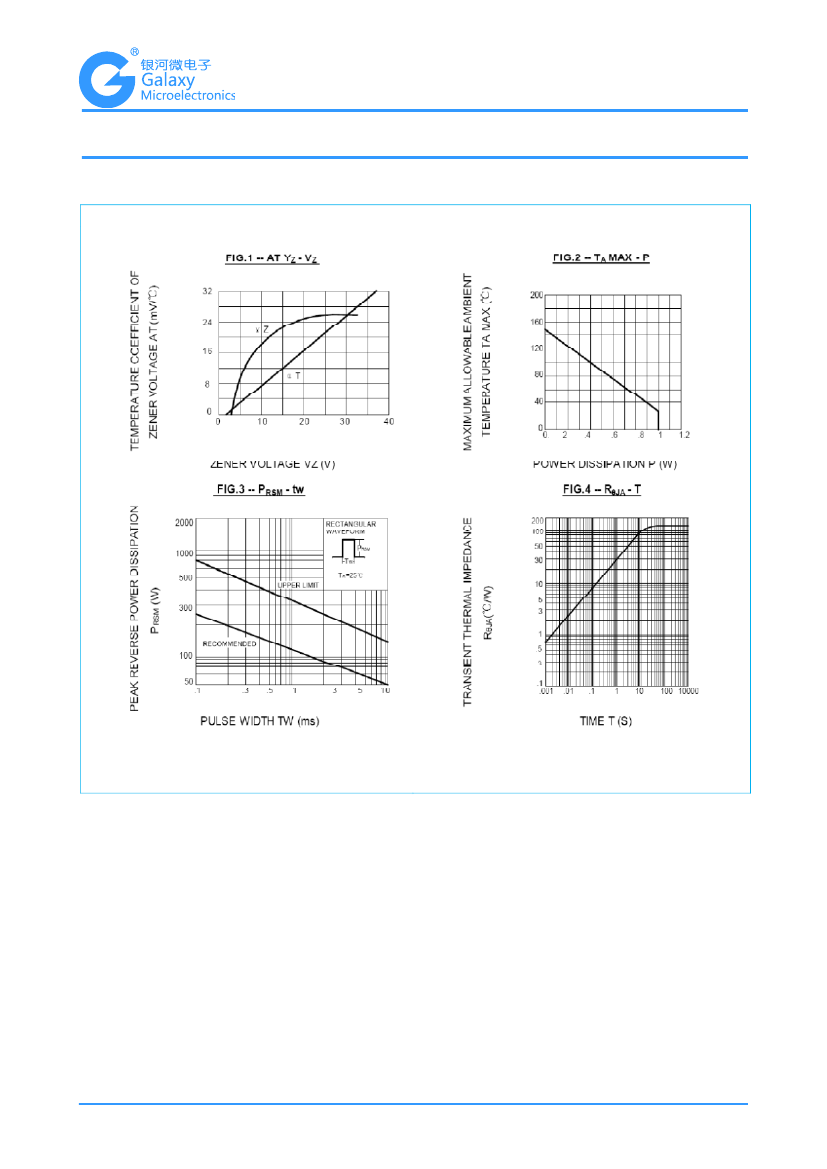

Notes:

1.Valid provided that leads at a distance of 10 mm from case are kept at ambient temperature.

ZDP0030A

www.gmesemi.com
