0090.0020: DescriptionVERY FAST BLOW ELECTRIC FUSE, 20A, 1000VDC, 20000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size241KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

0090.0020 Overview

VERY FAST BLOW ELECTRIC FUSE, 20A, 1000VDC, 20000A (IR), INLINE/HOLDER

0090.0020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Is Samacsys	N
Fusing characteristics	VERY FAST
body height	38 mm
Body length or diameter	10.3 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	1313 J
Installation features	INLINE/HOLDER
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	10.3mm x 38mm
Pre-discharge time - minutes	240000 ms
Rated breaking capacity	20000 A
Rated current	20 A
Rated voltage	1000 V
Rated voltage (DC)	1000 V
Guideline	IEC; UL; VDE
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

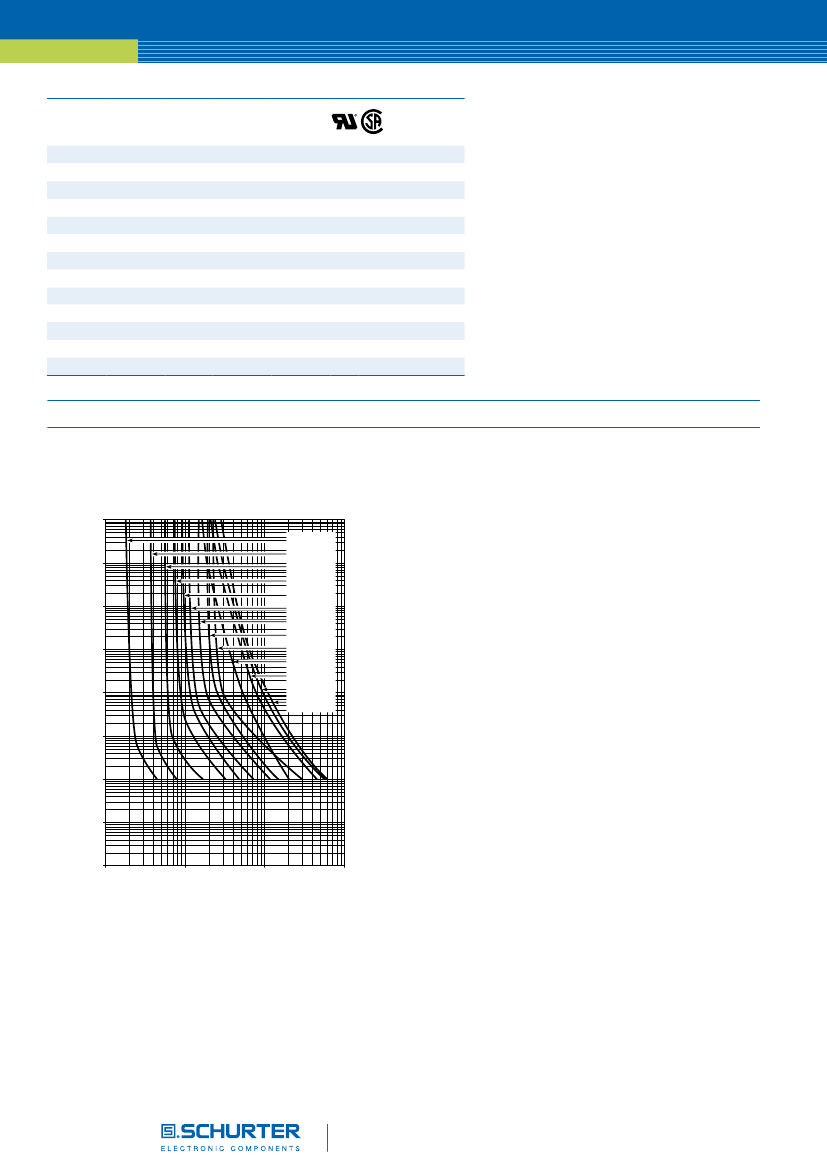

Non resettable fuses

ASO 0.3x38

www.schurter.com/pg0_2

Midget Fuse, 10.3 x 38 mm, Quick-acting, 1000 VDC, Photovoltaic

1000 VDC · Quick-Acting F

Description

Approvals

- UL Recognized for 1000 VDC

- Breaking capacity: 20 kA

- UL File Number: E335001

Applications

References

Weblinks

- String fuse for photovoltaic systems

General Product Information

Corresponding Fuseholder FSO; 231660

Approvals, RoHS, CHINA-RoHS, Distributor-Stock-Check, Accessories,

Product Change Notification (PCN)

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Admissible Ambient Air Temp.

Unit Weight

Storage Conditions

Product Marking

1000 VDC

1 - 30 A

20 kA

Quick-Acting F

-40 °C to 85 °C

8.3 g

0 °C to 60 °C, max. 70% r.h.

, Type, Current, Voltage, Breaking Ca-

pacity, Characteristic

38 mm

Dimensions

ø 10.3

38

Pre-Arcing Time

Rated Current In

1 A - 12 A

15 A - 30 A

.0 x In min.

4 h

.35 x In

max.

-

60 min

2.0 x In max.

200 s

Fuses

0090.0020 Related Products

	0090.0020	0090.0001	0090.0005	0090.0008	PESDXS1UL_15
Description	VERY FAST BLOW ELECTRIC FUSE, 20A, 1000VDC, 20000A (IR), INLINE/HOLDER	VERY FAST BLOW ELECTRIC FUSE, 6A, 1000VDC, 20000A (IR), INLINE/HOLDER	VERY FAST BLOW ELECTRIC FUSE, 6A, 1000VDC, 20000A (IR), INLINE/HOLDER	VERY FAST BLOW ELECTRIC FUSE, 6A, 1000VDC, 20000A (IR), INLINE/HOLDER	Unidirectional ESD protection diodes
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
Maker	SCHURTER	SCHURTER	SCHURTER	SCHURTER	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Reach Compliance Code	compliant	compliant	compliant	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-
Factory Lead Time	16 weeks	16 weeks	16 weeks	16 weeks	-
Is Samacsys	N	N	N	N	-
Fusing characteristics	VERY FAST	VERY FAST	VERY FAST	VERY FAST	-
body height	38 mm	38 mm	38 mm	38 mm	-
Body length or diameter	10.3 mm	10.3 mm	10.3 mm	10.3 mm	-
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	-
Joule integral nominal	1313 J	-	42 J	199 J	-
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-
method of packing	BULK	BULK	BULK	BULK	-
physical size	10.3mm x 38mm	10.3mm x 38mm	10.3mm x 38mm	10.3mm x 38mm	-
Pre-discharge time - minutes	240000 ms	240000 ms	240000 ms	240000 ms	-
Rated breaking capacity	20000 A	20000 A	20000 A	20000 A	-
Rated current	20 A	1 A	5 A	8 A	-
Rated voltage	1000 V	1000 V	1000 V	1000 V	-
Rated voltage (DC)	1000 V	1000 V	1000 V	1000 V	-
Guideline	IEC; UL; VDE	IEC; UL; VDE	IEC; UL; VDE	IEC; UL; VDE	-
surface mount	NO	NO	NO	NO	-
Terminal surface	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	-
Terminal shape	END CAP	END CAP	END CAP	END CAP	-
Base Number Matches	1	1	1	1	-
