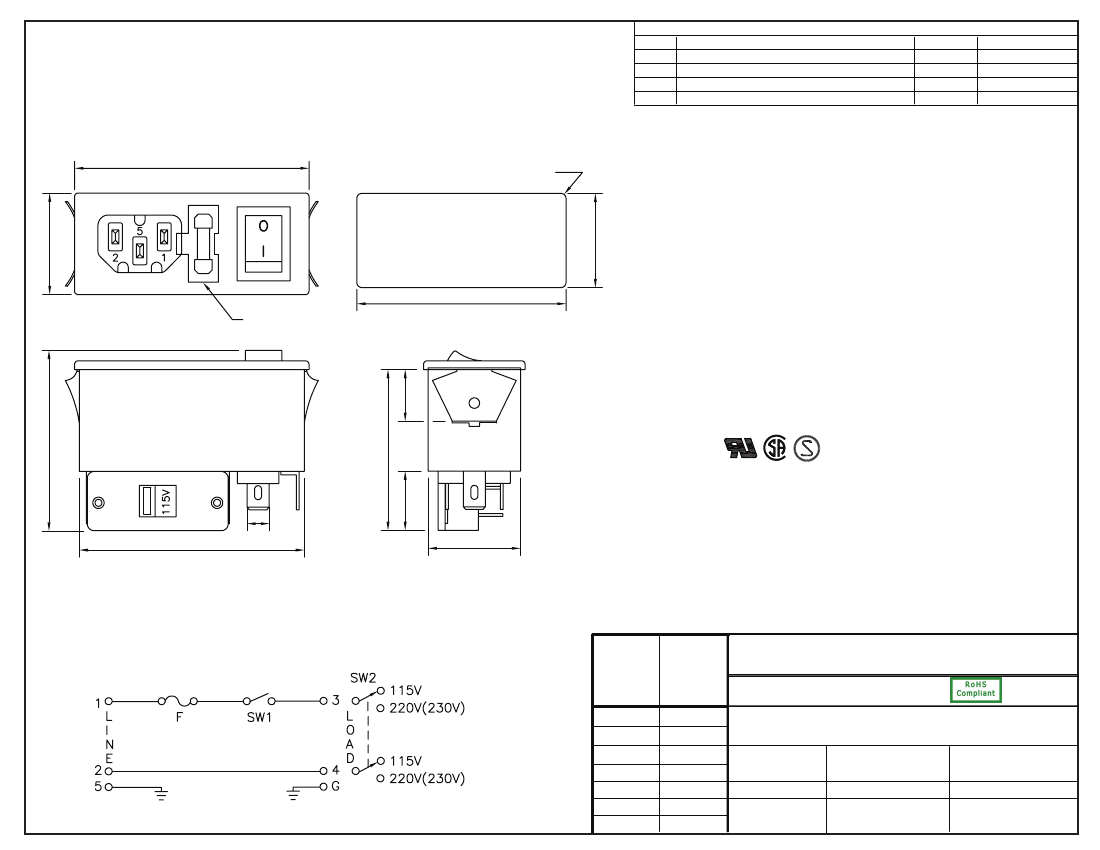

MECHANICAL DIMENSIONS:
2.65
R0.04MAX
1.063 ± 0.003
REVISION
REV.
B
C
D
E
DESCRIPTION
RoHS Compliancy
Updated Specifications
Graphics and Notes Update
Electrical Characteristics Update
DATE
06-01-06
01-24-08
07-09-08
10-27-09
APPROVED
DP
DP
DP
LY
ELECTRICAL CHARACTERISTICS:
1-1.
1-2.
VOLTAGE RATING.....................................................115/250VAC
CURRENT RATING
A. @ 115 VAC/250 VAC (UL,CSA)..........6A RMS MAX
B. @ 250 VAC (SEMKO) ..........................4A RMS MAX
OPERATING FREQUENCY ........................................... 48-440Hz
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND .................................2000VAC
B. LINE TO LINE ...........................................2000VAC
MINIMUM INSULATION RESISTANCE: @ 500VDC ONE MINUTE
A. LINE & NEUTRAL TO GROUND............10M OHM
B. LINE TO NEUTRAL ...................................10M OHM
SAFETY:
SINGLE 5X20mm FUSEHOLDER
SNAP-IN PANEL THICKNESS: .04IN~.07IN (1.0mm~1.8mm)
RoHS COMPLIANT
1.15
FUSE HOLDER
2.6 ± 0.003
PANEL CUTOUT
1-3.
1-4.
0.57
1-5.
2.04
1.83
1-6.
1-7.
0.65
1-8.
1-9.
.250
2.57 TYP
1.06
ELECTRICAL SCHEMATIC:
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
762-18/004
MULTI-FUNCTION MODULE
UNIT: in
REV. E
Approved / Date
JJH / 01-28-03
Drawn / Date
B.Zhang
01-28-03
Checked / Date
01-28-03
