ARK-6622_12: DescriptionCompact Embedded Mini-ITX Chassis with One Expansion Slot; File Size640KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet View All

ARK-6622_12 Overview

Compact Embedded Mini-ITX Chassis with One Expansion Slot

Preview

Download Datasheet

View All

ARK-6622

Compact Embedded Mini-ITX

Chassis with One Expansion Slot

Features

Mini-ITX chassis supports front I/O interfaces and one expansion slot

Shockproof disk drive bay for up to two 2.5" hard disks

Bottom door for access to devices on the solder side of motherboard

Equipped with Flex 180W AC ATX power supply with power cord hook

LED indicators for system fault detection

Optional WLAN 802.11 b/g module and VESA mounting kit

Supports dedicated Advantech motherboard: AIMB-210/258/262/270

RoHS

COMPLIANT

2002/95/EC

Specifications

Disk Drive Bay

2.5" (internal)

USB

PS/2

COM

DVI/COM

RJ-45

Audio

VGA

Expansion slot

Reserved cutouts

System Fan

Air Filter

LED Indicators

Control

Temperature

Humidity

Vibration (5 ~ 500 Hz)

Shock

Dimensions (W x H x D)

Weight

3 (Mic-in, Line-out, Line-in)

2 x DB-9 and 2 x Wireless Antenna Opening

ARK-6622H

2 (6 cm/27.7CFM)

Yes

Power, HDD, Temperature

Power switch

Operating

0 ~ 40° C (32 ~ 104° F)

10 ~ 85%, @ 40° C, non-condensing

1 Grms

10 G (with 11ms duration, half sine wave)

272 x 88 x 232 mm (10.7" x 3.5" x 9.1")

3.49 kg (7.68 lb)

Front I/O Openings

Cooling

Miscellaneous

ARK-6622L

1 (6 cm/15.4CFM)

Yes

Non-operating

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 95%, @ 40° C, non-condensing

30 G

Environment

Physical Characteristics

* The expansion slot is supported by dedicated riser cards, so an optional riser card is required for the add-on card.

* 176 mm (W) x 22 mm (H) space is available for add-on cards to assemble in slot.

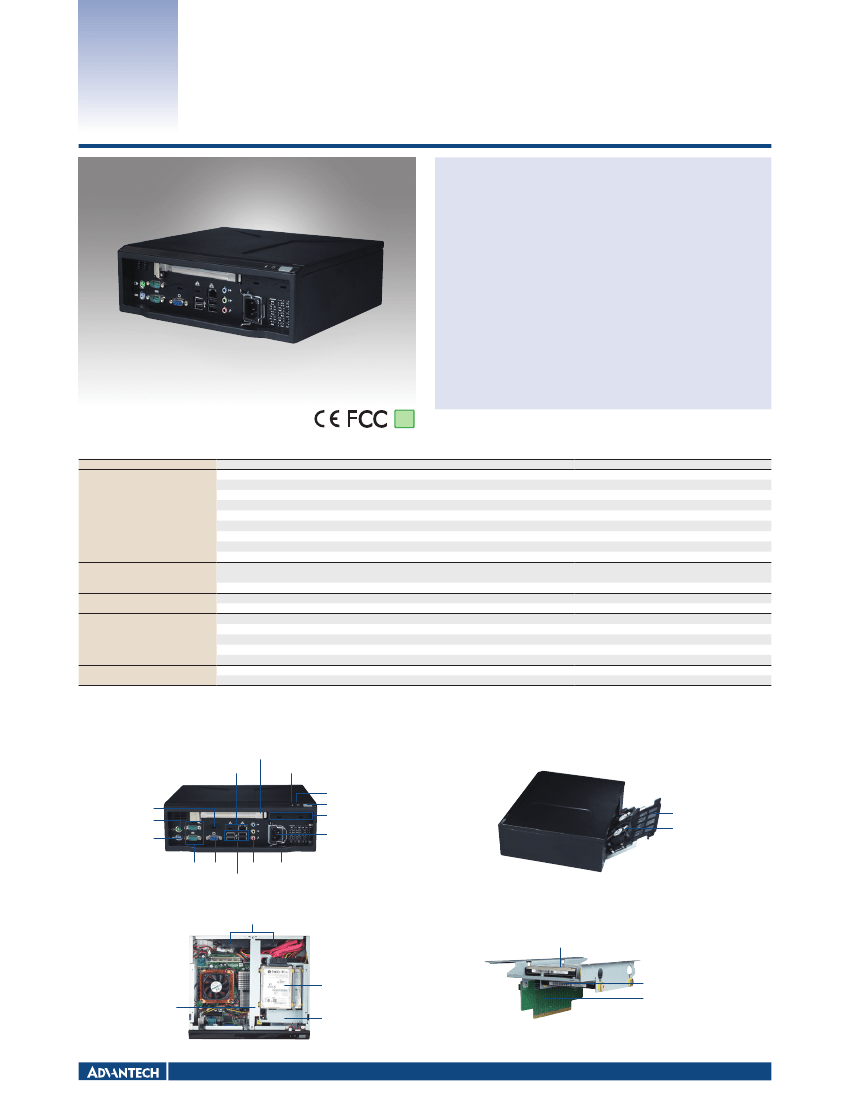

Front View

Expansion slot

Dual Giga LANs

Thermal LED

HDD LED

PWR On/Off

Extra cutouts

Flex

power supply

Rear Cover for Replacing Fans

COM/DVI

PS2/Mouse

PS2/Keyboard

2 COMs VGA

Audio

USB

Handle

System fan(s)

Air filter

System fan(s)

Inside View

2.5" HDDs and Riser Card Bracket

2.5" HDD

Shockproof disk drive bay

for 2 x 2.5 HDDs

Riser card

Power supply

2.5" HDD

Riser card

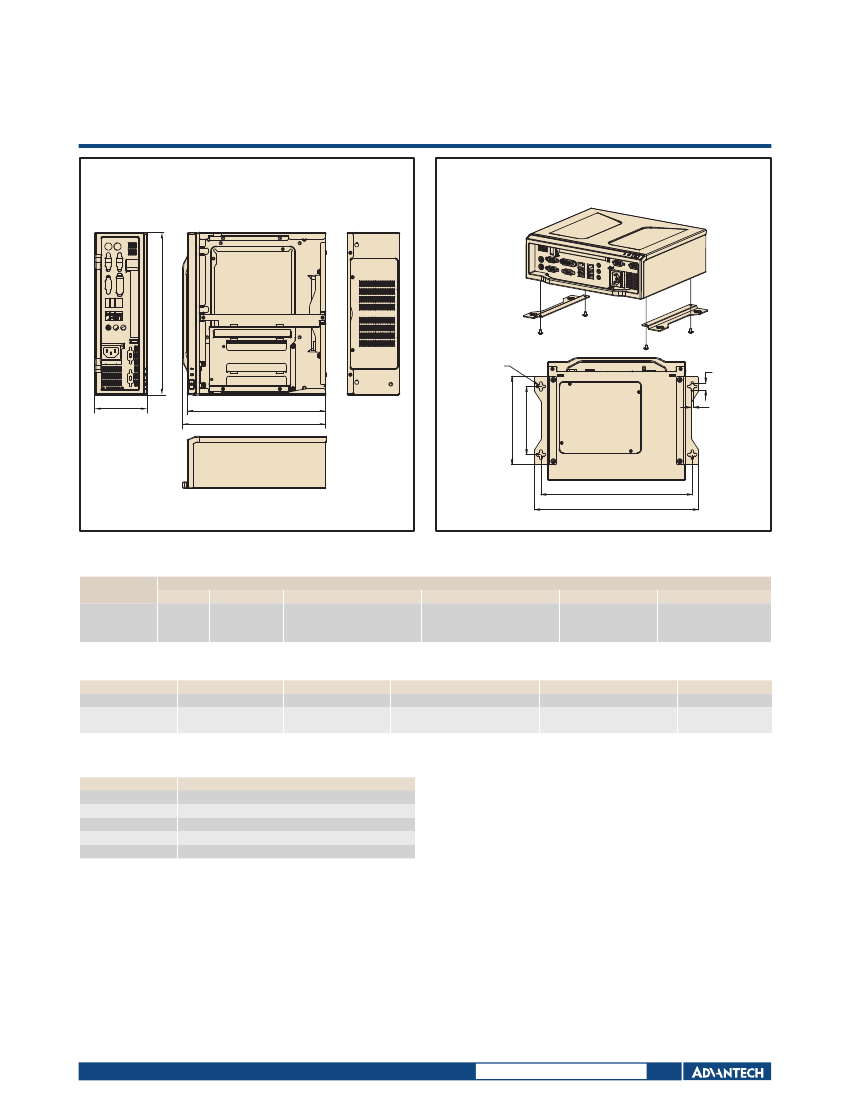

Industrial Computer Chassis

All product specifications are subject to change without notice

Last updated : 20-Jun-2012
