IPC-3026: Description6-Slot Desktop/Wallmount Chassis for Half-Size SBC; File Size467KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet View All

IPC-3026 Overview

6-Slot Desktop/Wallmount Chassis for Half-Size SBC

Preview

Download Datasheet

View All

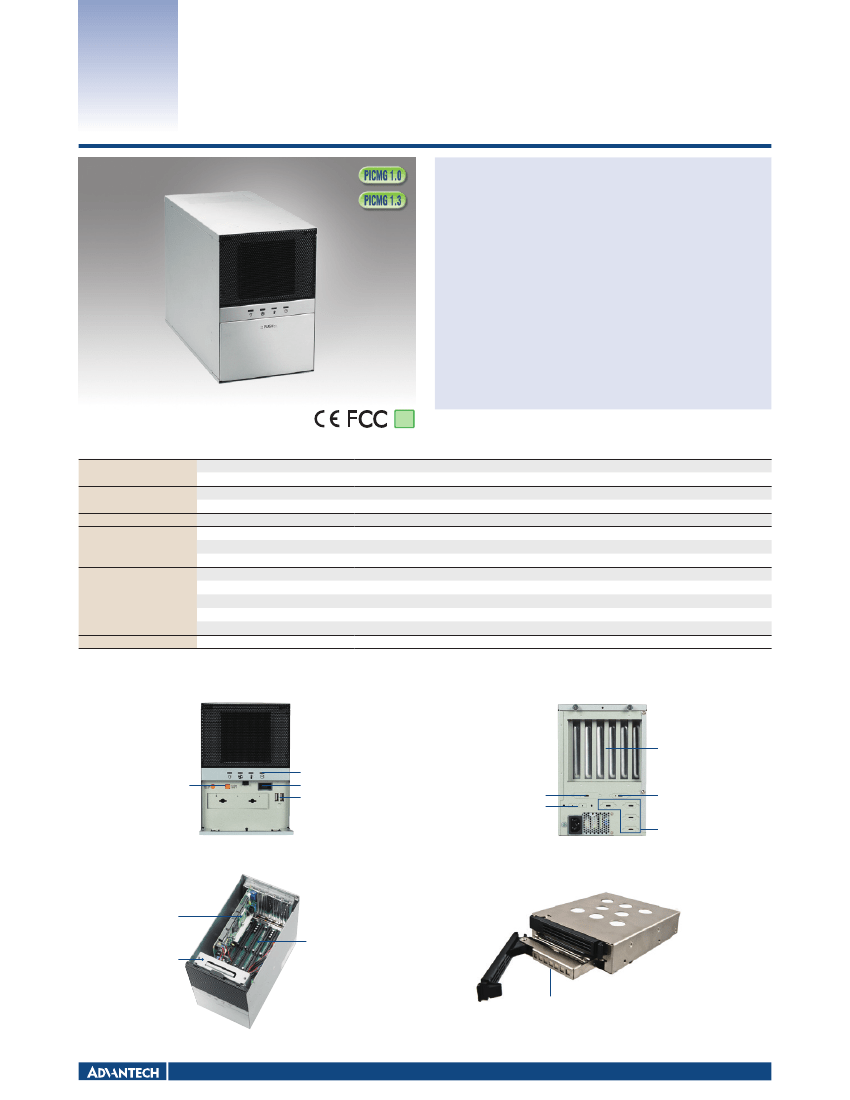

IPC-3026

6-Slot Desktop/Wallmount Chassis for

Half-Size SBC

Features

Stylish and compact design for embedded applications

LED indicators and alarm notification for system fault detection, including

Power, HDD, Temp, Fan

Shock-resistant disk drive bay to hold one 3.5" disk drives (or two 2.5" disk

drive with front access using special bracket)

Supports PICMG1.3/ PICMG1.0 6-slot half-size passive backplane.

Accepts 150 W power supply

RoHS

COMPLIANT

2002/95/EC

Specifications

Disk Drive Bay

Cooling

I/O Interface

Miscellaneous

3.5"

Fan

Air Filters

USB

LED Indicators

Front Panel

Rear Panel

Temperature

Humidity

Vibration (5-500 Hz)

Shock

Dimensions (W x H x D)

Front-accessible

Internal

-

1

1 (9 cm 53 CFM)

Yes

2 (Front accessible), 2 (Rear accessible)

Power, HDD, Temp, Fan

Reset button, Power switch

Reserved 4 9-pin D-Sub openings, 25-pin opening, DVI opening, dual USB ports

Operating

Non-operating

0 ~ 40° C (32 ~ 104° F)

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 85% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

1 Grms

2G

10 G (with 11 ms duration, half sine wave)

30 G

150 x 222 x 270 mm

Environment

Physical Characteristics

Front View

Rear View

I/O slots

LED alarm

Power switch

Dual USB ports

Reset button

25-pin opening

Dual USB ports

DVI opening

9-pin D-Sub openings

Interior View

IPC-3026

Half-size SBC

Half-size backplane

System fan

IDT-3120E

Optional mobile rack for dual 2.5"

SATA HDDs with a 3.5" drive bay

occupancy

Industrial Computer Chassis

All product specifications are subject to change without notice

Last updated : 26-Dec-2012
