Precision 2.92mm Female to SSMA Male Adapter
TECHNICAL DATA SHEET
Precision 2.92mm Female to SSMA Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
2.92mm Female
50 Ohms
SSMA Male
50 Ohms
Precision
Straight
PE9768
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Maximum Insertion Loss, dB
DC to 40
1.25:1
0.32

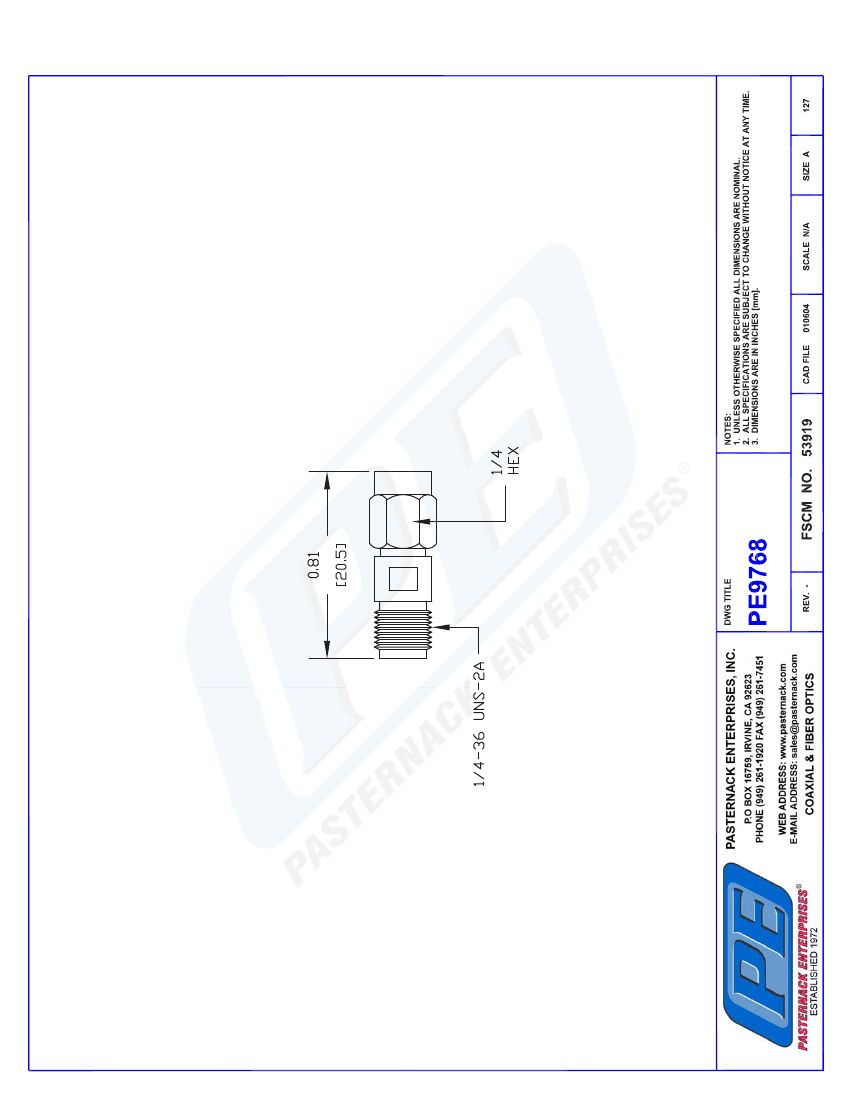

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.806 [20.47]
0.25 [6.35]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
2.92mm Female
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
PTFE
SSMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
1/4
8 [0.9]
Passivated Stainless Steel
ASTM A380
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision 2.92mm Female to SSMA Male Adapter PE9768
PE9768 REV
1
Precision 2.92mm Female to SSMA Male Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/2.92mm-female-ssma-male-straight-adapter-pe9768-p.aspx
PE9768
Precision 2.92mm Female to SSMA Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9768 REV
2
