N Female to Reverse Polarity N Male Adapter

Preview

Download Datasheet

View All

N Female to Reverse Polarity N Male Adapter

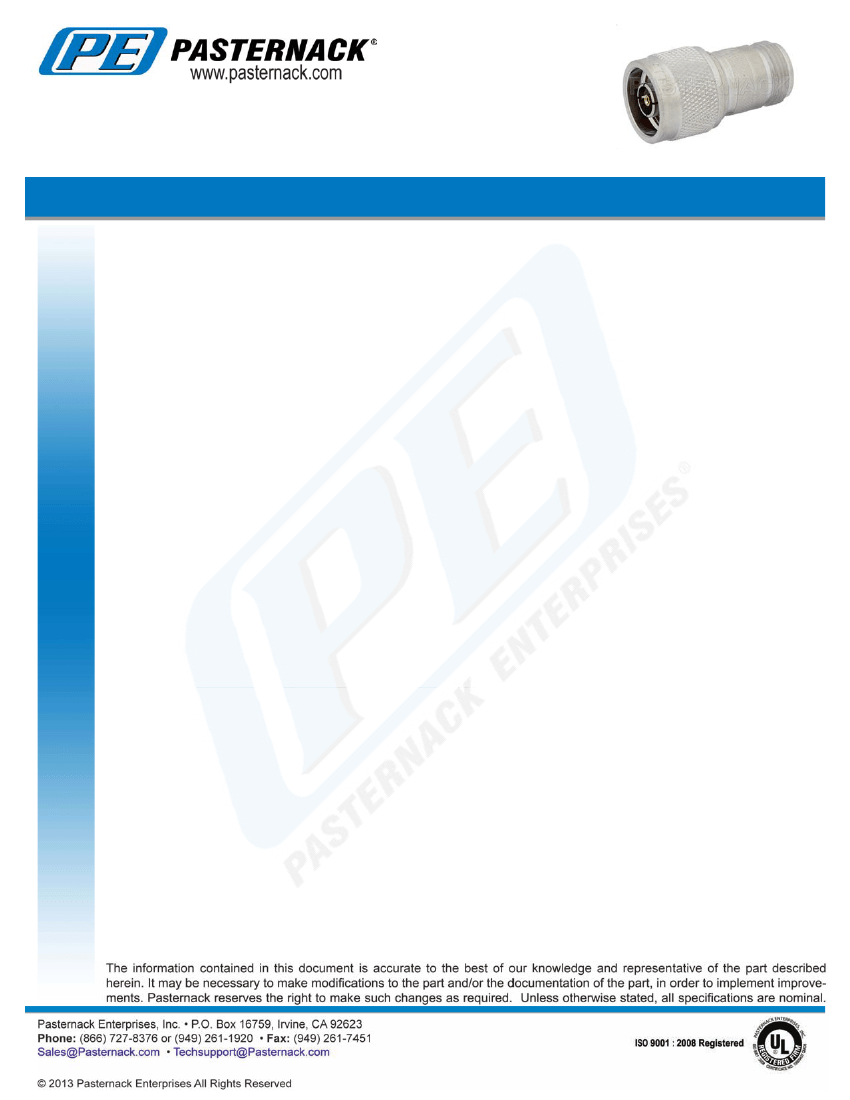

TECHNICAL DATA SHEET

N Female to Reverse Polarity N Male Adapter

Configuration

Connector 1

Impedance 1

Connector 2

Impedance 2

Adapter Design

Body Style

N Female

50 Ohms

N Male Reverse Polarity

50 Ohms

Standard

Straight

PE9770

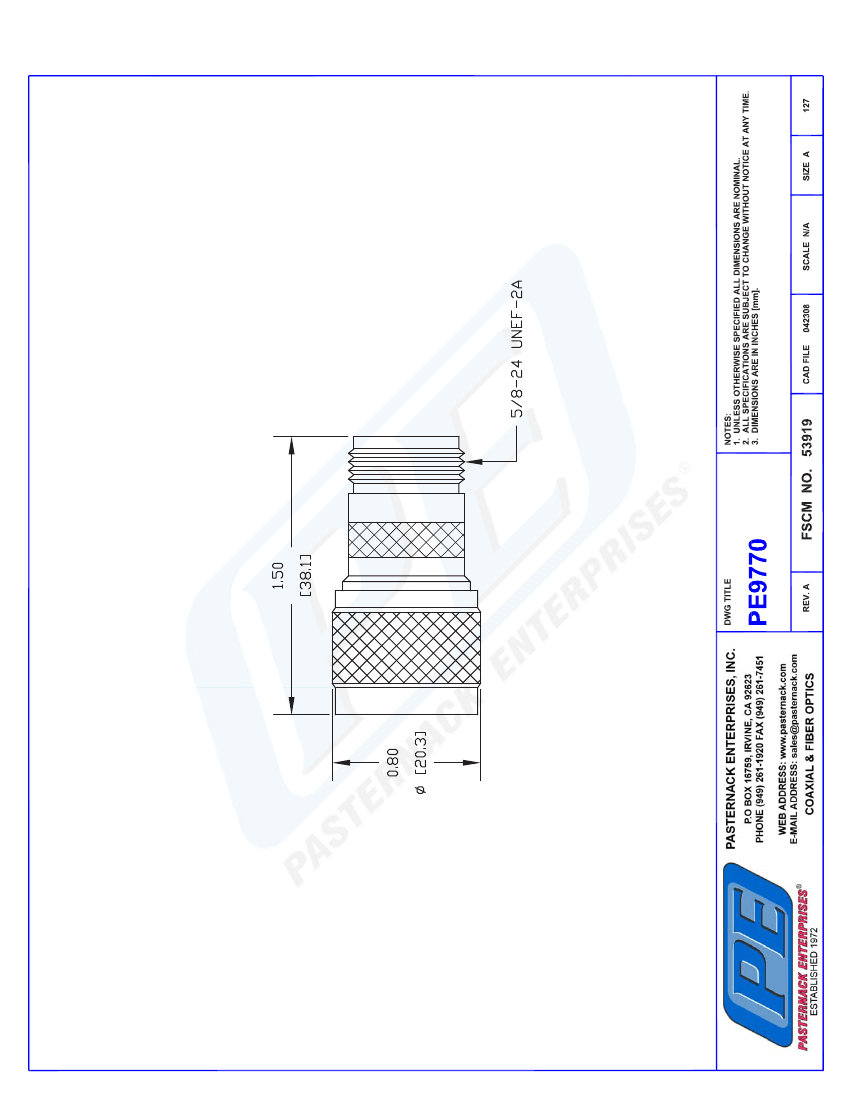

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

1.5 [38.1]

0.8 [20.32]

Connector 1

Type

Inner Conductor Material and Plating

Body Material and Plating

Dielectric Type

Connector 2

Type

Inner Conductor Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

N Female

Phosphor Bronze, Gold

Brass, Nickel

Teflon

N Male Reverse Polarity

Phosphor Bronze, Gold

Brass, Nickel

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/n-female-n-male-straight-adapter-pe9770-p.aspx

N Female to Reverse Polarity N Male Adapter from Pasternack Enterprises has same day shipment for domestic and

International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest

selection in the industry.
