CX2520SB38400D0FLJZ1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX2520SB38400D0FLJZ1

CX2520SB38400D0FLJZ1: DescriptionParallel - Fundamental Quartz Crystal, 38.4MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size47KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

CX2520SB38400D0FLJZ1 Overview

Parallel - Fundamental Quartz Crystal, 38.4MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX2520SB38400D0FLJZ1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	8 pF
Manufacturer's serial number	CX2520SB
Installation features	SURFACE MOUNT
Nominal operating frequency	38.4 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L2.5XB2.0XH0.45 (mm)/L0.098XB0.079XH0.018 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

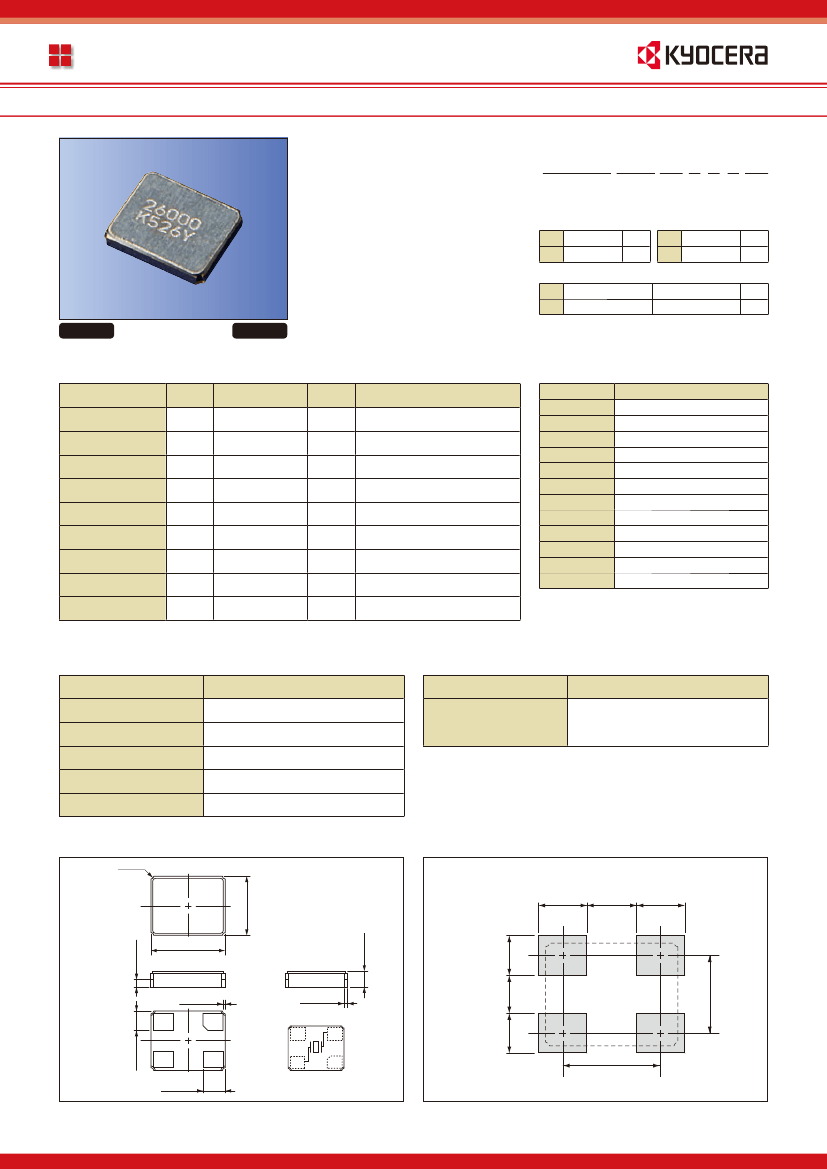

Surface Mount Type CX2520SB

2.5×2.0mm for Mobile Communications

Features

• Reference frequency for

telecommunication systems

• Reﬂow compatible

• Using ceramic package resulting in high

reliability

• Low Proﬁle (0.45mm)

How to Order

CX2520SB 26000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

②

Frequency

④

Frequency Stability

±10×10

−6

±15×10

−6

±10×10

−6

±15×10

−6

Std.

—

Std.

①

Series

③

Load Capacitance

6 pF

8 pF

—

Std.

Applications

• Mobile Communications, Bluetooth,

Wireless LAN

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−20

+70°C

−30

+85°C

Pb Free

RoHS Compliant

⑦

Individual Speciﬁcation

Speciﬁcations

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Speciﬁcation

13560 to 60000

Fundamental

±10

Table 1

Table 2

−30

+85

−40

+85

±15

Units

kHz

―

×10

−6

ohm

μW

°C

×10

−6

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

13560.000

16000.000

18000.000

19200.000

24000.000

26000.000

27120.000

32000.000

38400.000

40000.000

44000.000

54000.000

Part Number

CX2520SB13560D0FLJZ1

CX2520SB16000D0FLJZ1

CX2520SB18000D0FLJZ1

CX2520SB19200D0FLJZ1

CX2520SB24000D0FLJZ1

CX2520SB26000D0FLJZ1

CX2520SB27120D0FLJZ1

CX2520SB32000D0FLJZ1

CX2520SB38400D0FLJZ1

CX2520SB40000D0FLJZ1

CX2520SB44000D0FLJZ1

CX2520SB54000D0FLJZ1

∗

Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

13560 to 15999kHz

16000 to 19199kHz

19200 to 25999kHz

26000 to 29999kHz

30000 to 60000kHz

Motional Series Resistance

200Ω max.

Table2 Level of Drive

Frequency Range

13560 to 60000kHz

Level of Drive

10μW (100μW max.)

100Ω max.

80Ω max.

60Ω max.

50Ω max.

Dimensions

4 R0.15

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

2.0 0.1

1.2

0.5

1.2

0.15 0.05

2.5 0.1

0.45 0.05

0.3

1.0

8 0.10 0.1

GND

(NC)

HOT

4 0.15 0.1

HOT

4-0.65 0.1

GND

CONNECTION

(TOP VIEW)

1.7

4 0.75 0.1

1.0

1.3
