75 Ohm N DC Block Operating From 100 MHz to 4 GHz
TECHNICAL DATA SHEET
75 Ohm N DC Block Operating From 100 MHz to 4 GHz
Configuration
Design
Body Style
Impedance
Connector 1
Connector 2
Inner DC Block
Straight
75 Ohms
N Male
N Female
PE8234
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Insertion Loss, dB
Maximum Operating Voltage, Vrms
0.1 to 4
75
1.35:1
0.5
200
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +125
1.9 [48.26]
0.8 [20.32]
Passivated Stainless Steel
Body Material and Plating
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
N Male
Beryllium Copper, Gold
Passivated Stainless Steel
N Female
Beryllium Copper, Gold
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm N DC Block Operating From 100 MHz to 4 GHz PE8234
PE8234 REV
1
75 Ohm N DC Block Operating From 100 MHz to 4 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE8234
75 Ohm N DC Block Operating From 100 MHz to 4 GHz from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm N DC Block Operating From 100 MHz to 4 GHz PE8234
URL:
http://www.pasternack.com/75-ohm-n-inner-dc-block-0.1-4-ghz-pe8234-p.aspx
PE8234 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE8234

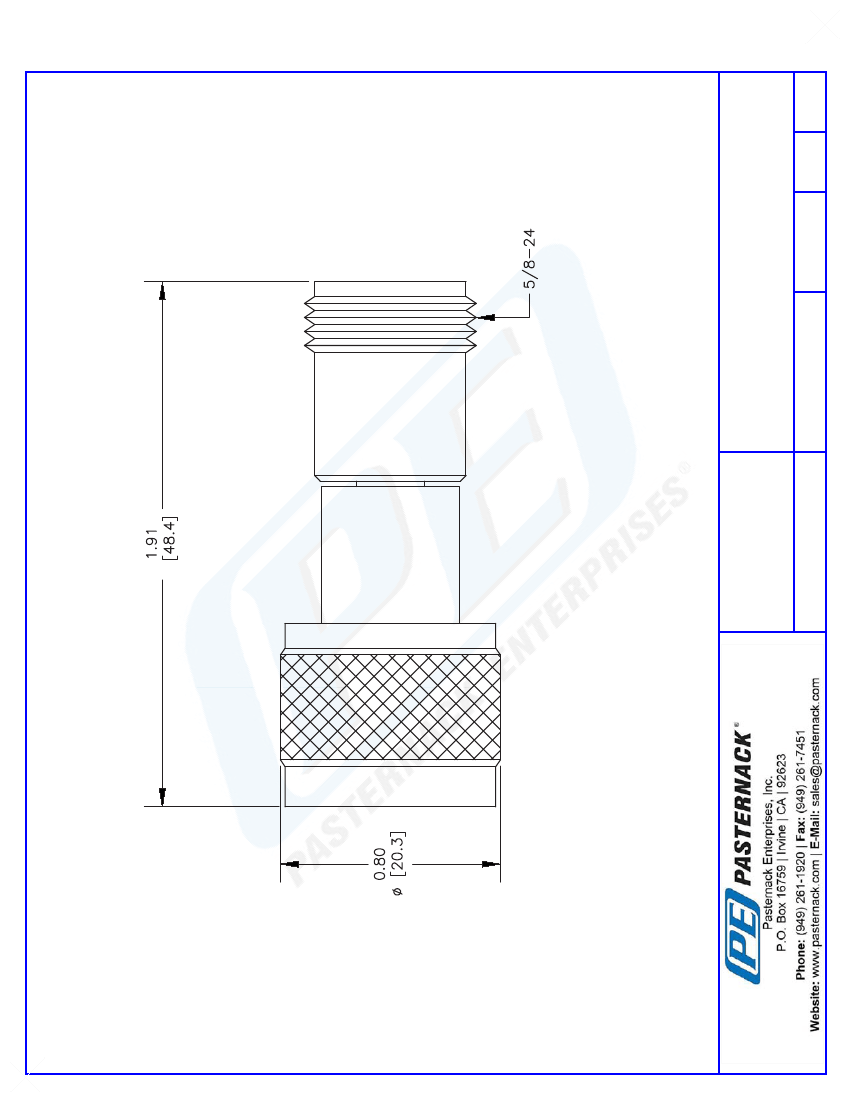

CAD Drawing
75 Ohm N DC Block Operating From 100 MHz to 4 GHz
PE8234 REV
PE8234
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
080702
SCALE N/A
SIZE A
127
3
