MC12022TSADR2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> MC12022TSADR2

Preview

MC12022TSADR2: DescriptionECL SERIES, PRESCALER, PDSO8, PLASTIC, SOIC-8; Categorylogic logic; File Size76KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

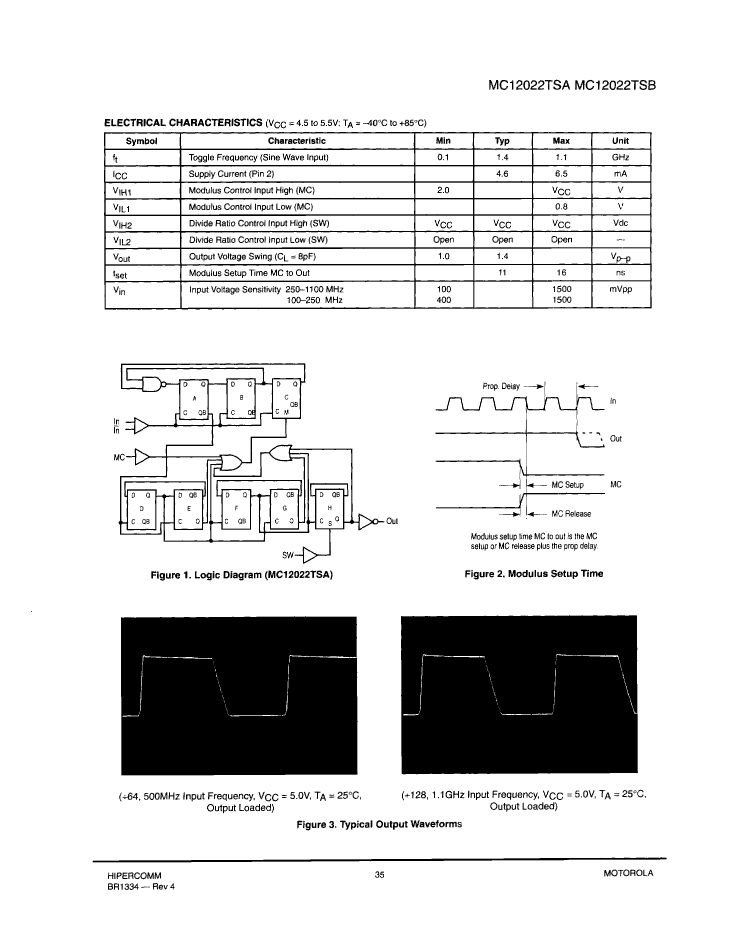

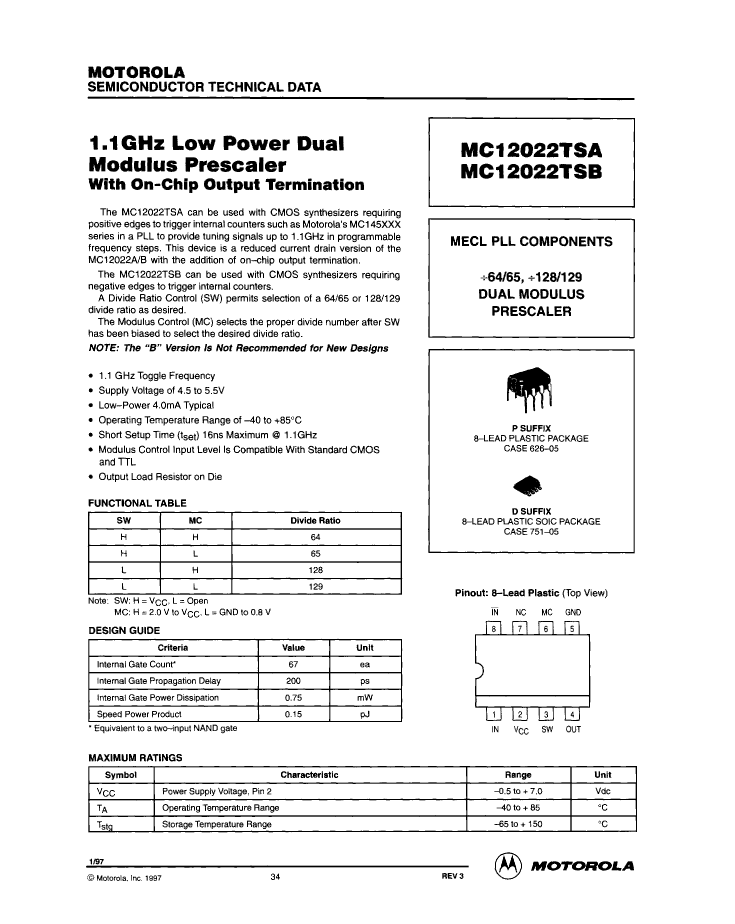

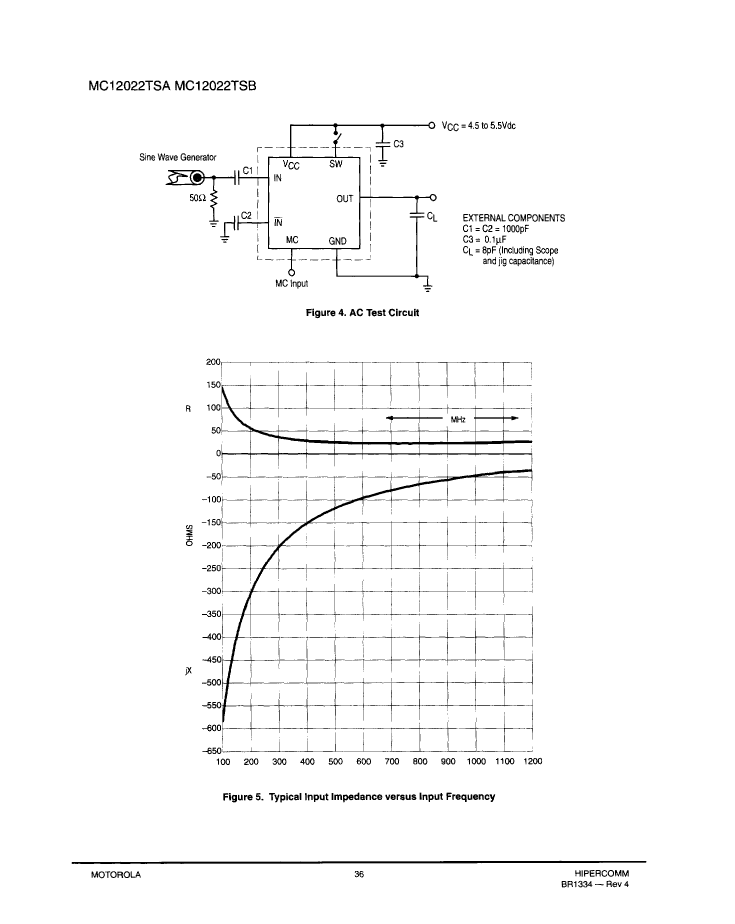

Download Datasheet Parametric Compare View All

MC12022TSADR2 Overview

ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOIC-8

MC12022TSADR2 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Other features	FOR +VE EDGE TRIGGERED SYNTHESIZERS
series	ECL
JESD-30 code	R-PDSO-G8
length	4.9 mm
Load capacitance (CL)	8 pF
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	6.5 mA
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
minfmax	1100 MHz

Preview

Download Datasheet

View All

MC12022TSADR2 Related Products

	MC12022TSADR2	MC12022TSBD	MC12022TSBDR2
Description	ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOIC-8	ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOIC-8	ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOIC-8
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP,	SOP, DIP8,.3	SOP,
Contacts	8	8	8
Reach Compliance Code	unknown	unknown	unknown
Other features	FOR +VE EDGE TRIGGERED SYNTHESIZERS	FOR -VE EDGE TRIGGERED SYNTHESIZERS	FOR -VE EDGE TRIGGERED SYNTHESIZERS
series	ECL	ECL	ECL
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm	4.9 mm
Load capacitance (CL)	8 pF	8 pF	8 pF
Logic integrated circuit type	PRESCALER	PRESCALER	PRESCALER
Number of data/clock inputs	1	1	1
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	6.5 mA	6.5 mA	6.5 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm
minfmax	1100 MHz	1100 MHz	1100 MHz
Maker	Motorola ( NXP )	-	Motorola ( NXP )
