MSLDL-TTL-16 datasheet, PDF - EEWORLD Datasheet

MSLDL-TTL-16: DescriptionActive Delay Line, 1-Func, 1-Tap, True Output, TTL, PSIP4, 0.350 INCH HEIGHT, MINI, PLASTIC, MODULE, SIP-5/4; Categorylogic logic; File Size292KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

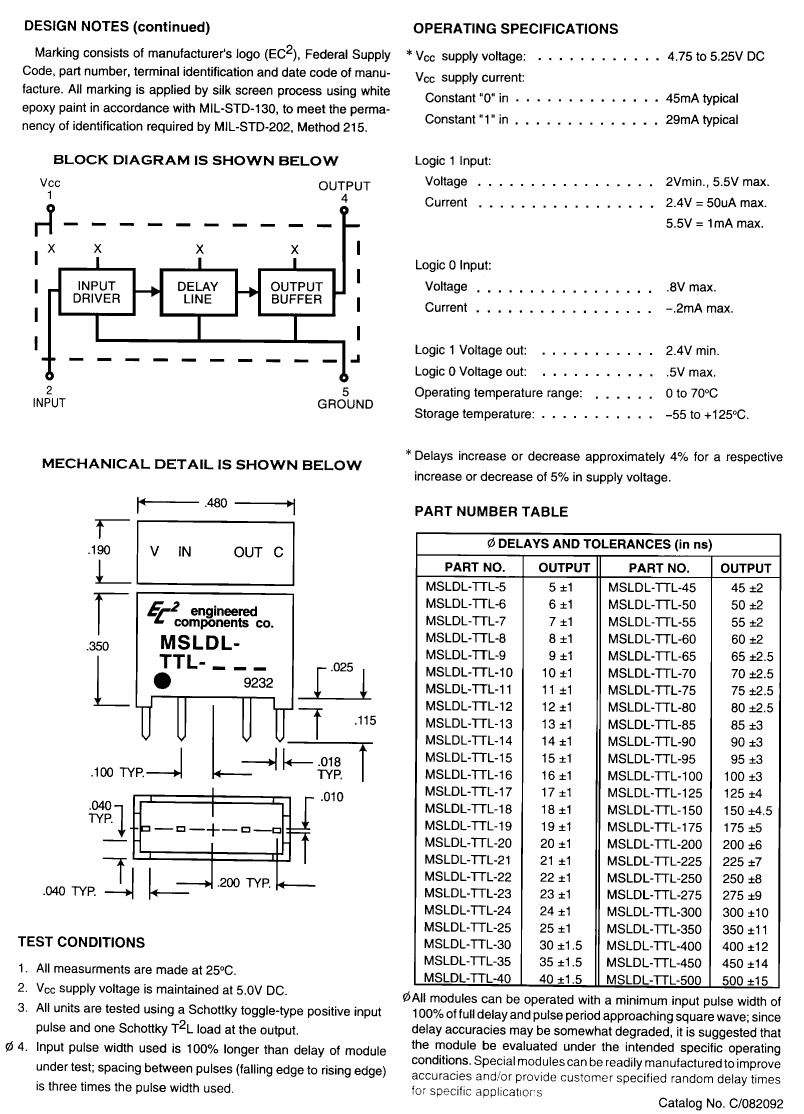

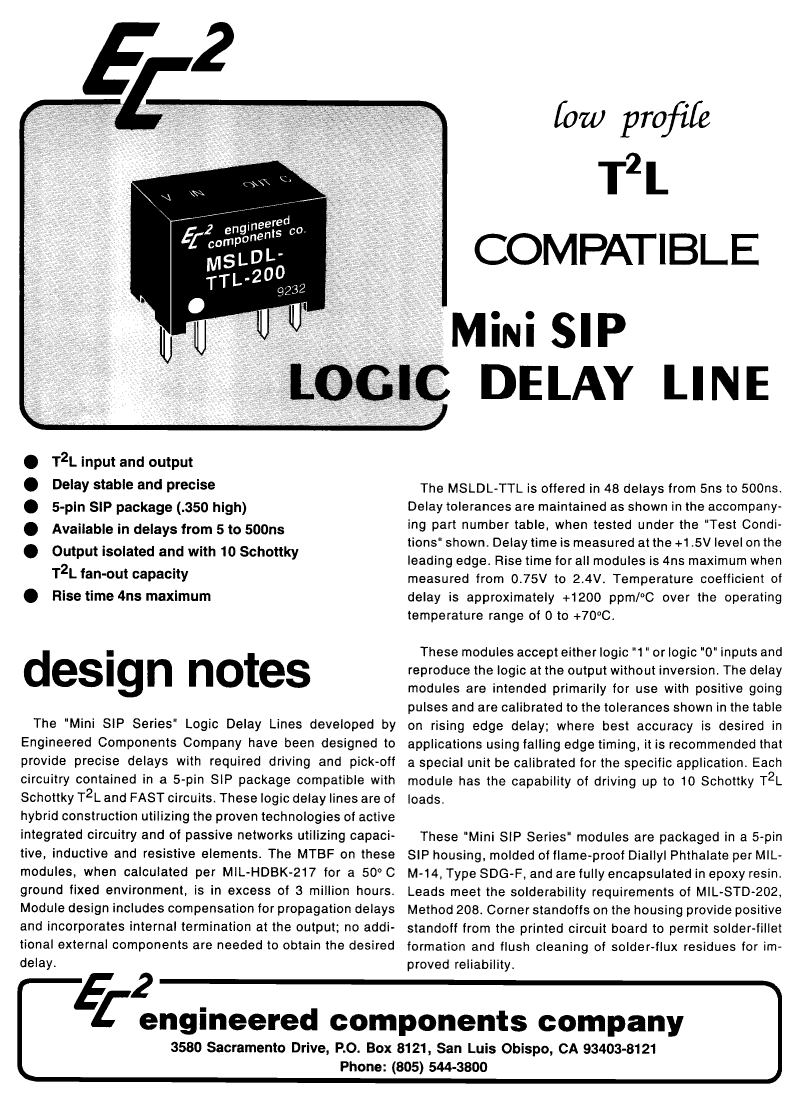

MSLDL-TTL-16 Overview

Active Delay Line, 1-Func, 1-Tap, True Output, TTL, PSIP4, 0.350 INCH HEIGHT, MINI, PLASTIC, MODULE, SIP-5/4

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	SIP
package instruction	SIP,
Contacts	5/4
Reach Compliance Code	unknown
Other features	TYP. ICC = 45MA; MAX FAN OUT OF 10 STTL LOAD PER OUTPUT; INTERNAL TERMINATION
series	TTL
JESD-30 code	R-PSIP-T4
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	8.89 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Total delay nominal (td)	16 ns
