Sensor/actuator cable - SAC-4P-M12MS/15-28X/M12FSSHOD - 1018488
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

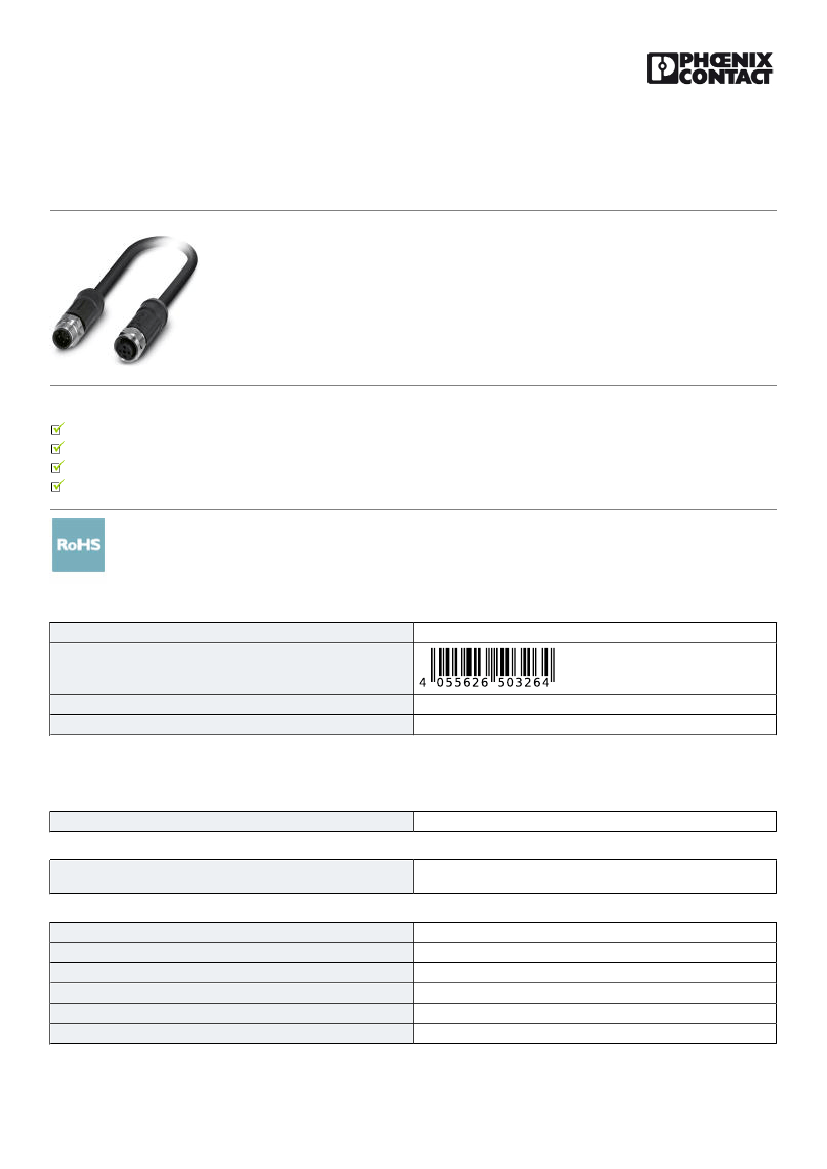

Sensor/actuator cable, 4-position, PE-X/PE-X halogen-free, black-gray RAL 7021, shielded, Plug straight
M12, A-coded, on Socket straight M12, A-coded, cable length: 15 m, for outdoor applications, with high-grade
steel knurl
Your advantages
Easy and safe: 100% electrically tested plug-in components
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Robust throughout: resistant to oil, UV, and ozone, withstands temperatures from -40°C to +105°C
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626503264
85444290
1
Technical data
Dimensions
Length of cable
15 m
Ambient conditions
Ambient temperature (operation)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC
60512-11-4))
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
4A
48 V AC
60 V DC
4
≥ 100 MΩ
A - standard
01/03/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1018488
Sensor/actuator cable - SAC-4P-M12MS/15-28X/M12FSSHOD - 1018488
Technical data
General
Standards/regulations
Status display
Degree of pollution
Insertion/withdrawal cycles
M12 connector IEC 61076-2-101
No
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
V0
CuSn
Ni/Au
PP
PP
Stainless steel
FPM
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
PE-X black
28X
Li2X2X-C-Vl-2X
4x 0.5 mm² (Signal line)
20
28x 0.15 mm
1.6 mm ±0.05 mm (Signal line)
approx. 0.3 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
approx. 0.45 mm (Inner sheath)
Wire colors
Overall twist
Length of twist, overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
brown, white, blue, black
4 wires, twisted
108.8 mm
Braided copper wires
85 %
black-gray RAL 7021
6.8 mm ±0.2 mm
34 mm
68 mm
1000000
68 mm
10 m
01/03/2019 Page 2 / 5
https://www.phoenixcontact.com/in/products/1018488
Sensor/actuator cable - SAC-4P-M12MS/15-28X/M12FSSHOD - 1018488
Technical data
Cable
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Cable capacity
3 m/s
10 m/s²
74 kg/km
PE-X
PE-X
PE-X
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
≤ 39 Ω/km (at 20 °C)
≤ 100 nF/km (Conductor-conductor, asymmetrical/touching)
≤ 85 nF/km (Conductor-conductor, symmetrical/star quad)
≤ 150 nF/km (Wire/shield)
Conductor inductance
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
0.64 mH/km (at 1 kHz)
0.46 mH/km (at 10 MHz)
≤ 300 V AC
≥ 3000 V AC
Irradiated
according to DIN 60332-1-2
according to DIN EN 50266-2-5
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
UV resistant according to DIN VDE 0276-605
-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
2
2
1
Pin assignment M12 plug, 4-pos., A-coded, view plug side
Pin assignment M12 socket, 4-pos., A-coded, view female side
01/03/2019 Page 3 / 5
https://www.phoenixcontact.com/in/products/1018488
Sensor/actuator cable - SAC-4P-M12MS/15-28X/M12FSSHOD - 1018488

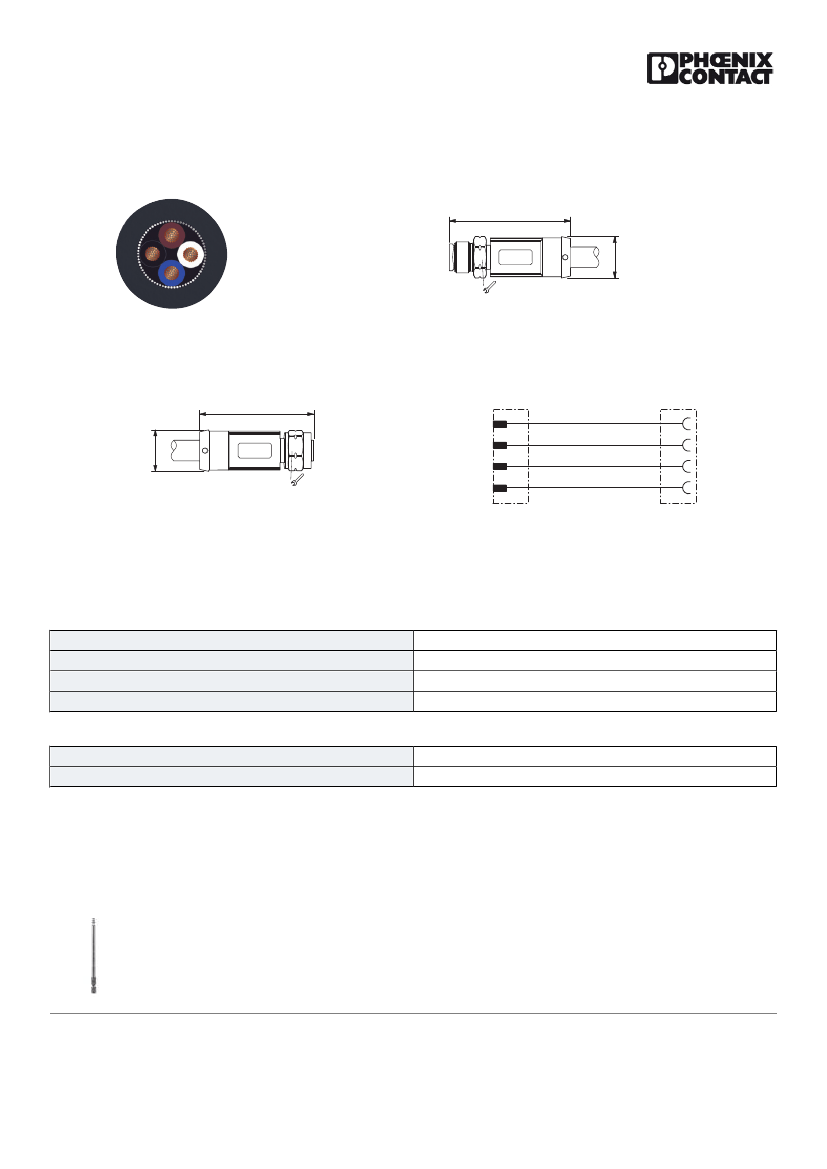

Cable cross section
Dimensional drawing
46,8
14
PE-X black [28X]
Plug, M12 x 1, straight, shielded
Dimensional drawing
44
1
Circuit diagram
Ø16
1
4
3
2
Ø16
4
3
14
2
M12 x 1 socket, straight
Contact assignment of the M12 connector and the M12 socket
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27279200
27279218
27279218
27060311
ETIM
ETIM 5.0
ETIM 6.0
EC001855
EC001855
Accessories
Accessories

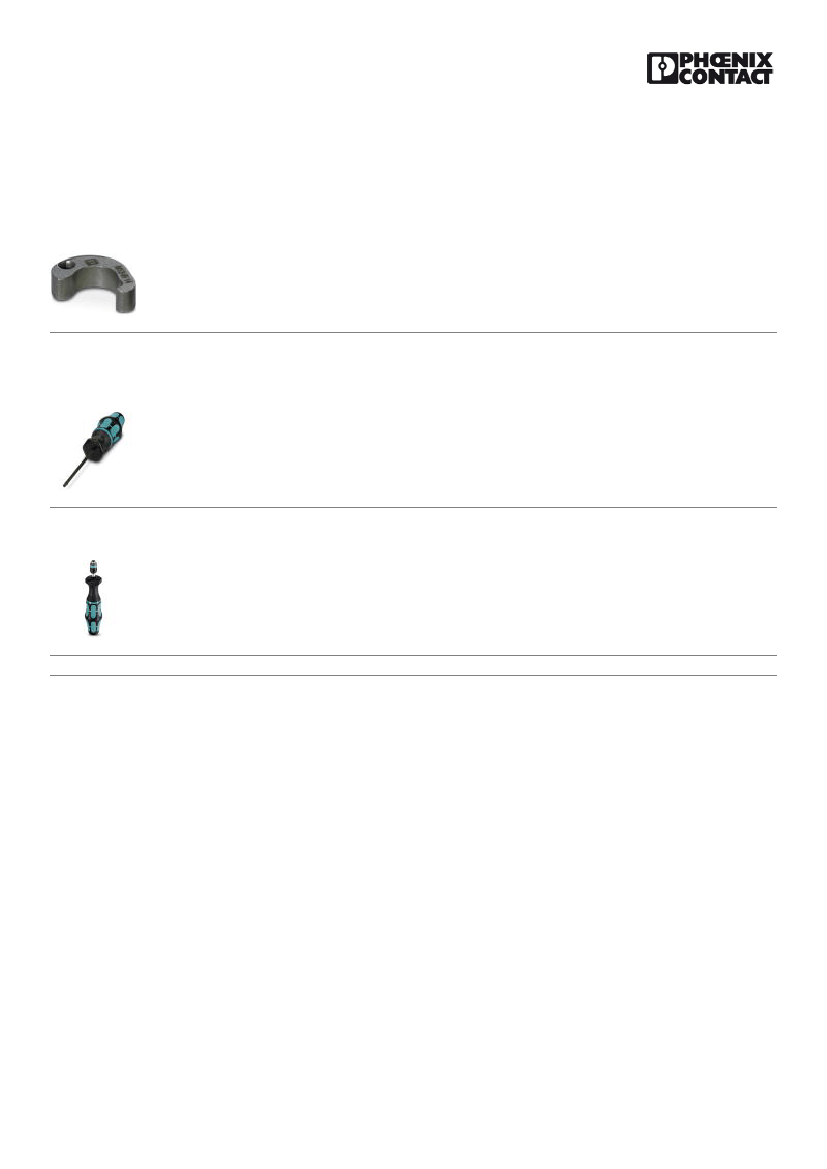

Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
01/03/2019 Page 4 / 5
https://www.phoenixcontact.com/in/products/1018488
Sensor/actuator cable - SAC-4P-M12MS/15-28X/M12FSSHOD - 1018488
Accessories
Adapter - SAC BIT M12-W14 - 1212513
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a hexagonal
knurl wrench size of 14 mm, with 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/03/2019 Page 5 / 5
