FDD05-05D2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FDD05-05D2

FDD05-05D2: DescriptionPower Supply Module; CategoryPower/power management The power supply circuit; File Size143KB，4 Pages; ManufacturerCHINFA; Websitehttp://www.chinfa.com/

Download Datasheet Parametric View All

FDD05-05D2 Overview

Power Supply Module

FDD05-05D2 Parametric

Parameter Name	Attribute value
Maker	CHINFA
package instruction	, MODULE,5LEAD,.8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	36 V
Minimum input voltage	18 V
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output current	0.5 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,5LEAD,.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	COMMERCIAL EXTENDED

Preview

Download Datasheet

View All

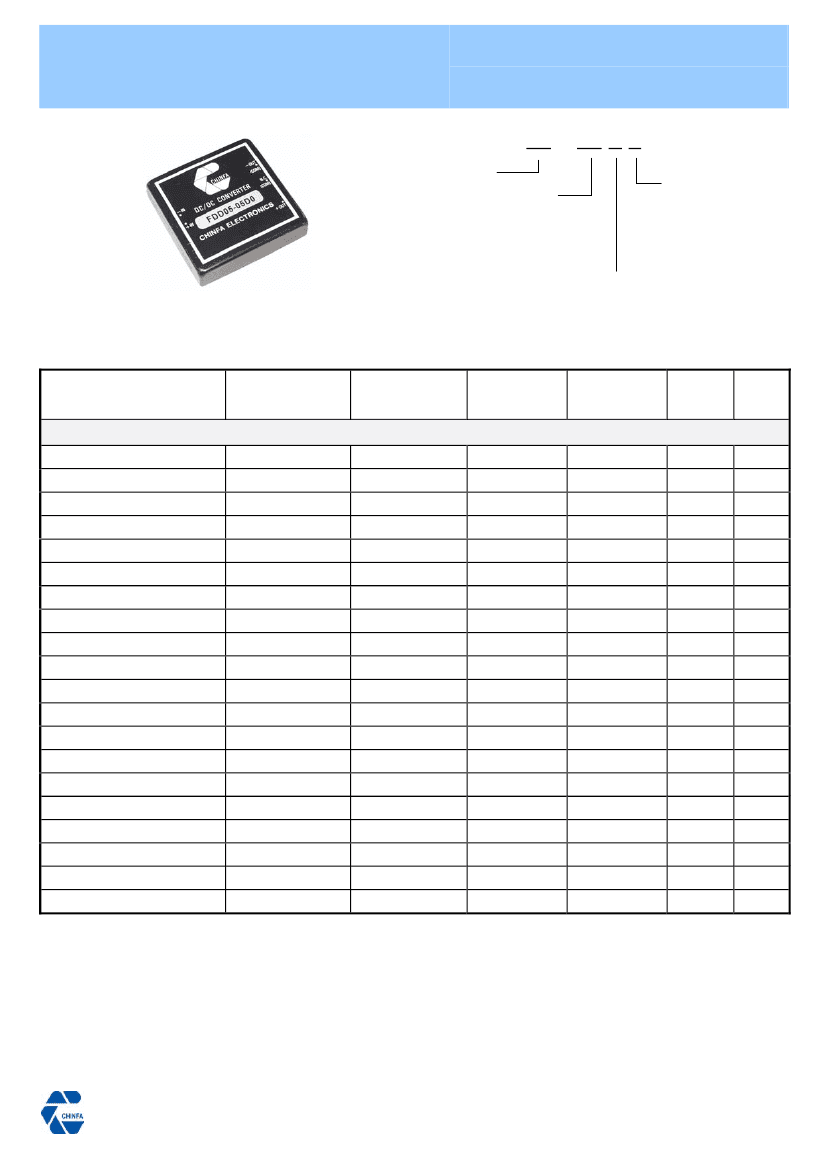

FDD05 SERIES

DC-DC CONVERTER

5 ~ 6W

FDD05 – 05 S 1

WATTAGE

: 3.3V OUT

5V OUT

12V OUT

15V OUT

S : SINGLE OUTPUT

D : DUAL OUTPUT

9~18V

18~36V

36~72V

9~36V

18~72V

20~60V

*=BLANK

MODEL LIST

MODEL NO.

INPUT

VOLTAGE

OUTPUT

WATTAGE

OUTPUT

VOLTAGE

OUTPUT

CURRENT

EFF.

(MIN.)

CASE

Single Output Models

FDD05 - 05S

FDD05 - 12S

FDD05 - 15S

FDD05 - 05S1

FDD05 - 12S1

FDD05 - 15S1

FDD05 - 05S2

FDD05 - 12S2

FDD05 - 15S2

FDD05 - 05S3

FDD05 - 12S3

FDD05 - 15S3

FDD05 - 03S4

FDD05 - 05S4

FDD05 - 12S4

FDD05 - 15S4

FDD05 - 03S5

FDD05 - 05S5

FDD05 - 12S5

FDD05 - 15S5

20~60 VDC

9~18 VDC

18~36 VDC

36~72 VDC

9~36 VDC

18~72 VDC

5 WATTS

6 WATTS

5 WATTS

6 WATTS

5 WATTS

6 WATTS

5 WATTS

6 WATTS

5 WATTS

6 WATTS

5 WATTS

6 WATTS

5 VDC

1000 mA

500 mA

400 mA

1000 mA

500 mA

400 mA

1000 mA

500 mA

400 mA

1000 mA

500 mA

400 mA

1500 mA

1000 mA

500 mA

400 mA

1500 mA

1000 mA

500 mA

400 mA

72%

63%

68%

72%

70%

72%

70%

72%

+ 12 VDC

+ 15 VDC

5 VDC

+ 12 VDC

+ 15 VDC

5 VDC

+ 12 VDC

+ 15 VDC

5 VDC

+ 12 VDC

+ 15 VDC

+3.3 VDC

5 VDC

+ 12 VDC

+ 15 VDC

+3.3 VDC

5 VDC

+ 12 VDC

+ 15 VDC

CHINFA ELECTRONICS IND., CO. LTD.

ISO 9001 Certified

www.chinfa.com

sales@chinfa.com
