160, 220 WATTS
MULTIPLE OUTPUT
MDT-160
MTC -160
MDT-220
*9.05
229.87
for MTX

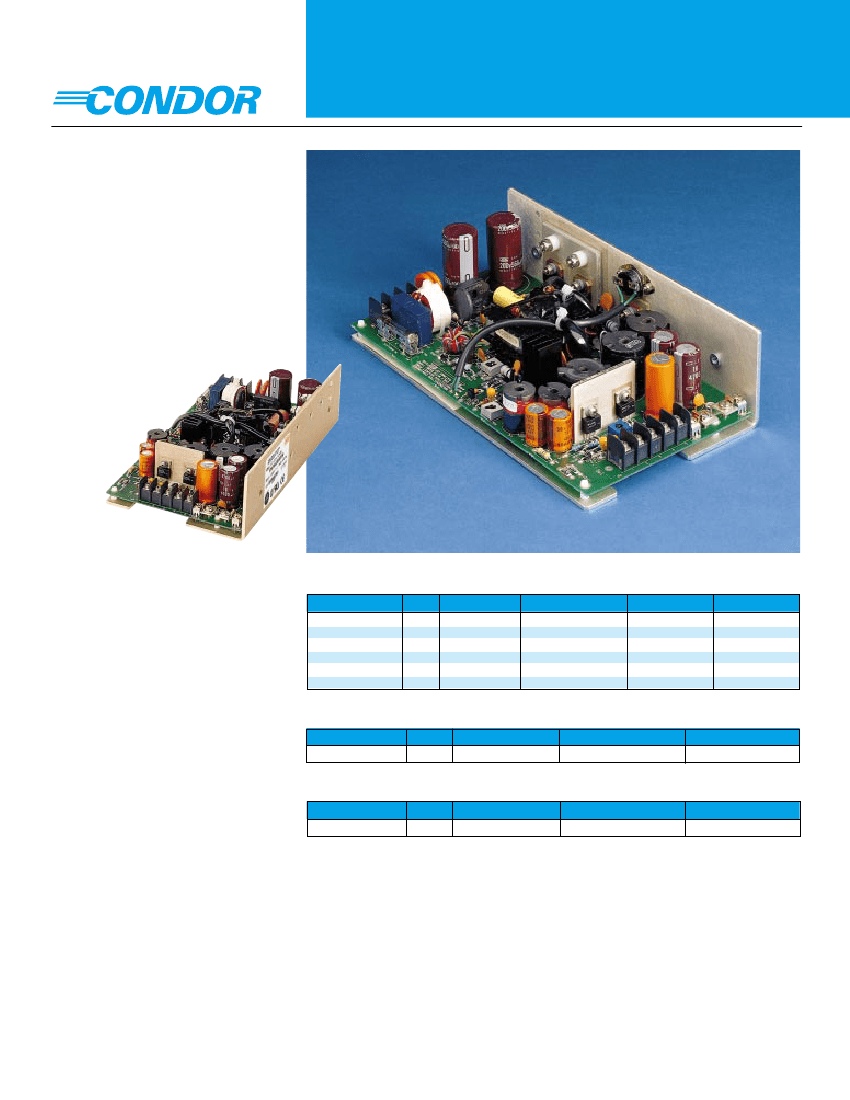

Featuring:
•
9” x 5” x 2.5” package
•
Proven low component count
design
•
High power densities
•
Meets international safety agency
requirements
•
High peak currents for motor
starting
•
Remote sense, thermal protection,
and OVP
•
Cannot be damaged by no load or
low line conditions
•
AC automatic line selection option
STANDARD MDT SERIES
MODEL
MDT-163-0512R
MDT-164-1212R
MDT-164-2412R
MDT-223-0512R
MDT-224-1212R
MDT-224-2412R
PWR
160
160
160
220
220
220
OUTPUT #1
+5V @ 25A
+5V @ 25A
+5V @ 20A
+5V @ 30A
+5V @ 30A
+5V @ 25A
OUTPUT #2
+12V @ 4/9 A pk
+12V @ 4/9 A pk
+24V @ 3/6 A pk
+12V @ 6/10 A pk
+12V @ 6/10 A pk
+24V @ 4/8 A pk
OUTPUT #3
+12V @ 1.5A
+12V @ 1A
+12V @ 1A
12V @ 2.5A
+12V @ 1.5A
+12V @ 1.5A
OUTPUT #4
-12V @ 1A
-12V @ 1A
-12V @ 1.5A
-12V @ 1.5A
TELECOM MTC SERIES
MODEL
MTC-163-0515
PWR
160
OUTPUT #1
+5V @ 30A
OUTPUT #2
+15V @ 1.5A
OUTPUT #3
-12V @ 1.5A
MASS STORAGE MDT-223-1212R
MODEL
MDT-223-1212R
PWR
220
OUTPUT #1
+5V @ 10A
OUTPUT #2
+12V @ 10/16 A pk
OUTPUT #3
-12V @ 1A
These are Condor’s lower power series.
They are ideal for new OEM products
that are designed for future expansion.
Outputs start at 160 watts and power
needs can go to 350 watts by using the
MAX-350 series without changing the
footprint.
You’ll get up to 30 Amps for logic and
memory, and peak currents up to 16
Amps for motor starting in a package
measuring only 9” x 5” x 2.5”.
Other features like high power densi-
ties, AC autoline select option, and meet-
ing international safety requirements, give
design flexibility, low price, and worldwide
marketability.
Check the specifications of these power
supplies for your next OEM computer-
based or telecom product design.
Condor D.C. Power Supplies, Inc., A subsidiary of SL Industries, Inc. 805-486-4565 • (800) 235-5929 Fax: (805) 487-8911 http://www.condorpower.com
160, 220 WATTS
9”x 5”x 2.5”
MDT-160, 220 MTC-160
MDT-160, 220
2.6 lbs - 1.2 kgs
MTC-160
2.6 lbs - 1.2 kgs

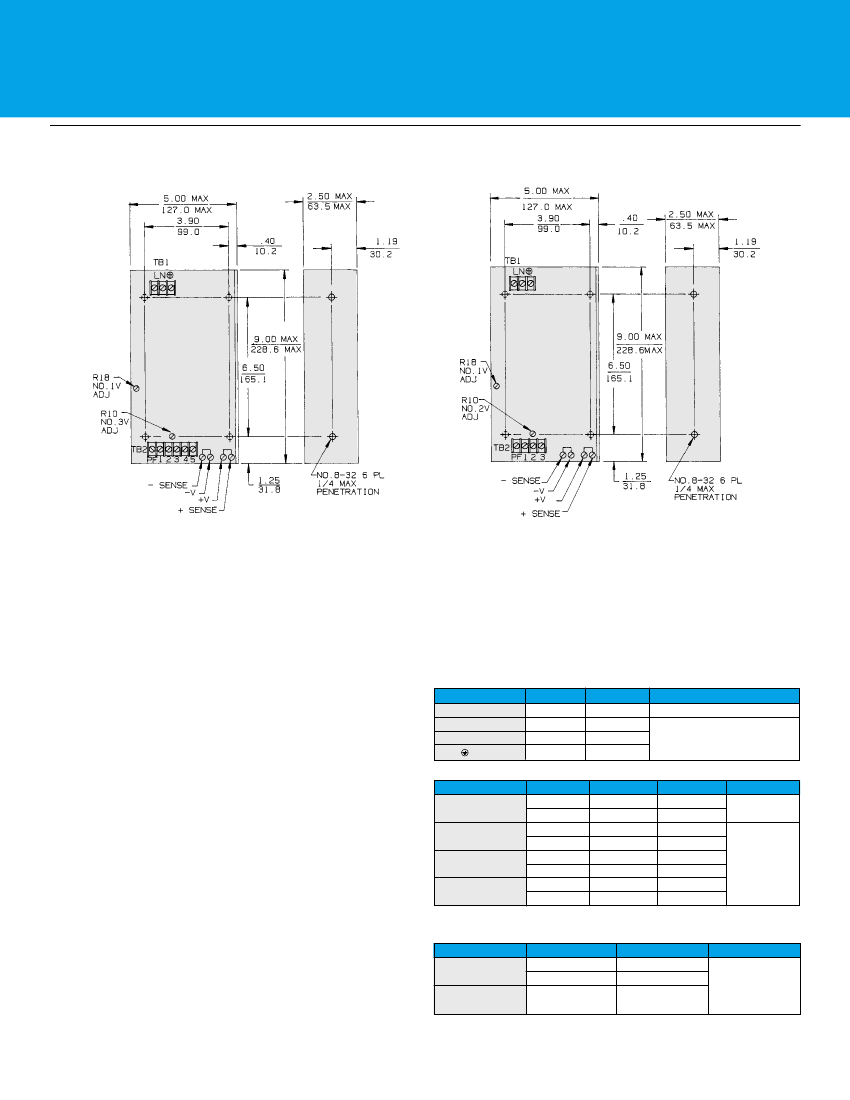

Dimensions:
Inches
Millimeters
SPECIFICATIONS: ALL MODELS
INPUT
AC Input:
90-132 Vac/180-264 Vac, 47 to 63 Hz. User selectable. See option “A” for
automatic line selection. Internally fused for 7 A.
Inrush:
Cold start AC current is less than 16 A at 115 Vac and 32 A at 230 Vac. Limited by
thermistor.
Holdup Time:
16 ms minimum after removal of power, at nominal line, full load.
Efficiency:
75% typical.
Brownout Protection:
Holds regulation to 85 Vac or 170 Vac.
OUTPUT
Adjustability:
Main output and output #3 user adjustable ±5% minimum. Output #4 (output
#3 in MTC series) is not adjustable and has ±5% initial accuracy.
Line & Load Reg:
±1% over AC input range and 0 to 100% load change. On MDT series
only, output #2 holds ±5% total regulation band, including the combined effects of line
regulation, load regulation for a load change of ±40% from 60% initial load, and cross
regulation due to a load change of ±25% on the 5 V line from 60% initial load. Maximum
combined currents on outputs #1 and 2 cannot exceed output #1 rating, except for
MDT-223-1212R. Main +5 V output requires minimum load of 20% for all models.
Ripple & Noise:
Less than 1% p-p or 100 mV, whichever is greater.
Remote Sense (+5V):
Compensates for 250 mV total line drop. Open sense lead protection.
Temperature Coefficient:
0.02% per degree C.
Stability:
0.1% over 8 hours after 30 minutes warm-up.
Transient Response (+5V):
Output voltage returns to within 1% in less than 500 µs for a
50% load change. Peak transient does not exceed 5%.
Overload Protection:
All outputs are protected against overload and short circuit. Automatic
recovery upon removal of fault.
Overvoltage Protection (+5V):
Protects load against power supply induced overvoltage. Trip
point is factory set so that output voltage cannot exceed 6.8 V.
Reverse Voltage:
Protected against reverse voltage up to supply current rating.
ENVIRONMENTAL
Thermal Protection:
Shuts down power supply if overheated. Automatic recovery.
Temperature Range:
0° to 50°C at full ratings. Derate to half power at 70 °C.
Safety Agencies:
Most models are approved to UL1950; CSA 22.2 #234; IEC 950 and TÜV
EN60950, Class 1 SELV., CE 72/23/EEC/93/68EEC (low voltage directive).
Conducted RFI:
Meets FCC Part 15, Subpart J, Class A; EN55022 Class B; CISPR 22 Class B.
Output Isolation:
Isolated from ground 50 Vdc.
Cooling:
30 CFM required to achieve full ratings. MDT-160 models are convection cooled.
OPTIONS:
Option “A”, AC Auto-Range:
Automatically selects proper AC line voltage range to enable
power operation at either 115 or 230 Vac without user intervention.
Option “P”, AC Power Fail:
Provides TTL “0” 5 ms before output voltage goes out of
regulation band upon loss of AC power. VMEbus compatible, provides 48 mA sink current
capability.
Consult factory for other available options.
AC INPUT
FUNCTION
Input Select
TB1- (L )
TB1- (N)
TB1- ( )
115 VAC
Short
Line
Neutral
Safety Ground
230 VAC
CONNECTOR
Open
.110 male Fastons or #16 bus jumper
Line 1
Barrier strip #6-32 screws
3/8” centers
Line 2
Safety Ground
DC OUTPUT
FUNCTION
Output #1
Output #2
Output #3
Output #4
MDT-163/223
Terminal +5
Terminal COM
TB2-3 (+)
TB2-4 (Rtn)
TB2-2 (+)
TB2-1 (Rtn)
MDT-164/224
Terminal +5
Terminal COM
TB2-4 (+)
TB2-5 (Rtn)
TB2-3(+)
TB2-2 (Rtn)
TB2-1 (–)
TB2-2 (RTN)
MTC-163
Terminal +5
Terminal COM
TB2-3 (+)
TB2-2 (Rtn)
TB2-1 (–)
TB2-2 (Rtn)
CONNECTOR
Bus bars
#6-32screws
Barrier strip
#6-32 screws
3/8” centers
Note: Return lines (Rtn) are connected to power supply common(COM)
STATUS AND CONTROL
FUNCTION
Remote Sense
AC Power Fail
(optional function)
LOCATION
Terminal + S
Terminal – S
Terminal PF
NOTES
CONNECTOR
Output #1 Sense
Output #1 Sense Rtn #6-32 screws
Reference to (– S)
