CX4025SB32000F0FLJZZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> CX4025SB32000F0FLJZZ

Preview

CX4025SB32000F0FLJZZ: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 32 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size135KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

CX4025SB32000F0FLJZZ Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 32 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX4025SB32000F0FLJZZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	10 pF
Manufacturer's serial number	CX4025SB
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

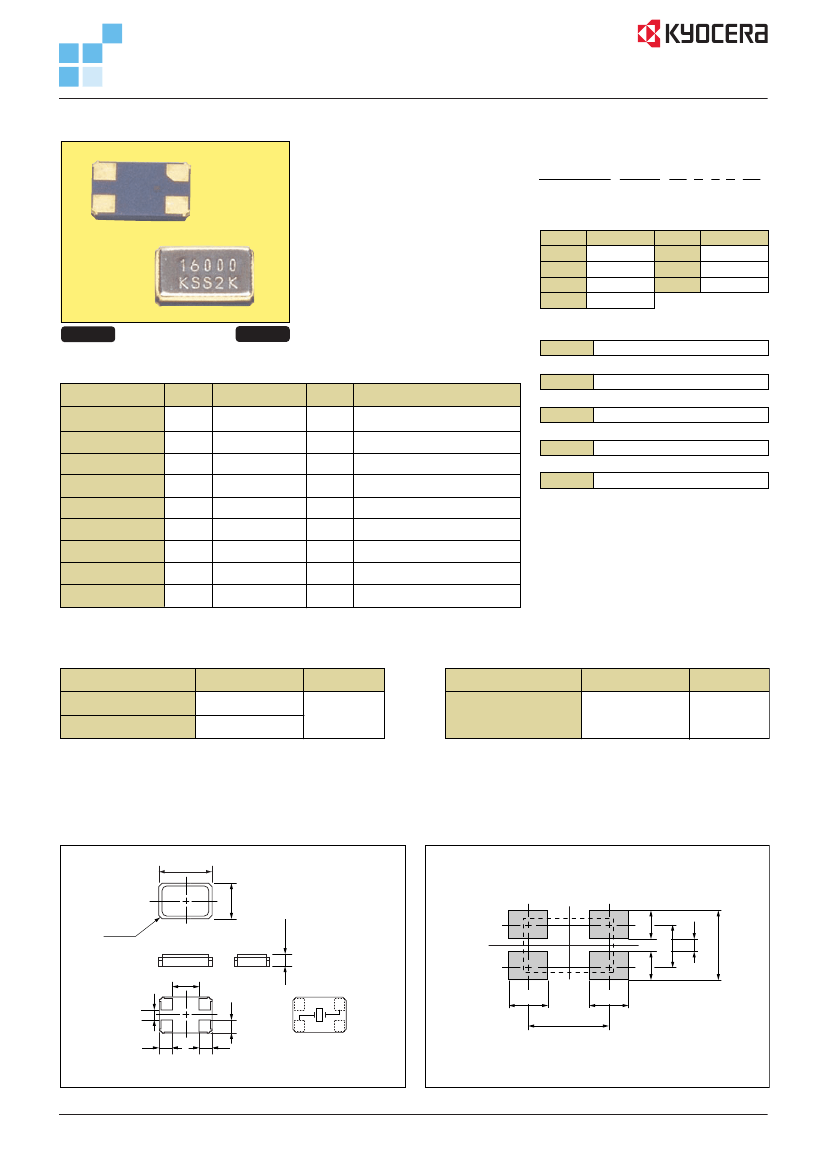

Surface Mount Type CX4025SB (CX-4025S)

4.0×2.5mm for Mobile Communications, SRWI

Features

• Reference frequency

for telecommunication systems

• Reflow compatible

• Using ceramic package resulting

in high reliability

• Small and low profile

How to Order

CX4025SB 26000 F0 F L J ZZ

①

②

③ ④ ⑤⑥ ⑦

①Code

②Typical

Frequencies

Code Freq.(kHz)

12000

12000.000

13000

13000.000

16000

16000.000

20000

20000.000

③Load

Capacitance

F0

10pF

④Frequency

Stability

1010

-6

F

⑤Operating

Temperature Range

L

30°C

to

85°C

⑥Frequency

Temperature Stability

J

1510

-6

Applications

• Mobile Communications, Bluetooth,

Wireless LAN

Code

26000

32000

40000

Freq.(kHz)

26000.000

32000.000

40000.000

*Please inquire about frequencies other than the above.

Pb Free

RoHS Compliant

Specifications

Items

Frequency Range

Overtone Order

Frequency Tolerance

Frequency Temp. Characteristics

Symbol

f

_nom

OT

f

_tol

f

_tem

R1

DL

CL

T

_use

T

_stg

Specification

12000 to 40000

Fundamental

10

15

Table 1

Table 2

10

30

to

85

40

to

85

Units

kHz

––––

10

-6

10

-6

ohm

W

pF

°C

@ 25°C

Remarks

ref.@ 25°C Over Operating Temp. Range

⑦Special

ZZ

Custom Specification

Motional Series Resistance

Level of Drive

Load Capacitance

Operating Temp. Range

Storage Temp. Range

* Please inqurie about specifications other than the above.

Table1 Motional Series Resistances

Frequency Range

12000 to 19999kHz

20000 to 40000kHz

Motional Series Resistance

80

50

Units

ohm

Table2 Level of Drive

Frequency Range

12000 to 40000kHz

Level of Drive

10 (100 max.)

Units

W

Dimensions

4.00.2

#4

#3

2.50.2

(Unit : mm)

Recommended Land Pattern

(Unit : mm)

4-R0.2

0.750.1

1.6

0.45

2.75

#1

#2

2

0.7

#1

#2

0.9

CONNECTION

#4 (TOP VIEW) #3

HOT

GND

1.4

3.0

1.4

#4

1.0

#3

1.0

HOT

#1

GND

#2

GND needs to be

connected to the case.

1.15

CX4025SB32000F0FLJZZ Related Products

	CX4025SB32000F0FLJZZ	CX4025SBFREQ2F0FLJZZ	CX4025SB40000F0FLJZZ	CX4025SB13000F0FLJZZ	CX4025SB16000F0FLJZZ	CX4025SB12000F0FLJZZ	CX4025SB20000F0FLJZZ	CX4025SB26000F0FLJZZ	CX4025SBFREQ1F0FLJZZ
Description	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 32 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz - 40 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 40 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Parallel - Fundamental Quartz Crystal, 13MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 16 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 26 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 19.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.0015%	0.0015%	0.0015%	0.0015%	0.0015%	0.0015%	0.0015%	0.0015%	0.0015%
frequency tolerance	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm
load capacitance	10 pF	10 pF	10 pF	10 pF	10 pF	10 pF	10 pF	10 pF	10 pF
Manufacturer's serial number	CX4025SB	CX4025SB	CX4025SB	CX4025SB	CX4025SB	CX4025SB	CX4025SB	CX4025SB	CX4025SB
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
physical size	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)
Series resistance	50 Ω	50 Ω	50 Ω	80 Ω	80 Ω	80 Ω	50 Ω	50 Ω	80 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maker	Kyocera	-	-	-	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Nominal operating frequency	32 MHz	-	40 MHz	13 MHz	16 MHz	12 MHz	20 MHz	26 MHz	-
