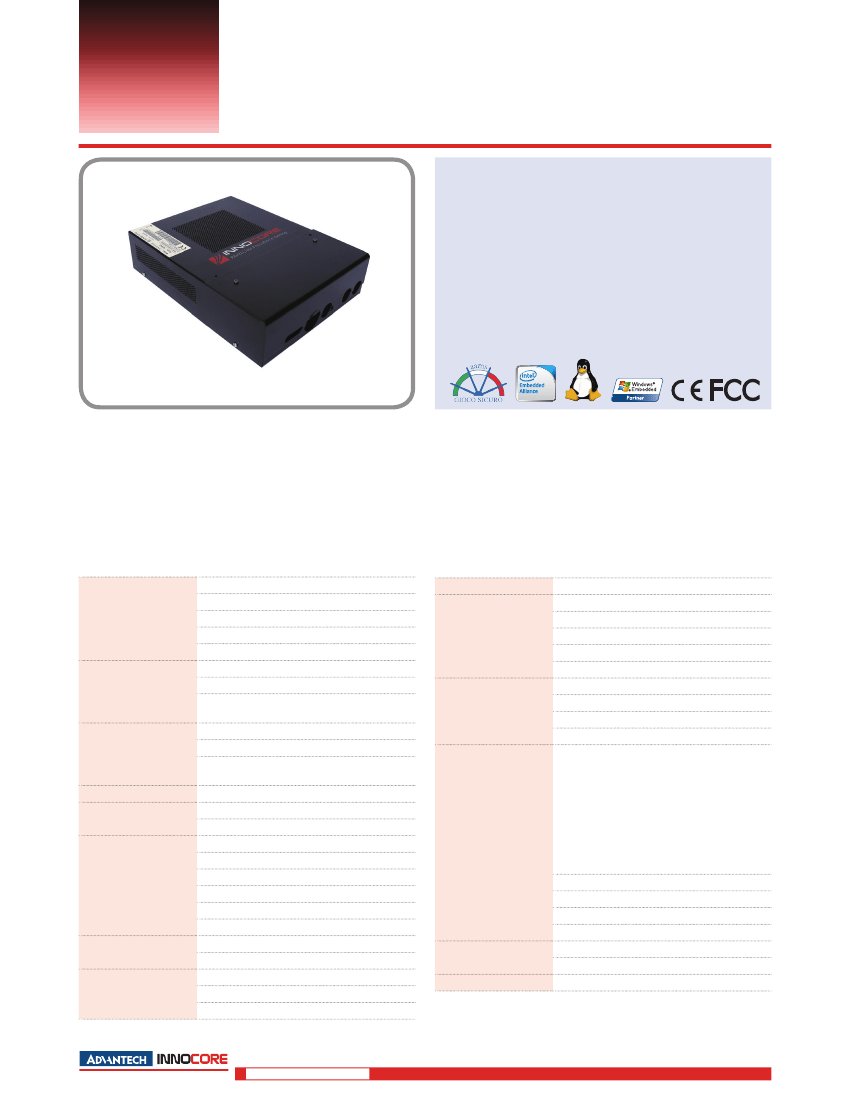

DPX -E110-6a
®
Features
Fanless System
Gaming Platform for Italian
Comma 6a Market
Complete platform for gaming machines
Full AAMS Software Protocol provided
Low power Intel ATOM chipset
Security and cable access to meet Comma 6a
Integrated Smart card reader
Introduction
The DPX
®
-E110-6a is a complete industrial computer system for the Italian gaming market designed especially to comply with the requirements of
AAMS and Comma 6a legislation. The system offers good performance and very low power with the cost effective Intel
®
ATOM™ processor. In its typical
configuration, the system is fanless and supports single or dual monitors. A high performance graphics card may be added for even higher performance.
A full set of I/O, COMs and security features designed specifically for Italy is included making the DPX
®
-E110-6a an ideal integrated platform for next
generation slot machines.
Feature Summary
Intel
®
ATOM™ performance & low power
Intel 945GSE chipset
System
512MB DDR2 SDRAM
1 x Compact Flash socket (internal)
Audio
JAMMA 28 way edge card interface
I/O
Comma 6a COM connector
AAMS control device reader (ISO:7810, 7816 smart
card)
Integrated Intel GMA 950 (Gen. 3.5)
Video
Security
Enclosure
Dual monitor support
Optional low profile high performance VGA card
(Nvidia or ATI).
Case and cabinet intrusion monitoring.
Steel
Passive cooling system (without VGA card)
Edge-to-edge drivers and API/SDK.
AAMS smart card management
Software
AAMS fiscal counter management
AAMS CCTALK
AAMS Comma 6a PDA interface
Power down and intrusion monitoring.
Intel
®
ATOM™ N270 1.6GHz (1.6/533 2.5W)
Intel
®
945GSE + ICH7M
1 x SODIMM socket
Memory
512MB DDR2 533MHz
Up to 2GB*
Sound
Watchdog Timer
External Ports
Storage
Video
BIOS
AMI PCI/PnP/ACPI BIOS
Integrated - Intel GMA 950
Dual independent monitor support *
Video Option*
Nvidia GeForce 8400GS/256
Low profile high performance card
CompactFlash Type I/II **
SATA port **
Smart Card:**
AAMS ISO:7810, 7816 smart card socket.
1) JAMMA 28 way edge connector:
2 x CCTalk
Cabinet Door open
Hopper
Coin In/Out
Buttons inputs (7)
LAMP outputs (7)
Speaker (line L&R)
Refill key
Service key
2) Comma 6a COM connector
3) VGA monitor connector
4) DVI monitor connector *
5) Serial RS232 (Touchscreen) *
AC97 Audio Codec
2 channel line level outputs on JAMMA
Programmable time-out of 1-255 seconds
CPU/Chipset
www.advantech-innocore.com
Innovations in Gaming Computing
All product specifications are subject to change without notice
See overleaf for continued specification
Last updated : 16-Sep-2011
DPX
®
-E110-6a
1) Two intrusion detection input lines (used for ‘case
open’)
Intrusion Detection
Operates with and without system active
(battery backed)
2) Door open input on JAMMA
System Health Monitoring
Power
Environment
Measurement of CPU core temp. With thermal trip.
ATX or Pseudo AT mode
External PSU.
Operating Temperature: 0 – 40 ºC TBC
Storage Temperature: -20 – 85 ºC
EMC: CE, FCC Class A
Approvals
RoHS, WEEE
AAMS Comma 6a
Dimensions
DPX-E110-6aS: 198 x 237 x 65
DPX-E110-6aT: TBC (with optional VGA card)
Notes:-
* - Optional items are subject to an MOQ, price change and are factory configured at
time of order.
** - User Accessible (Internally mounted behind rear cover plate under battery backed
intrusion detection)
Benefits
Meets Italian regulations
Low Power (CPU power 2.5W, overall power 15W)
Single integrated solution
Small size – 198 x 237 x 65mm (without optional VGA card)
Low Cost
OEM Customization and Product
Development
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Advantech-Innocore is part of the Advantech Co., Ltd. Group of Companies.
Specifications subject to change. E&OE.
Copyright © 2011 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.

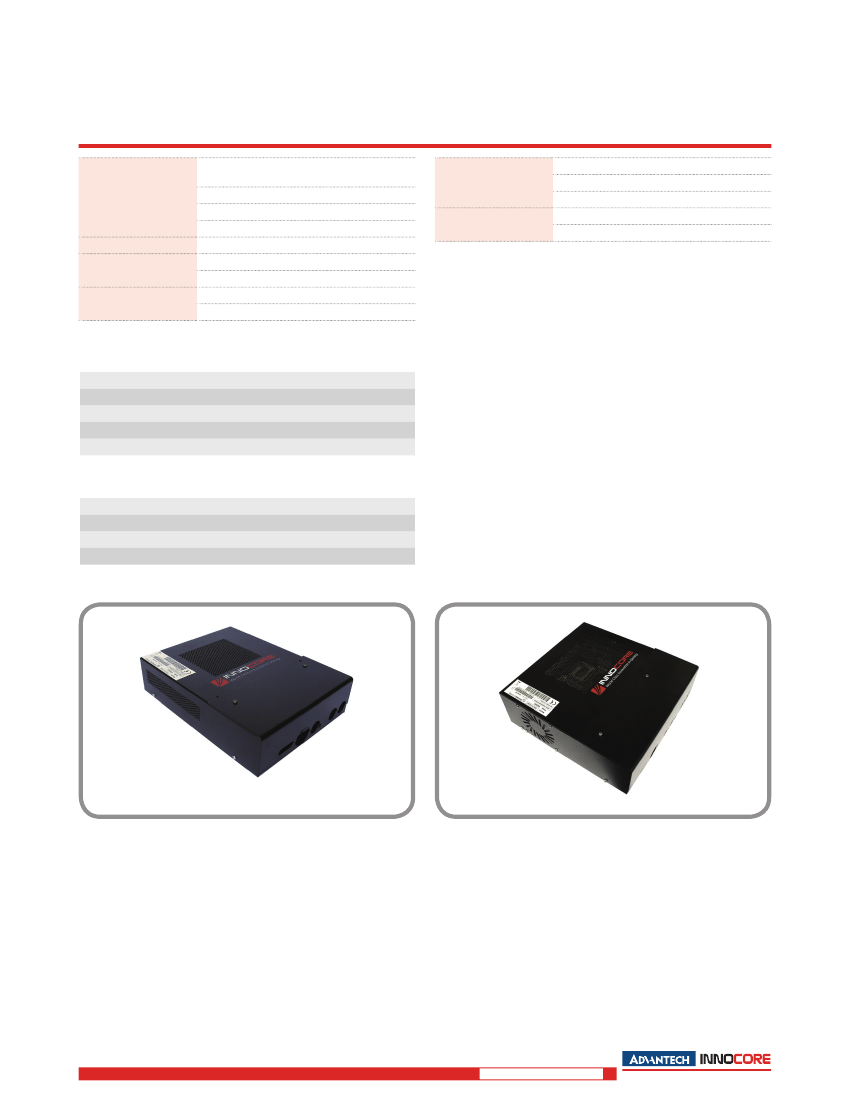

Optional Hardware
Edge card connector
Compact Flash cards
External power supply
VGA card
Short Enclosure (DPX-E110-6aS)
Tall Enclosure (DPX-E110-6aT)
