DPX -S430
®
AMD
®
Embedded R-Series (Fusion)

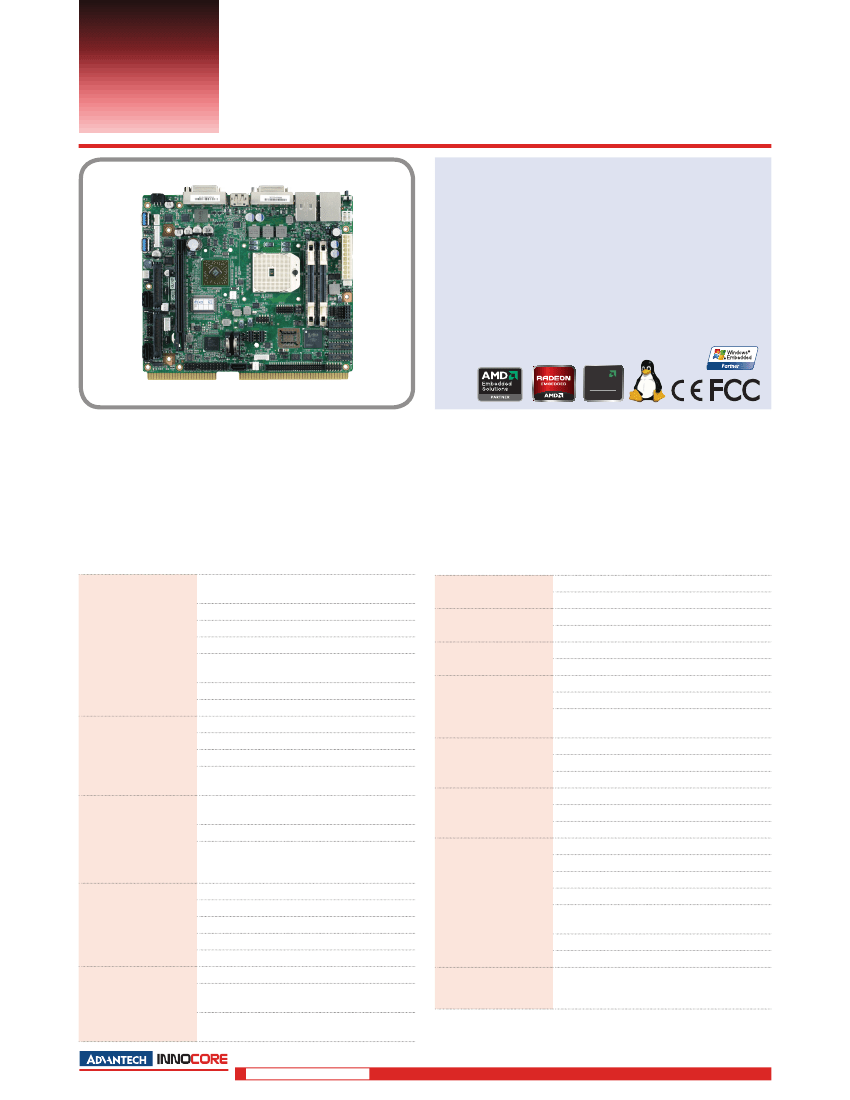

Gaming Platform
Features
Very high performance AMD platform
Comprehensive gaming features
High performance integrated or PCI-Express graphics
Easy integration for gaming applications
Quad monitor supported
VESA DisplayPort v1.2 supported
AMD
EMBEDDED
SOLUTIONS
R
-
SERIES APU
Introduction
The DPX
®
-S430 is a complete integrated gaming platform on one board. AMD’s latest Fusion chipset on the DPX
®
-S430 consists of a choice of several
high performance APUs with "Discrete-level Graphics". The integrated graphics core out-performs many discrete graphics ASICS and represents a
significant step up in what chipset graphics can do. Furthermore the chipset graphics can output to 4 independent monitors and supports DisplayPort
1.2 daisy-chaining topology whereby two monitors are be driven from one DisplayPort output. A full feature set of I/O and COMs designed specifically
for gaming devices is also included making the DPX
®
-S430 an ideal integrated platform for many high end gaming, amusement and kiosk applications.
Feature Summary
AMD Embedded R-Series Low Power Dual and Quad
Core APUs
Highest performance chipset graphics system
DDR3-1600, 2 SODIMMs
System
2 x Gigabit Ethernet LAN
2 x Compact Flash sockets, 2 x C-Fast™ sockets,
2 x SATA DOM sockets
Audio (on-board 3 channel amp)
4096 kB SRAM (NVRAM), 1MB ROM, EEPROM
10 x Serial Ports (RS232/TTL/CCTalk/RS485 )
4x USB 3.0, 8 x USB 2.0
I/O
GPIO/iButton
®
32 inputs and 32 outputs
(6 Meter outputs with disconnect detect)
Integrated – AMD next generation "Devastator"
Radeon 7000 Series Direct X 11 Graphics core
Video
Dual, triple and Quad monitor support
Full speed PCI-Express X16 v2.0 slot to
support a
range of PCI-Express graphics cards;
AMD, Nvidia
®
, S3 Graphics
TPM security device on board
Intrusion switch inputs (6 dedicated)
Security
BIOS customization
1 x iButton
®
socket
1 x Security ROM socket
Edge-to-edge drivers and API/SDK.
Software
Code portability through consistent API with other
Advantech-Innocore boards.
Range of Advantech-Innocore software products for
gaming
www.advantech-innocore.com
Innovations in Gaming Computing
All product specifications are subject to change without notice
CPU/Chipset
Memory
BIOS
AMD R-Series Dual and Quad Core APUs
AMD A75 FCH
2 x SODIMM sockets
Up to 16GB DDR3 -1600 MT/s SDRAM
AMI APTIO UEFI BIOS
BIOS can be write protected
2 x Analog VGA (15 pin D-Sub)*
2 x DVI-D (MicroCross™)
1 x DisplayPort v1.2 with 5.4Gb/s link speed and
daisy chaining
2 x Ethernet Gigabit LAN
Full duplex operation
Wake-On-LAN capability
2 x CompactFlash Type I/II (Flash/MicroDrive)
Video Ports
LAN
Storage
2 x C-Fast™ socket on underside
3 x SATA 3 for HDD, SSD or SATA DOM
5 x RS232 Serial, 16550 compatible
2 x CCTalk/RS232
2 x RS232/TTL
Ports
1 x RS232/485
12 x USB (2 USB 3.0 and 2 USB 2.0 on front panel,
6 USB 2.0 and 2 USB 3.0 on board headers)
2 x I2C on board header
Audio out (SPKR, SPDIF, line out, line in)
Bi-Directional, programmable GPIO header for
iButton
®
, special purpose device or security
module
iButton/GPIO
*VGA#2 and DVI-D#2 Option - TBC
See overleaf for continued specification
Last updated : 22-May-2012
DPX
®
-S430
32 ESD protected inputs
Discrete I/O
32 OC Outputs (500mA, 50V)
(of which 6 I/O ports can be configured as meter
outputs with disconnect detect)
HD Audio
On board 13W + 13W + 13W Class D audio
amps with FL, FR, LF speaker connections
1 x Socket for 1MB EPROM/OTPROM PLCC32 (PCI,
Bootable)
4096kB fast SRAM (2 banks) on PCI bus
Battery state software readable
TCPA/TPM 1.2 compliant security device on board.
Programmable time-out of 1-255 seconds
"Always on" design (default 255 seconds)
32kB user EEPROM (option for larger)
Six Intrusion detection input lines
Operates with and without system active
Intrusion Detection
Logs date/time of last 254 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
System Health
Monitoring
Power Fail Detect
Measurement of CPU core temp. With thermal trip.
PWM fan for APU.
External sensor input for advanced warning of AC
power fail
1) Up to 240 Bytes of PCI-based I/O expansion
available through DirectPCI + interface on
board header.
2) PCI-Express x16 graphics card
Power
Environment
Approvals
Dimensions
ATX or AT mode
Operating Temperature: 0 ~ 50° C TBC
Storage Temperature: -20 ~ 85° C
EMC: CE, FCC Class A
RoHS, WEEE
170 x 200 mm (6.7 x 7.9")
Sound
Security ROM
SRAM
TPM
Watchdog Timer
EEPROM
Expansion
Optional Hardware
Full system chassis
Range of PCI-Express graphics cards
I/O connector breakout board
Edge card connector set
Compact Flash cards, SATA DOM, SSD storage devices
iButtons
®
, iButton carrier
OEM Customization and Product
Development
Advantech-Innocore is part or the Advantech Co., Ltd. Group of Companies.
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Specifications subject to change. E&OE.
Copyright © 2012 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
Benefits
Best in class integrated and expandable graphics
Single integrated solution
Designed for the Gaming Industry
Backwards compatible with DPX
®
-S series boards
Small size
Low power
Long lifecycle
Front I/O

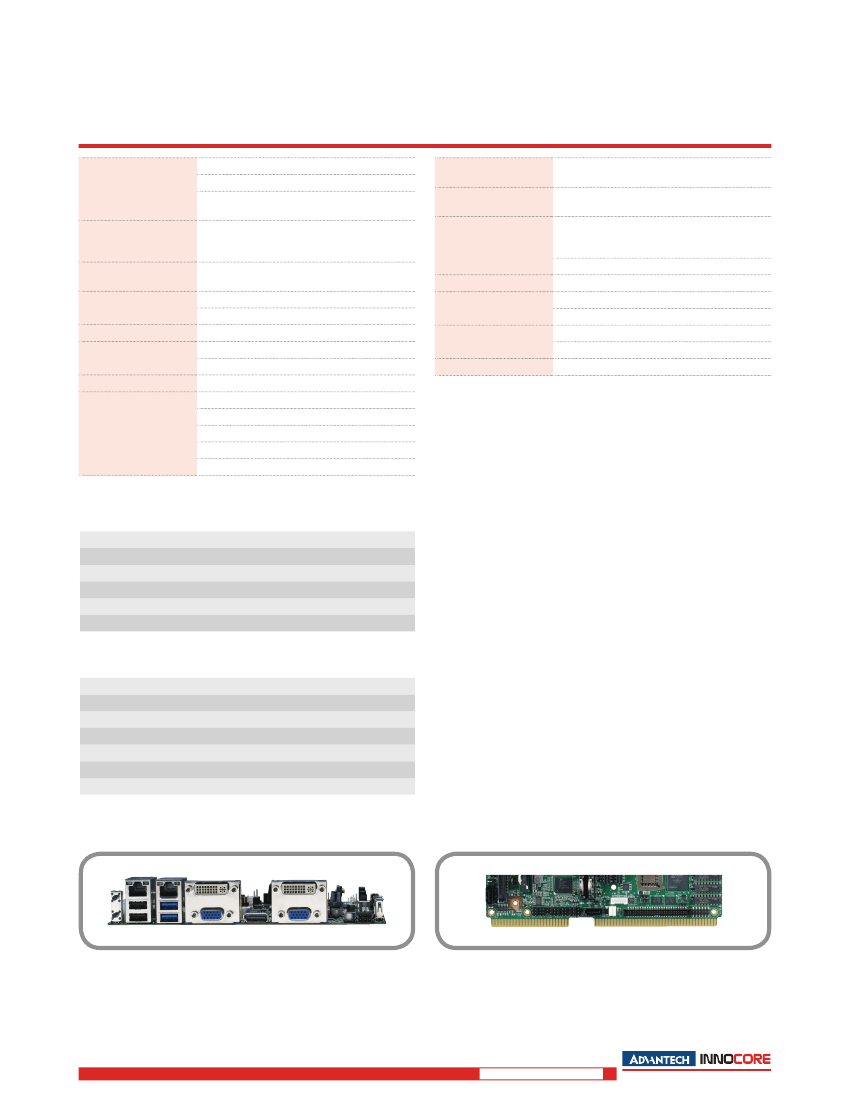

Rear I/O
www.advantech-innocore.com
Innovations in Gaming Computing
