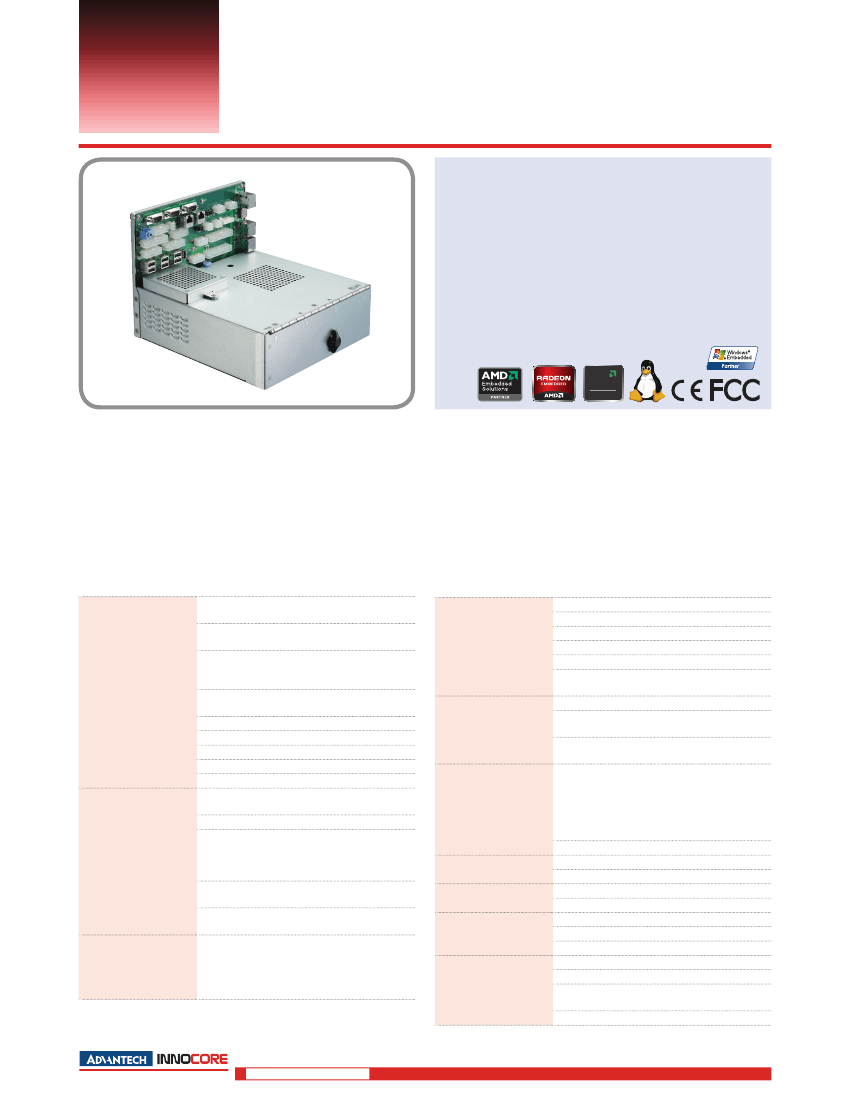

DPX -SC710
®
Preliminary
AMD
®
Embedded R-Series Gaming Platform
Features
Very high performance AMD platform
Versatile ConnectBus
®
backplane architecture
Comprehensive gaming features
High performance integrated graphics and PCI-Express graphics
module (MXM)
Up to 10 monitors supported
AMD
EMBEDDED
SOLUTIONS
R
-
SERIES APU
Introduction
The DPX
®
-SC710 is a complete integrated gaming platform consisting of an easily serviceable CPU cassette housed in a rugged logic box with a fully
passive backplane and I/O expansion module. AMD’s latest embedded chipset provides a choice of high performance dual and quad core APUs with
"Discrete-level Graphics". The chipset graphics (AMD Radeon HD7000 series) can output to 4 independent monitors and supports DisplayPort 1.2. In
addition the MXM graphics card slot allows the DPX-SC710 to be fitted with a selection of discrete high performance graphics modules. The MXM slot
ensures the system is "future proof"; ready for the next generation of graphics technology. A full feature set of I/O and COMs designed specifically for
gaming devices is also included making the DPX-SC710 an ideal integrated platform for many high end gaming, amusement and kiosk applications.
Feature Summary
Rugged "logic box" system includes pluggable CPU
cassette housed in a secure enclosure
All cable connections are made through the passive
backplane
3rd Generation ConnectBus
®
architecture - Easily
customized passive backplane (and backplane I/O
expansion module, "BSM")
Removable CPU cassette for easy install, service and
maintenance
AMD Embedded R-Series Dual and Quad Core APUs
Long life cycle 5 years availability
DDR3-1600, 2 SODIMMs up to 16GB
2 x Gigabit Ethernet LAN
HD Audio 7.1 channel
Integrated – AMD Radeon 7000 series graphics
engine
Dual, triple and quad monitor support from APU
Three DP++ interfaces support DisplayPort, DVI,
HDMI and VGA
Incl. one DP v1.2 with MST (multi-monitor, daisy
chain) support
Direct X 11, OpenGL 4.2, OpenCL, DirectCompute
support
UVD3 Multimedia hardware decode and
encode
Full speed PCI-Express X16 MXM v3.0 slot to
support optional high performance graphics cards;
AMD Radeon E6000 series, Radeon E8000 series,
Nvidia
®
.
Field or factory upgradeable
TPM security device on board
Intrusion switch inputs (8 dedicated)
BIOS customization
1 x iButton
®
socket (option)
1 x Security ROM socket
Lockable logic box (accepts most casino specified
locks)
Edge-to-edge drivers and Software API/SDK.
Code portability through consistent API with other
Innocore boards
Range of Advantech-Innocore software products for
Gaming
AMD Embedded R-Series FS1r2 Accelerated
Processing Unit (APU)
Dual and Quad Core APUs up to 2.7GHz (3.2GHz
Turbo)
Up to 4MB L2 cache
Low power (35W) APUs
AMD A75 FCH
2 x SODIMM sockets
Up to 16GB DDR3 1600 MT/s SDRAM system RAM
AMI APTIO UEFI BIOS
BIOS can be write protected
2 x Ethernet Gigabit LAN
Full duplex operation
Wake-On-LAN capability
2 x C-Fast™ sockets
Drive bay for 2.5" format HDD or SSD.
2 x SATA 3 (up to 6Gb/s) headers for HDD, SSD or
SATA DOM
1 x eSATA front access
Security
System
Software
CPU/Chipset
Video (Integrated)
Memory
BIOS
LAN
Video (Discrete)
Storage
www.advantech-innocore.com
Innovations in Gaming Computing
All product specifications are subject to change without notice
See overleaf for continued specification
Last updated : 28-Jan-2013
Preliminary

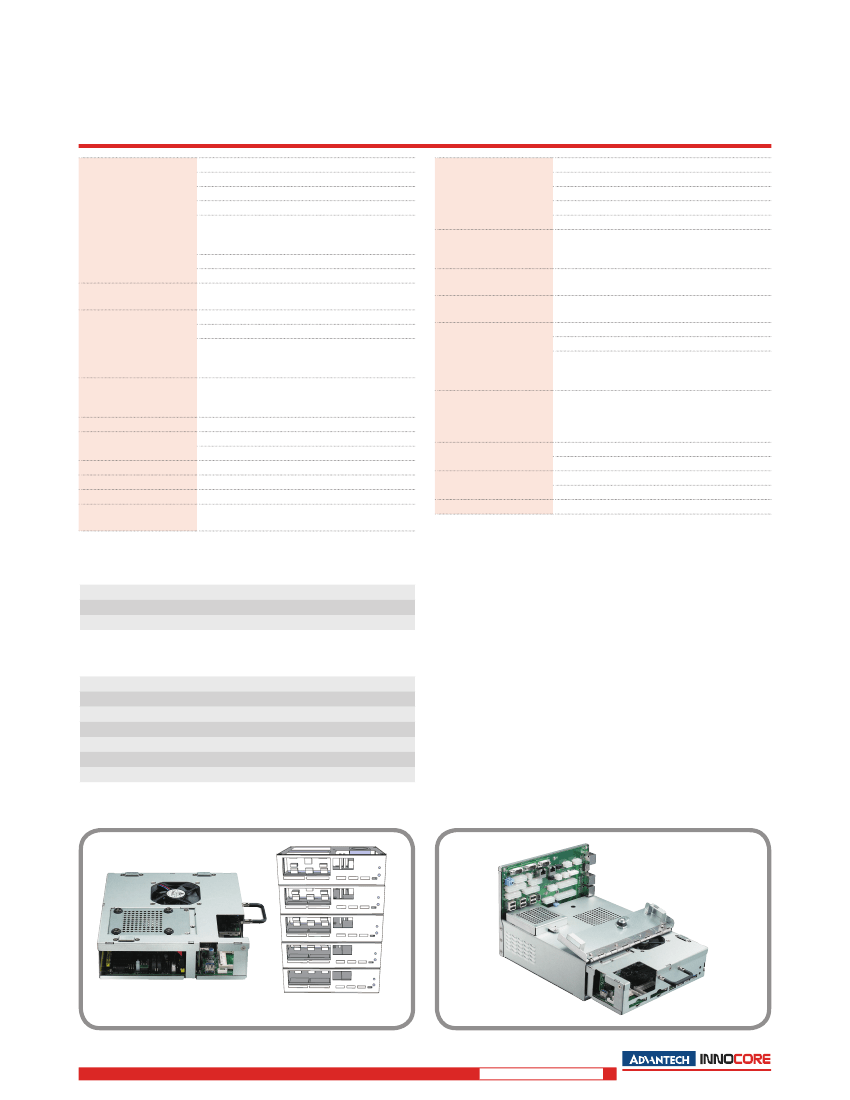

DPX
®
-SC710
3 x RS232 Serial, 16550 compatible
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
14 x USB (2x USB 3.0 on front panel, 1x USB 3.0
+ 4x USB 2.0 on board headers, 7x USB 2.0 on
backplane)
2 x I
2
C, 1x SPI interfaces through backplane
24 channel LED drive output
Bi-Directional, programmable GPIO header for
iButton, special purpose device or security module
32 ESD protected inputs
32 OC Outputs (500mA, 50V)
(of which 6 I/O ports can be configured as meter
outputs with disconnect detect, 1 port 24V DC high
current drive for solenoid drive)
24 channel LED Intelligent PWM output driver, 256
brightness levels, programmable group brightness,
blinking, (8 ch. with 350mA, 16 ch. 100mA)
HD 7.1 channel Audio
4096kB fast SRAM (2 banks)
Battery state software readable
TCPA/TPM 1.2 compliant security device on board.
Programmable time-out
32kB user EEPROM (option for larger)
Unique serial number devices on motherboard and
main chassis (BSM)
8x Intrusion detection input lines
Operates with and without system active
Logs date/time of last 254 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
Measurement of CPU core temp. with thermal trip.
PWM fan control for APU, MXM, system fans, and 2
other fans through backplane.
Dual 7- segment LED display for POST and
diagnostic codes
External sensor input for advanced warning of AC
power fail
1) 2 x I2C, SPI
2) PCI-Express x16 MXM format graphics card
3) Backplane I/O Expansion module (BSM) provides
customizable expansion (e.g LED PWM drive,
custom high current output, eeprom etc)
12V DC single input
Intelligent power control
Cassette/Backplane "insertion-sense" and protection
for accidental cassette removal
Operating Temperature: 0 ~ 50° C TBC
Storage Temperature: -20 ~ 85° C
EMC: CE, FCC Class A
RoHS, WEEE
254 x 235 x 191 mm (10.0" x 9.25" x 7.5")
Intrusion Detection
Ports
System Health
Monitoring
Diagnostic LED display
Power Fail Detect
iButton/GPIO
Discrete I/O
Expansion
LED drive
Sound
SRAM (NVRAM)
TPM
Watchdog Timer
EEPROM
Asset Tag
Power
Environment
Approvals
Dimensions (D x W x H)
Optional Hardware
Range of PCI-E MXM graphics cards
Compact Flash cards, SATA DOM, SSD storage devices
iButtons
®
, iButton carrier
OEM Customization and Product
Development
Advantech-Innocore is part of the Advantech Co., Ltd. Group of Companies.
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Specifications subject to change. E&OE.
Copyright © 2013 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
Benefits
Best in class integrated and expandable graphics
Single integrated solution
Designed for the Gaming Industry
Serviceable CPU cassette and passive backplane
Small size
Low power
Long Lifecycle
CPU Cassette
DPX-SC710 System
Factory and service friendly
stackable cassette design
www.advantech-innocore.com
Innovations in Gaming Computing
Linux and Android
