EWM-W130M
Revision History
Rev.
Date
History
1.0
2012/1/3
1.
1 release
st
Advantech reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or
design. Information furnished by Advantech is believed to be accurate and reliable. However, Advantech does not assure any liability
arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither
does it convey any license under its patent rights nor the rights of others.
Copyright © 1983-2012 Advantech Co., Ltd. All rights reserved.
Specifications subject to change without notice, contact your sales representatives for the most update information.
REV 1.0
Page 3 of 12
Jan. 3, 2012
EWM-W130M
1.
Overview

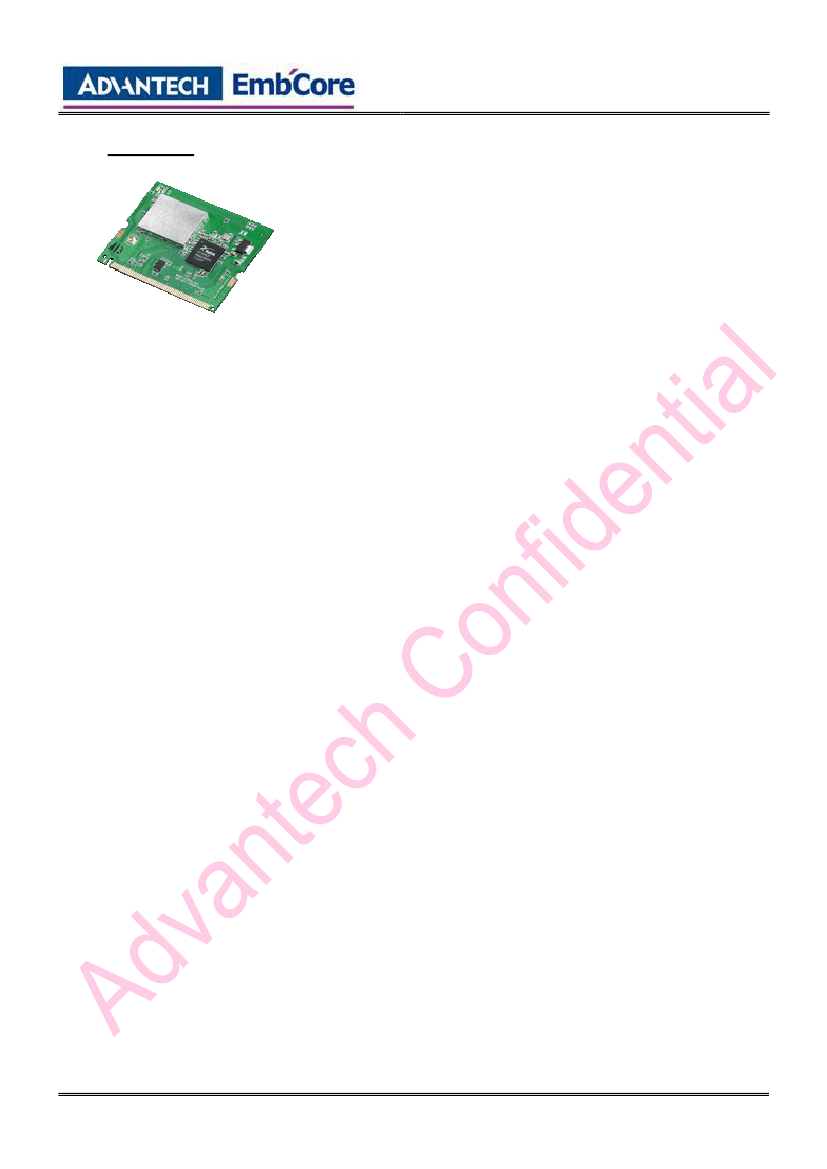

802.11 b/g/n Single-Band Mini PCI Module
Chipset: Ralink RT3062
Host Interface: Mini PCI Type IIIA
Antenna: 2 antennas to support 2T2R
Output Power up to 17dBm
Enhanced wireless security: 64/128-Bit WEP Key, WPA, WPA2
Windows 2000/ XP/Vista/Win7, Linux2.6 above
Specifications subject to change without notice, contact your sales representatives for the most update information.
REV 1.0
Page 4 of 12
Jan. 3, 2012
EWM-W130M
2.
Specification
Chipset
Interface Type
Dimensions
Weight
Frequency Band
Ralink, RT3062 ( MAC/BBP/RF)
Mini PCI Interface Type IIIA
59.75 x 44.6 x 3.55 (mm)
7g
802.11b
ISM band 2.400 ~ 2.484GHz (subject to local regulations)
802.11g
ISM band 2.400 ~ 2.484GHz (subject to local regulations)
802.11n draft
ISM band
2422 – 2452MHz (channel BW=40MHz)
2400 – 2483.5MHz (channel BW=20MHz)
802.11b
USA and Canada – 11
Most European countries – 13
Japan – 14
France – 4
802.11g
USA and Canada – 11
Most European countries – 13
Japan – 14
HT20
USA and Canada – 11
Most European countries – 13
Japan – 13
HT40
USA and Canada – 3~9
Most European countries – 3~9
802.11b
Direct Sequence Spread Spectrum (DSSS)
802.11g
Orthogonal Frequency Division Multiplexing (OFDM)
HT20
Orthogonal Frequency Division Multiplexing (OFDM)
Multiple-input/multiple-output (MIMO)
HT40
Orthogonal Frequency Division Multiplexing (OFDM)
Multiple-input/multiple-output (MIMO)
802.11g
64 QAM, 16 QAM, QPSK, BPSK
802.11b
CCK, DQPSK, DBPSK
HT20, HT40
64 QAM, 16 QAM, QPSK, BPSK
802.11b
11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range
802.11g
54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range
HT20
Refer to HT20 output power table
HT40
Refer to HT40 output power table
Two antenna connectors,
Two antenna port for TX/RX.
802.11b
1Tx ~ 15
+/-1.5dBm@ch1~ch14
802.11g
1Tx ~ 14 +/-1.5dBm@ch1~ch14
Page 5 of 12
Jan. 3, 2012
Number of Channel
Spreading
Modulation
Data Rate
Antenna
Transmitted power
