SMA Male to TNC Male Right Angle Precision

Cable 60 Inch Length Using 160 Series Coax

TECHNICAL DATA SHEET

PE309-60

SMA Male to TNC Male Right Angle Precision Cable 60 Inch Length Using 160 Series Coax

Configuration

Connector 1

Connector 2

Cable Type

Impedance, Ohms

Maximum VSWR

SMA Male

TNC Male Right Angle

160 Series

1.4:1

Mechanical Specifications

Cable Assembly

Cable Type

Temperature

Temperature Operating Range, deg C

Size

Length, in [cm]

Diameter, in [mm]

160 Series

-48 to +204

60 [152.4]

0.17 [4.32]

0.038 [17.24]

Blue

1 [25.4]

Weight, lbs [g]

Cable Color

Repeated Minimum Bend Radius, in [mm]

Cable

No of Shields

Dielectric Type

Jacket Material

Jacket Diameter, in [mm]

PTFE

FEP

0.163 [4.14]

Connector 1

Type

Configuration

SMA Male

Straight

Connector 2

Type

Configuration

TNC Male Right Angle

Right Angle

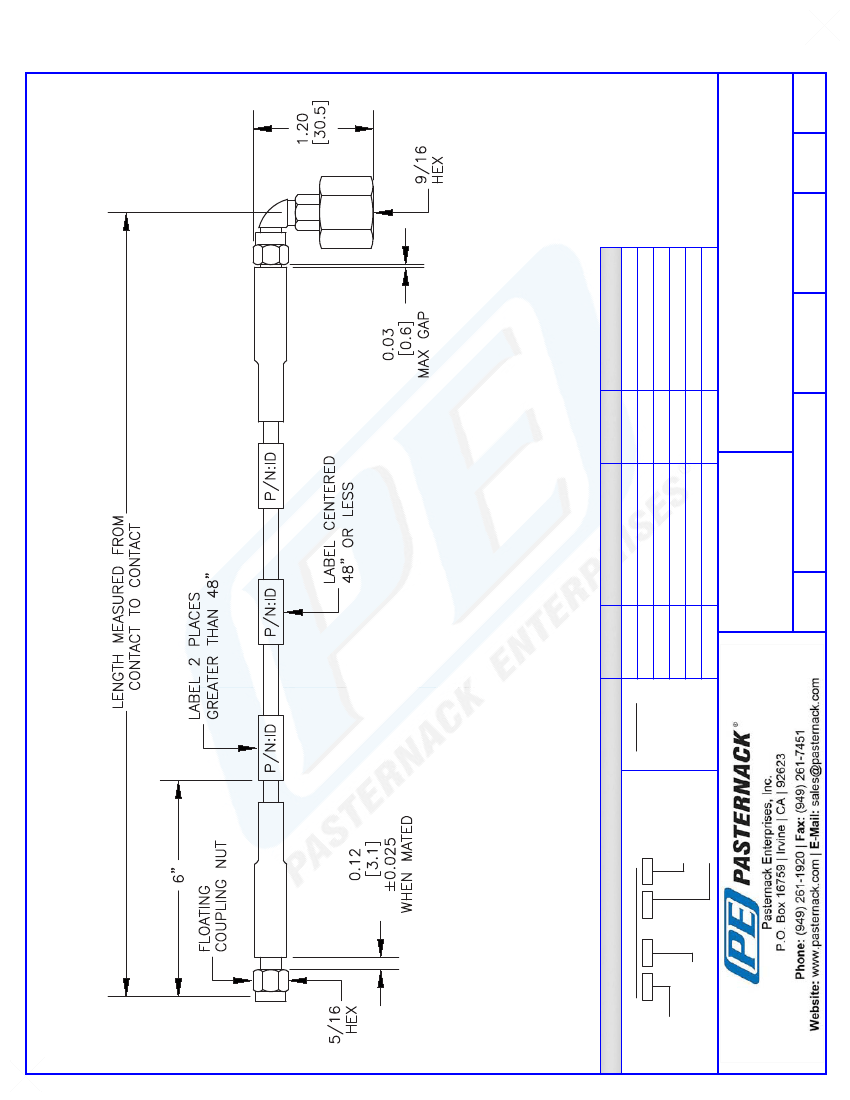

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Male to TNC Male Right Angle Precision Cable 60 Inch Length Using 160 Series Coax

PE309-60

PE309-60 REV
